Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Transmission - Remove - Transmission Replacement
  2. GM4861696Courtesy of GENERAL MOTORS COMPANY

    EN-42386-A  flywheel holding tool (1) @ Automatic Transmission Flex Plate (2) - Install

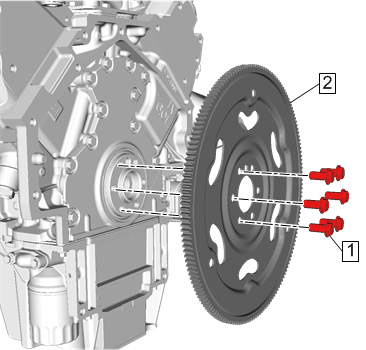

  3. GM4866651Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Flex Plate Bolt (1) - Remove and DISCARD [6x]

  4. Automatic Transmission Flex Plate (2) - Remove
