Valve Rocker Arm Cover Removal - Right Side

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM1905666Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not remove the oil fill tube from the cover, unless service is required. If the oil fill tube has been removed from the cover, install a NEW tube during assembly.

    Remove - Spark Plug Wire (724).

  2. Remove - Ignition Coil Bracket Bolt (720).
  3. Remove - Ignition Coil Bracket and Ignition Coil (719).
  4. GM1402020Courtesy of GENERAL MOTORS COMPANY

    Disconnect the ignition coil electrical connectors.

  5. Remove the bolts (723), coils (722), and wire harness (721) from the bracket (719), as required.
  6. GM1905668Courtesy of GENERAL MOTORS COMPANY

    Remove the valve rocker arm cover bolts and cover.

  7. Remove and discard the valve rocker arm cover gasket, valve rocker arm cover grommets and valve rocker arm cover bolts if they are serviced with the grommet.
  8. GM1272820Courtesy of GENERAL MOTORS COMPANY

    Remove the gasket (504) from the cover.

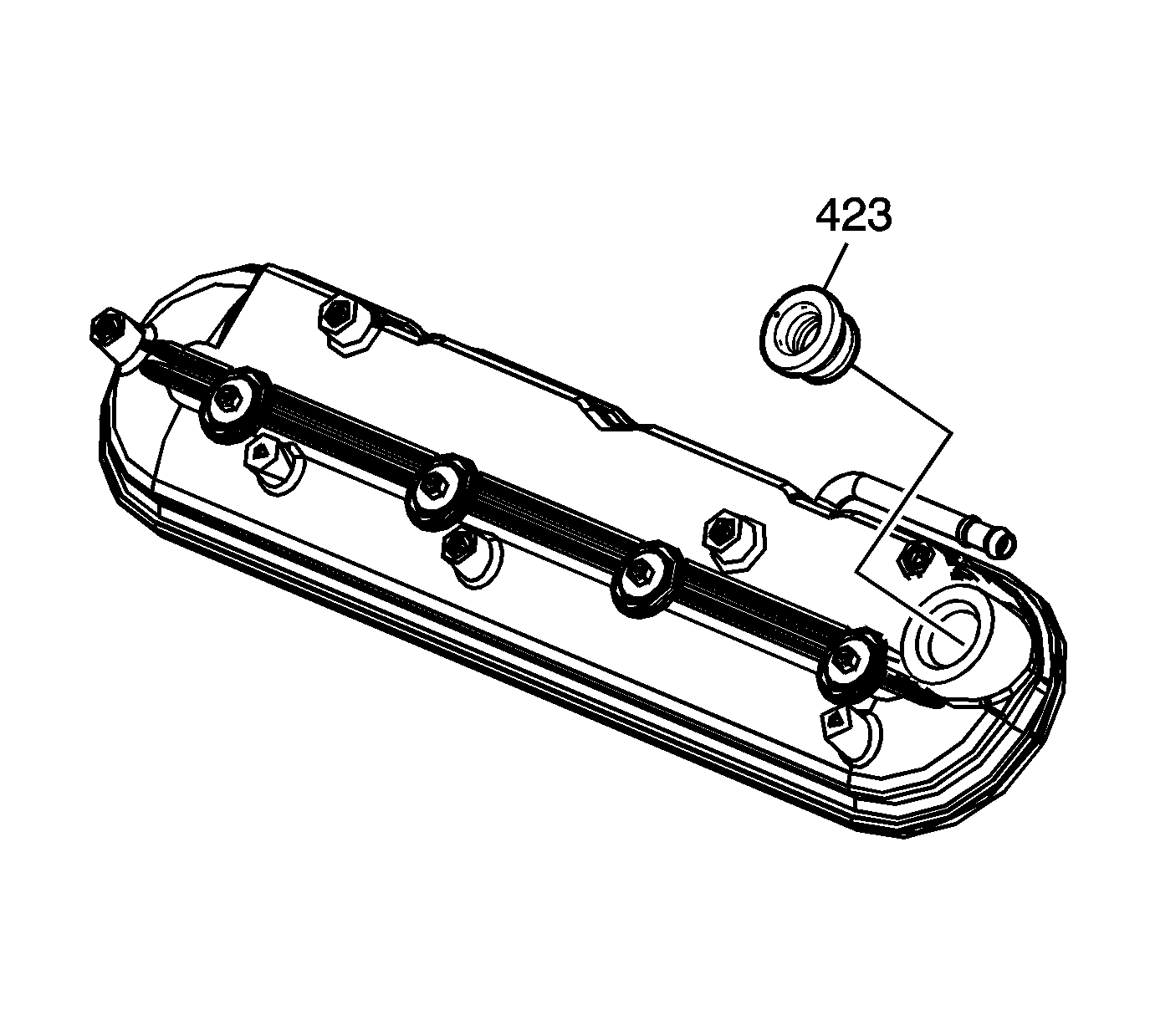

  9. GM1905670Courtesy of GENERAL MOTORS COMPANY

    Remove the grommet (423) from the cover.
