Valve Rocker Arm Cover Installation - Right Side
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
- All gasket surfaces should be free of oil or other foreign material during assembly.
- DO NOT use the valve rocker arm cover gasket again.
Install NEW valve rocker arm cover grommets and use NEW valve rocker arm cover bolts if they are serviced with the grommet.
- Install a NEW gasket (504) into the valve rocker arm cover.

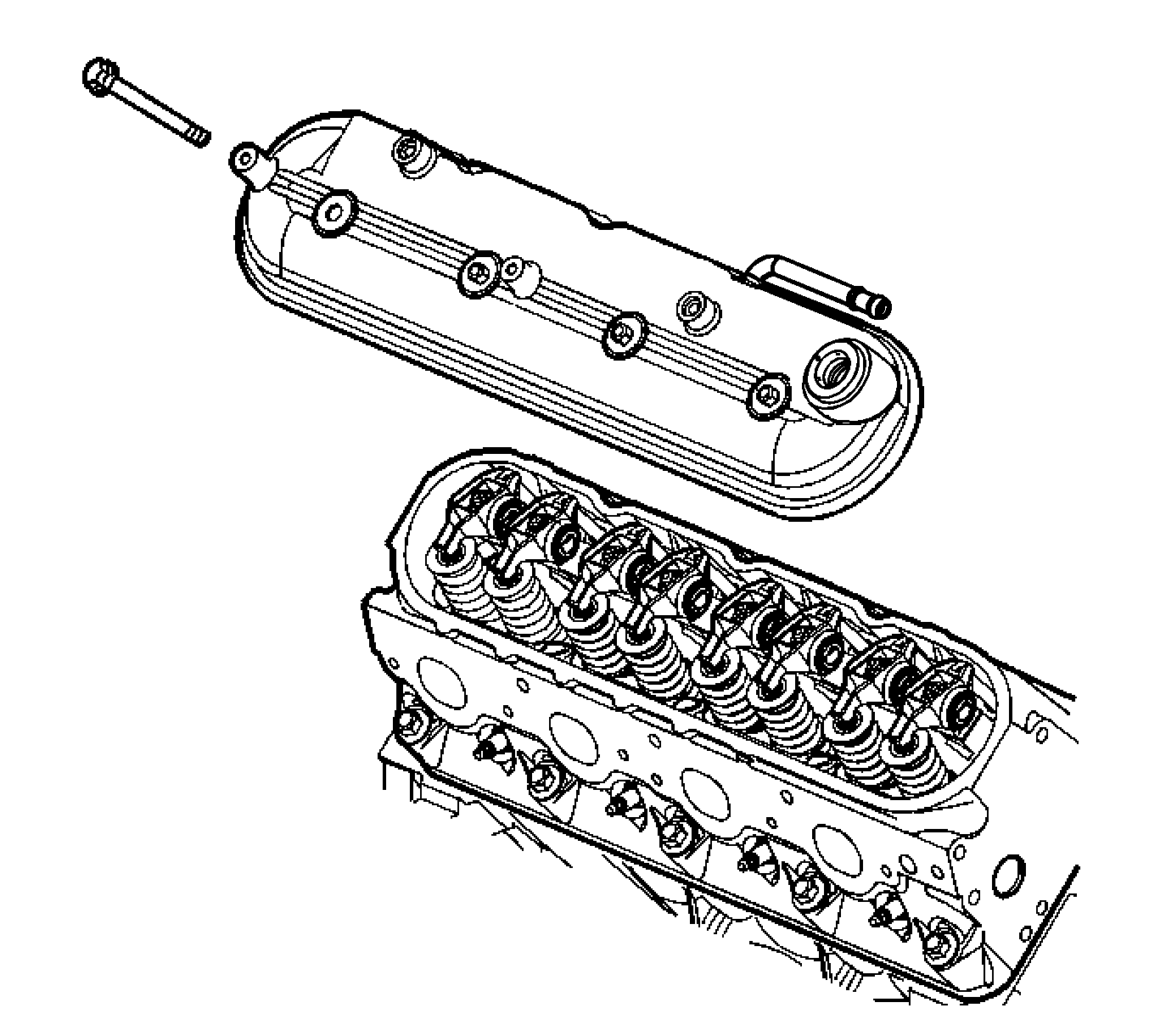

Install the valve rocker arm cover onto the cylinder head.
- Install the cover bolts with grommets and tighten to 12 N.m (106 lb in).

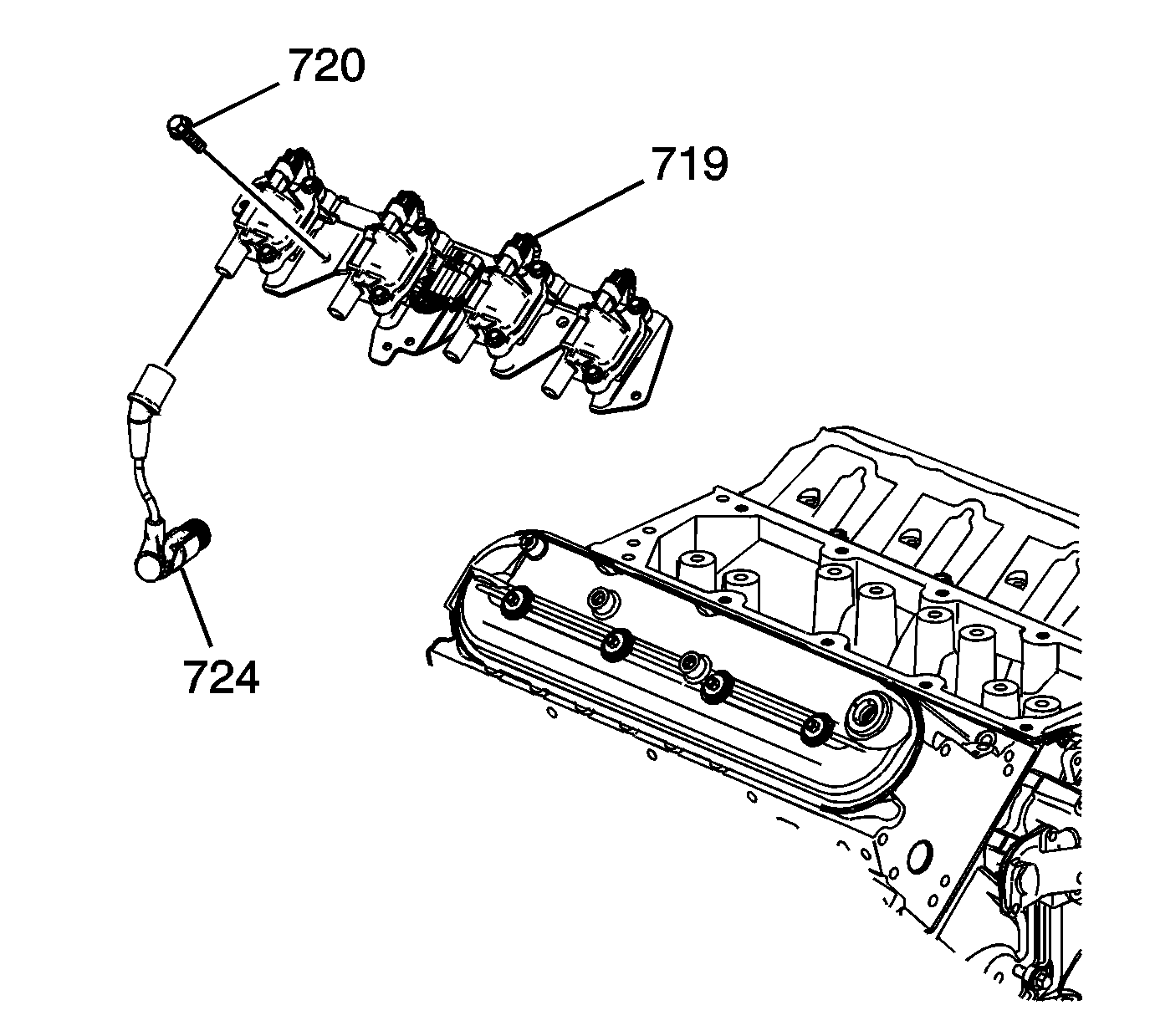

Apply threadlock to the threads of the ignition coil bolts (723). Adhesives, Fluids, Lubricants, and Sealers
- Install the ignition coils (722), wire harness (721), and bolts (723) to the bracket (719). Tighten the ignition coil bolts to 10 N.m (89 lb in).
Apply threadlock to the threads of the ignition coil bracket studs (720). Adhesives, Fluids, Lubricants, and Sealers
- Install the ignition coil and bracket assembly (719) and studs (720). Tighten the bracket studs to 12 N.m (106 lb in).
CAUTION:
Refer to Fastener Caution .
