Valve Rocker Arm Cover Cleaning and Inspection
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
- Do not use the valve rocker arm cover gasket again. Install a NEW gasket during assembly.
- Remove the ignition coils before cleaning the cover in solvent. Do not submerge the ignition coils in solvent.
Inspect the grommet.

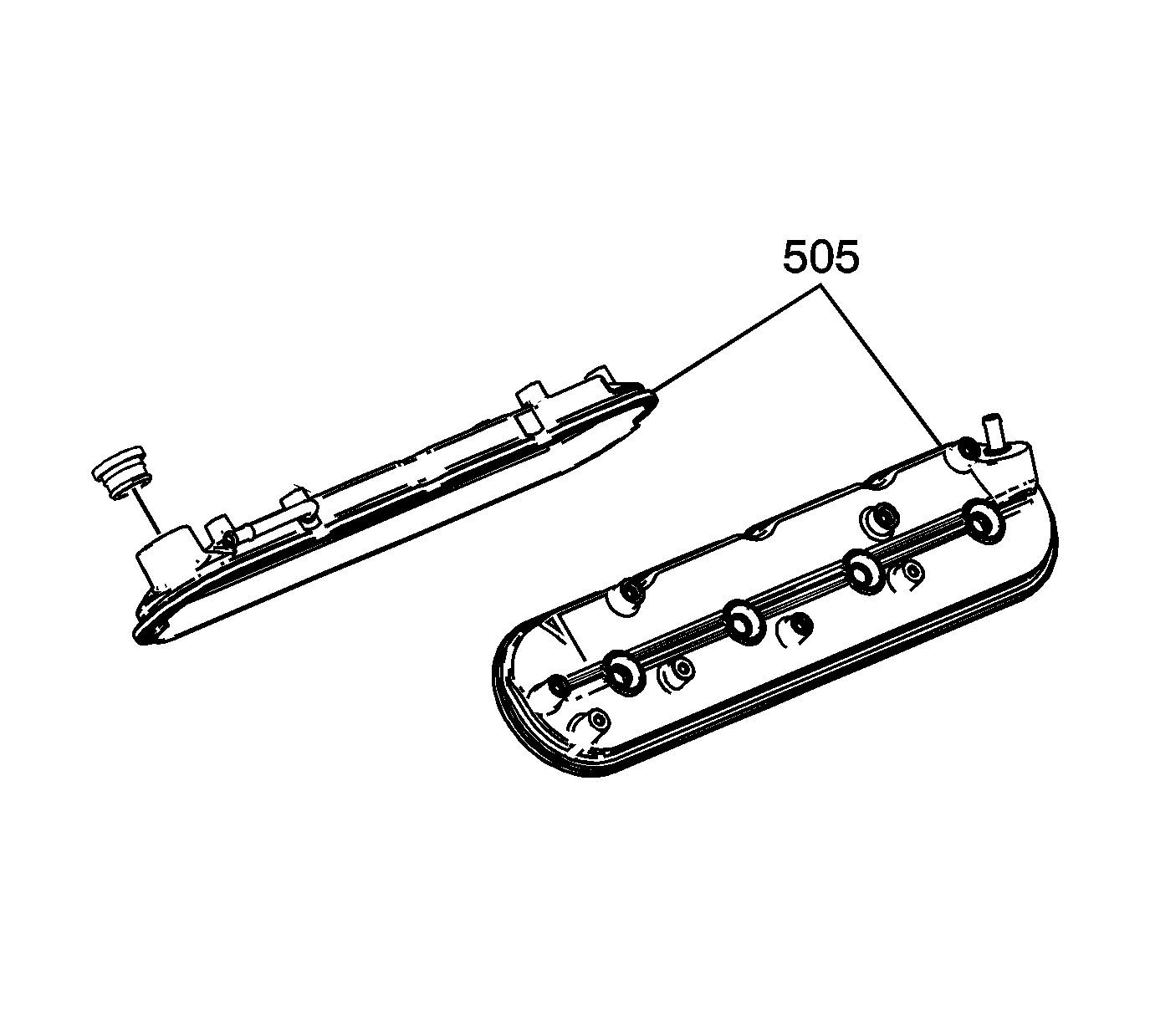

- Inspect the covers (505) for the following conditions:
- Scoring or damage to the gasket surfaces
- Ventilation system passages for restrictions
- Threaded bolt holes for damage or debris
