Exhaust Manifold Removal - Left Side
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

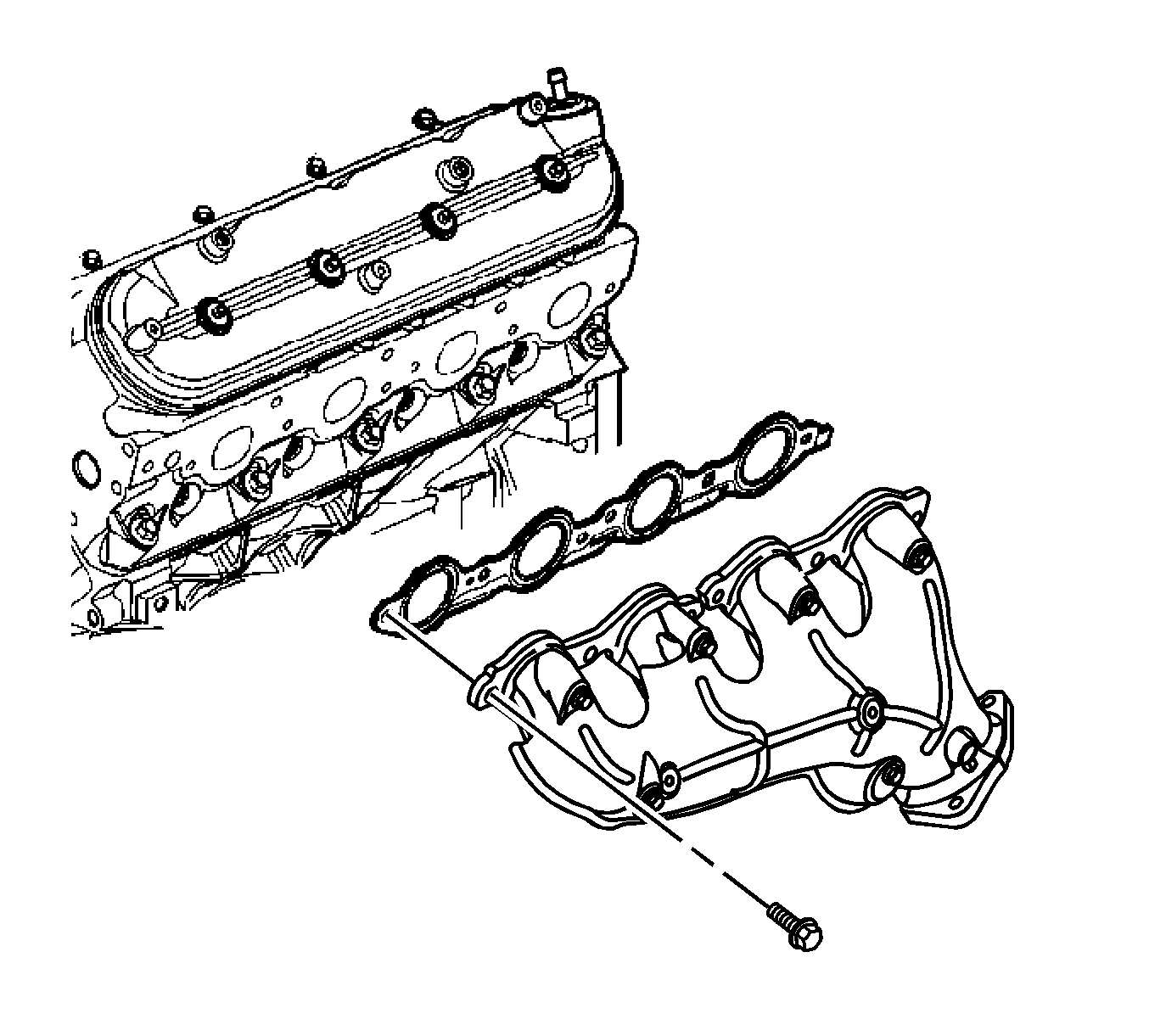

Remove the spark plug wires from the spark plugs.
- Remove the exhaust manifold, bolts, and gasket.
- Discard the gasket.
 Courtesy of GENERAL MOTORS COMPANY
|

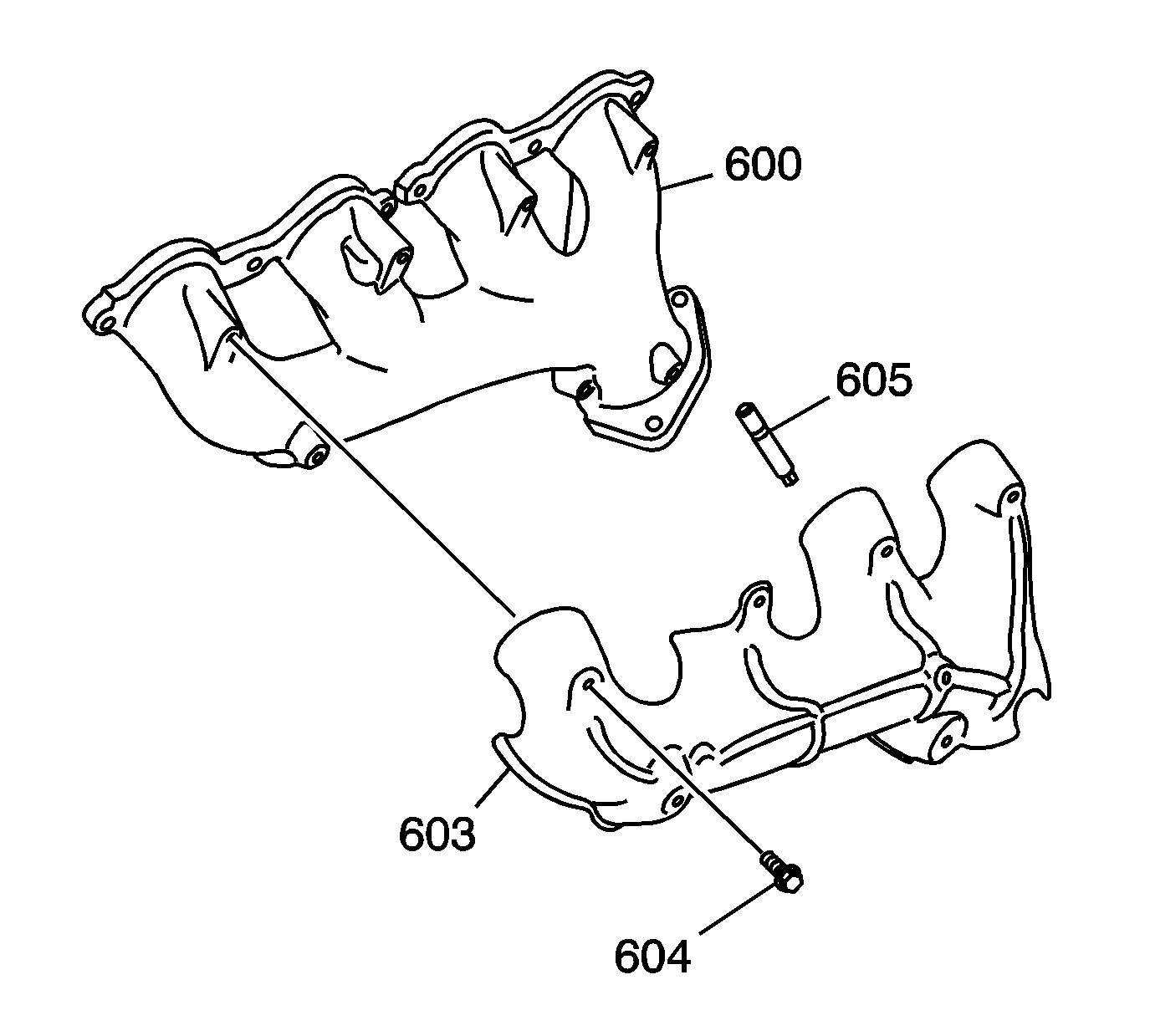

Remove the heat shield (603) and bolts (604) from the manifold (600), as required.
- Remove the studs (605), as required.
