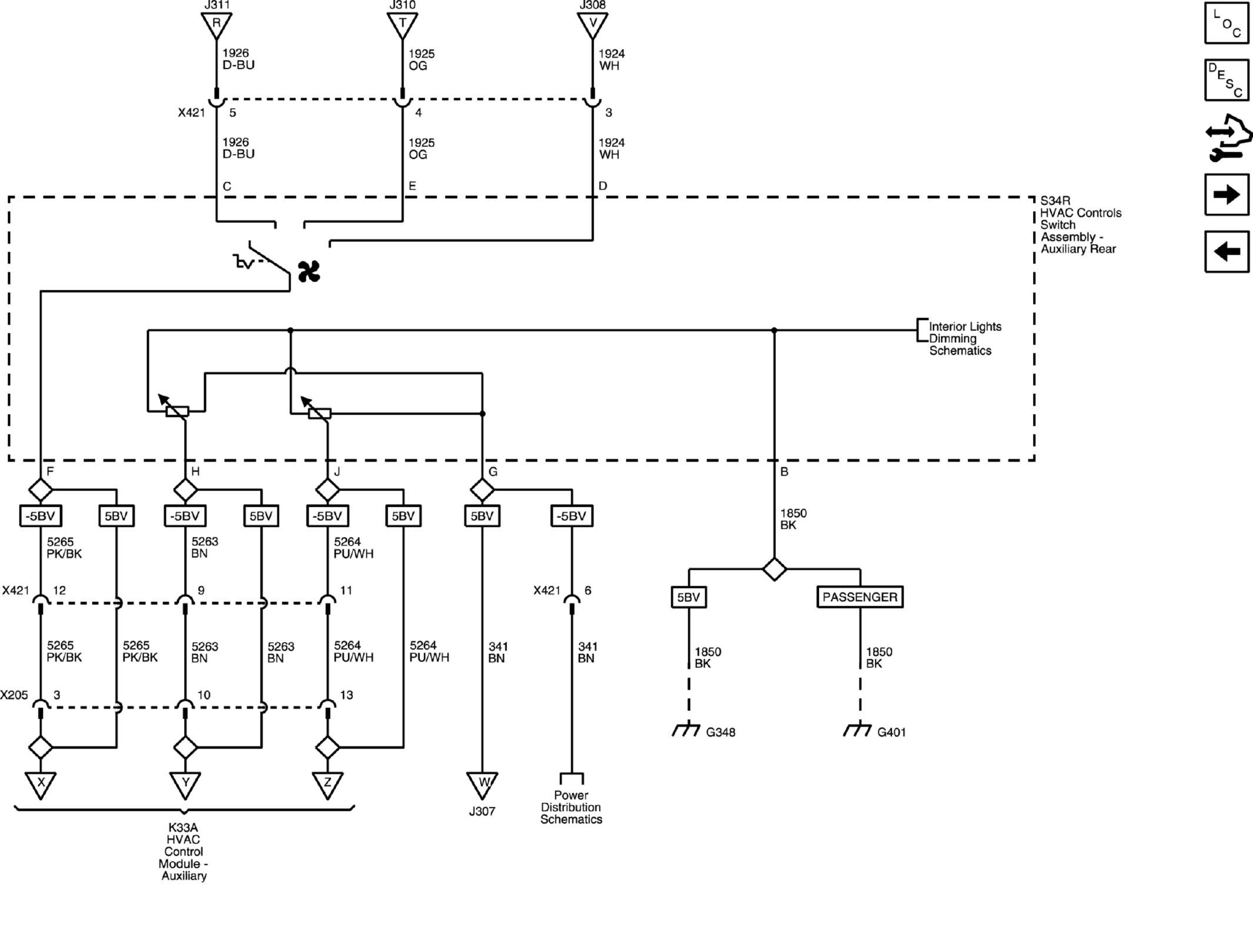

Rear HVAC with Rear Air Conditioning (C69), with Rear HVAC Controls - Rear Controls
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1926 | Auxiliary Blower Motor Low Speed Control |
| 1926_D-BU | 1926 D-BU |
| CAV_C | C |
| 1926_D-BU | 1926 D-BU |
| 1925 | Auxiliary Blower Motor Medium Speed Control |
| CAV_E | E |
| 1925_OG | 1925 OG |
| 1925_OG | 1925 OG |
| 1924 | Auxiliary Blower Motor High Speed Control |
| CAV_D | D |
| 1924_WH | 1924 WH |
| 1924_WH | 1924 WH |
| CAV_B | B |
| 5265 | Dual Logic Module Rear Control Signal |
| 5265_PK/BK | 5265 PK/BK |
| CAV_F | F |
| 5265_PK/BK | 5265 PK/BK |
| 5263 | Dual Logic Module Rear Temperature Signal |
| 5263_BN | 5263 BN |
| CAV_H | H |
| 5263_BN | 5263 BN |
| 5264 | Dual Logic Module Rear Mode Signal |
| 5264_PU/WH | 5264 PU/WH |
| CAV_J | J |
| 5264_PU/WH | 5264 PU/WH |
| 341 | Run Ignition 3 Voltage |
| CAV_G | G |
| 341_BN | 341 BN |
| 1850 | Ground |
| 1850_BK | 1850 BK |
| 1850_BK | 1850 BK |
| 1850_BK | 1850 BK |
| PASSENGER | PASSENGER |
| 5265_PK/BK | 5265 PK/BK |
| 5263_BN | 5263 BN |
| 5264_PU/WH | 5264 PU/WH |
| 5BV | 5BV: PROVISIONS-ELEC - UPFITTER |
| 5BV | 5BV: PROVISIONS-ELEC - UPFITTER |
| 5BV | 5BV: PROVISIONS-ELEC - UPFITTER |
| 5BV | 5BV: PROVISIONS-ELEC - UPFITTER |
| 5BV | 5BV: PROVISIONS-ELEC - UPFITTER |
| 5BV | 5BV: PROVISIONS-ELEC - UPFITTER |
| 5BV | 5BV: PROVISIONS-ELEC - UPFITTER |
| 341_BN | 341 BN |
| CAV_6 | 6 |
| 5BV | 5BV: PROVISIONS-ELEC - UPFITTER |
| 5BV | 5BV: PROVISIONS-ELEC - UPFITTER |
| X205 | X205 |
| CAV_3 | 3 |
| CAV_10 | 10 |
| CAV_13 | 13 |
| X421 | X421 |
| CAV_4 | 4 |
| CAV_3 | 3 |
| CAV_5 | 5 |
| X421 | X421 |
| CAV_9 | 9 |
| CAV_11 | 11 |
| CAV_12 | 12 |
| R_REF | R |
| J311 | J311 |
| T_REF | T |
| J310 | J310 |
| V_REF | V |
| J308 | J308 |
| X_REF | X |
| Y_REF | Y |
| Z_REF | Z |
| W_REF | W |
| J307 | J307 |
| G348 | G348 |
| G401 | G401 |
| X421 | X421 |
| X205 | X205 |
| X421 | X421 |
| X421 | X421 |
| Interior_Lights_Dimming_Wiring Schematics_REF | Interior Lights Dimming Wiring Schematics |
| S34R | S34R HVAC Controls Switch Assembly - Auxiliary Rear (C36 or C69 with Rear HVAC Controls) |
| Power_Distribution_Wiring Schematics_REF | Power Distribution Wiring Schematics |
| K33A | K33A HVAC Control Module - Auxiliary |
