Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

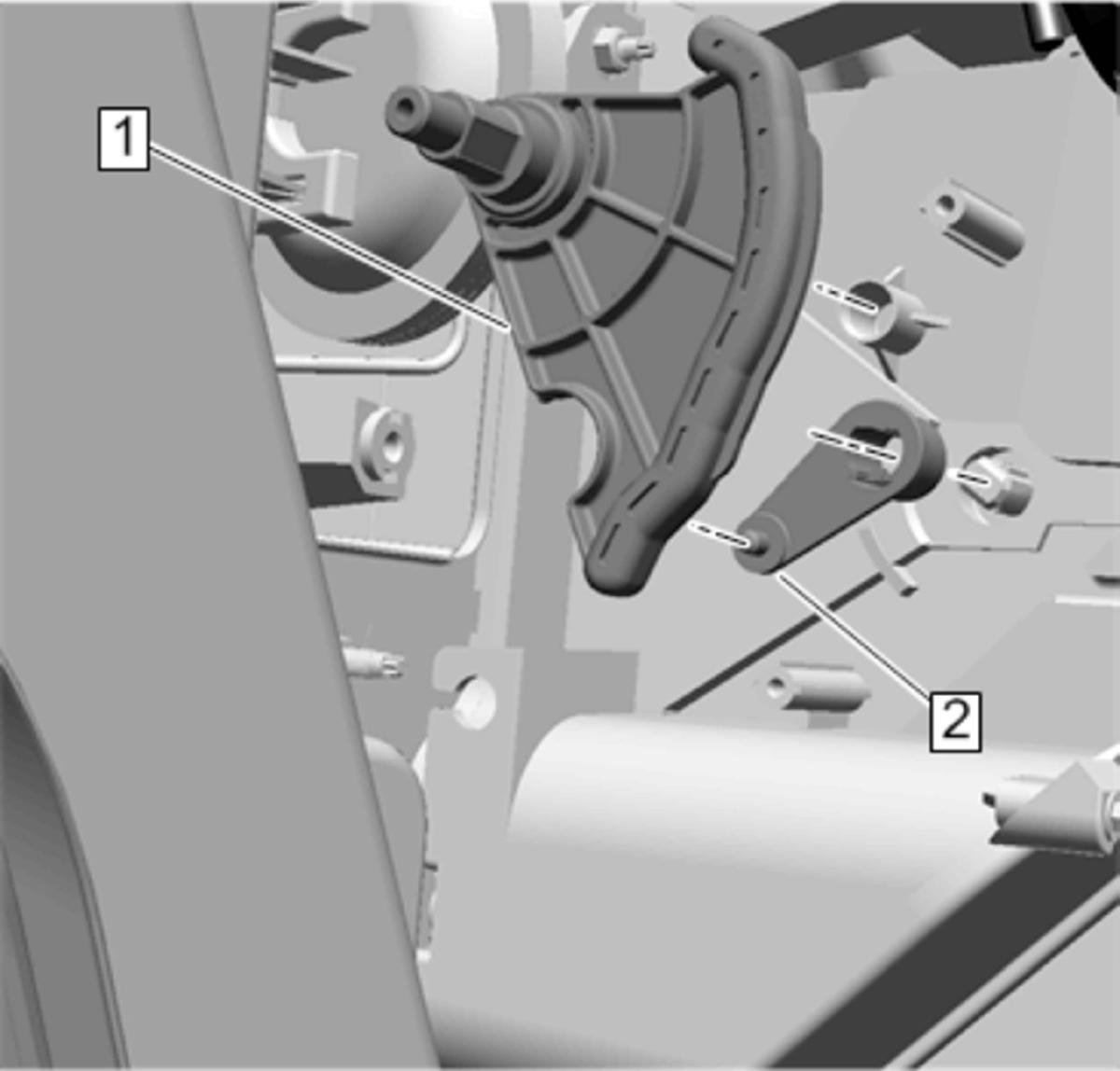

Temperature Valve Link (2) - Install
Temperature Valve Actuator Cam (1) - Install
Courtesy of GENERAL MOTORS COMPANY

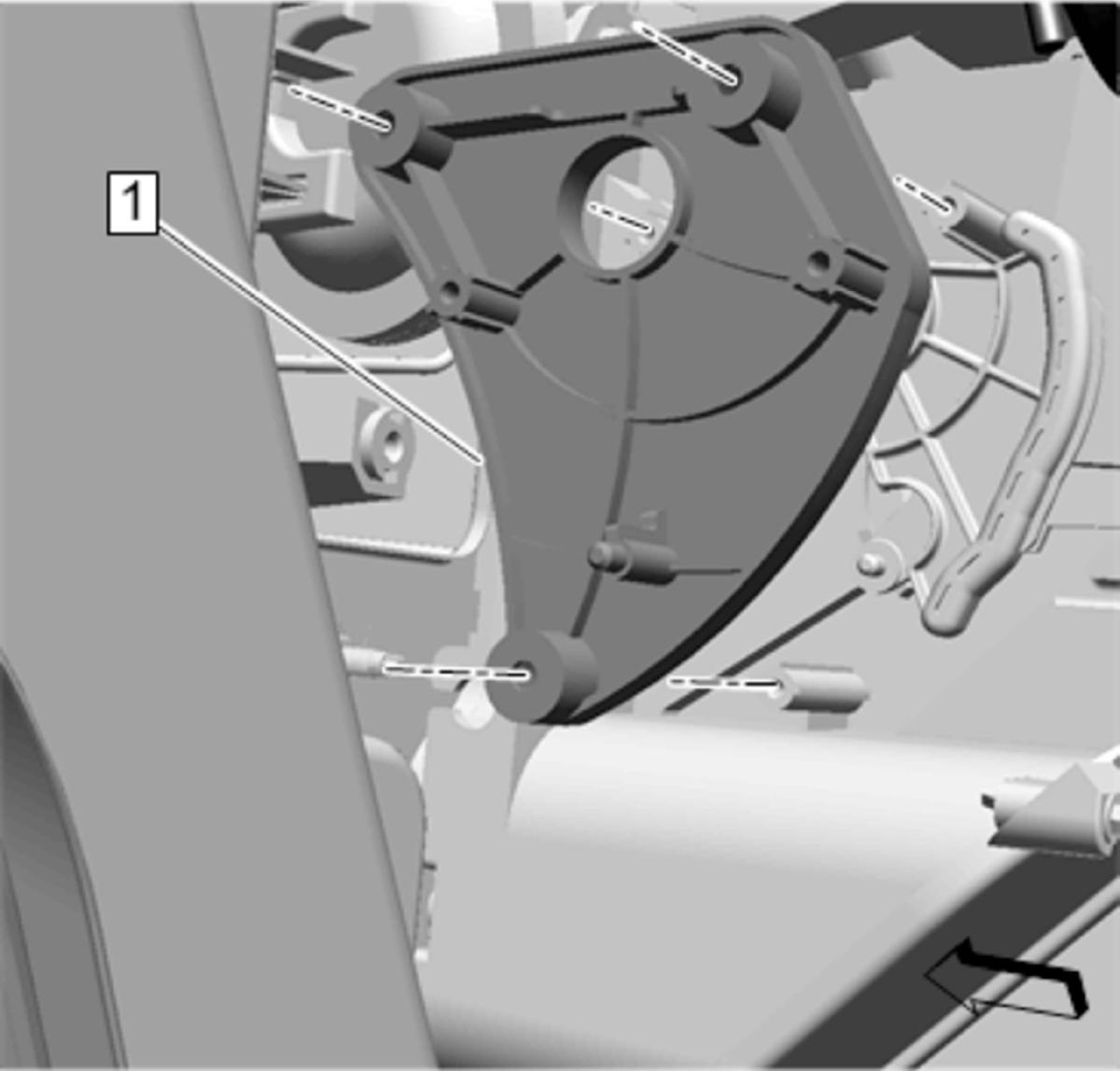

Temperature Valve Actuator Cam Plate (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

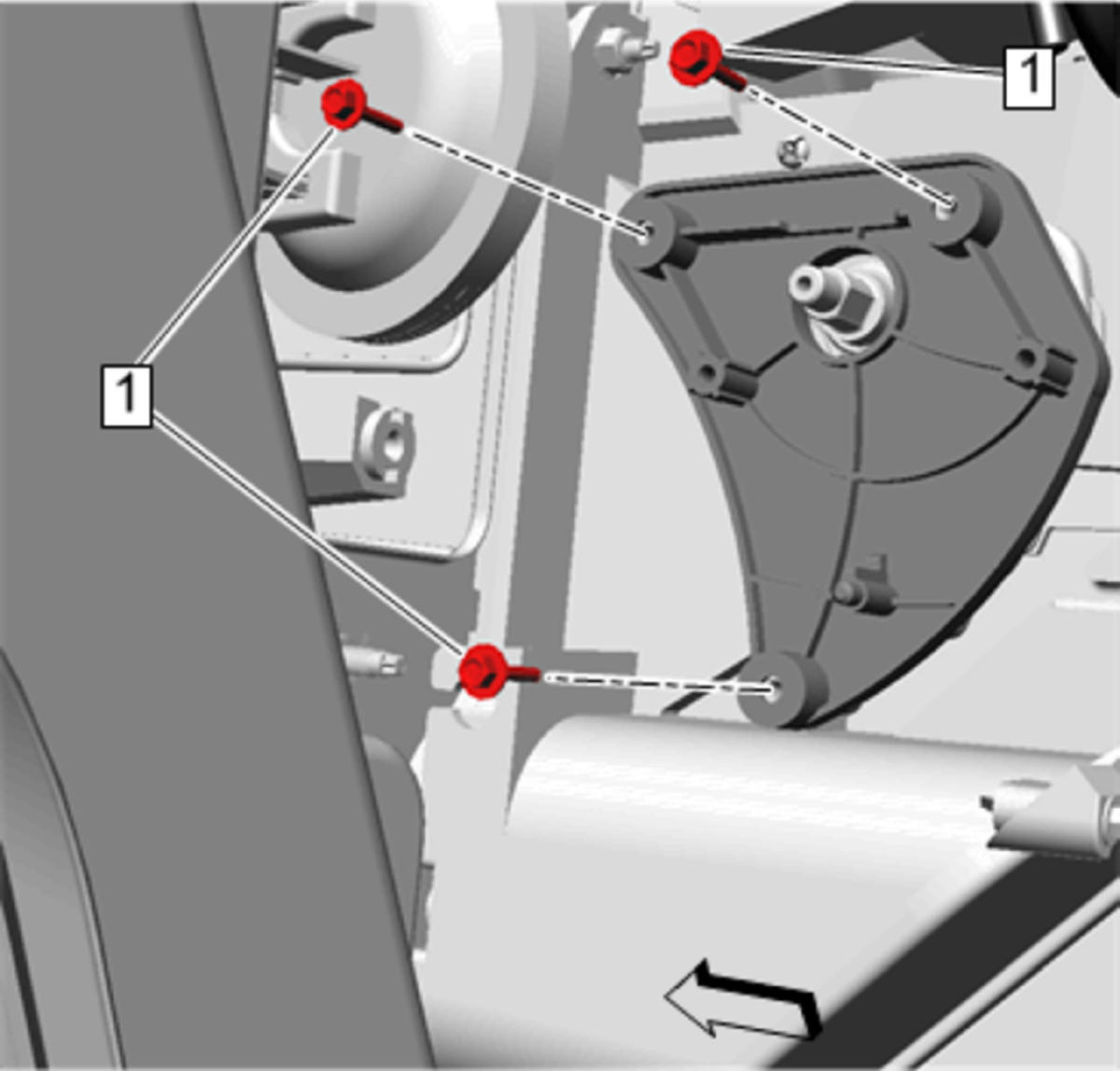

Temperature Valve Actuator Cam Plate Bolt (1) - Install and tighten [3x] 1.9 N.m (17 lb in)
Courtesy of GENERAL MOTORS COMPANY

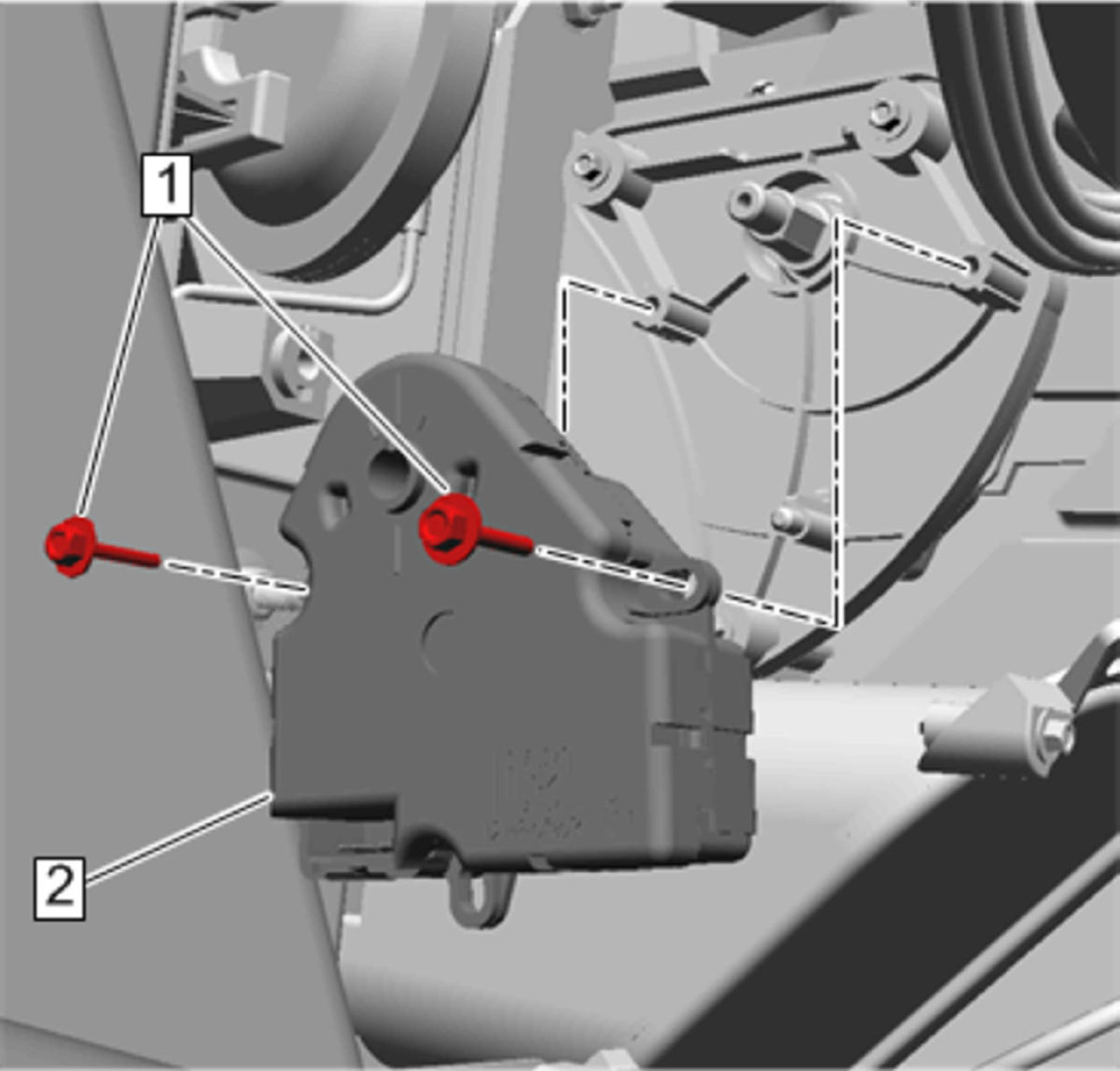

Temperature Valve Actuator (2) - Install - Temperature Valve Actuator Replacement
Courtesy of GENERAL MOTORS COMPANY

Install the right side floor front air outlet center duct (2). Floor Front Air Outlet Center Duct Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Engine Cover (1) - Install - Engine Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel (2) - Install - Front Floor Console Extension Panel Replacement
