Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Front Floor Console Extension Panel (2) - Remove - Front Floor Console Extension Panel Replacement
Engine Cover (1) - Remove - Engine Cover Replacement
Remove the right side floor front air outlet center duct (2). Floor Front Air Outlet Center Duct Replacement - Right Side
- NOTE:
The distributor center duct was removed for clarity of the service procedure.

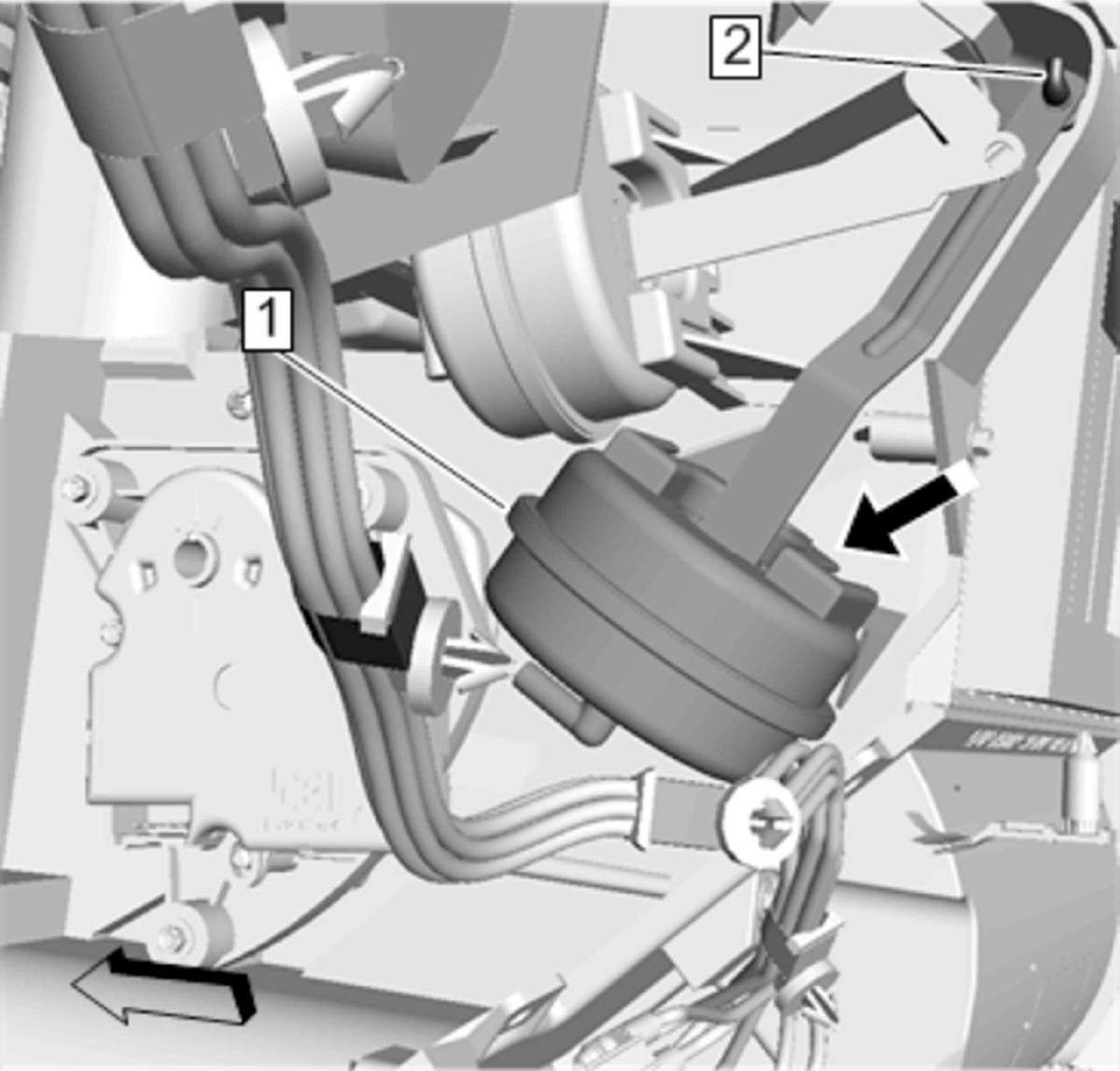

Depress the detent at the arrow to remove the lower mode valve actuator (1) from the heater case.
- Remove the lower mode valve actuator (1) from the mode valve lever (2).
- Remove the vacuum hose.
