Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery) , or Battery Negative Cable Disconnection and Connection (Dual Battery)
- Disconnect the battery positive cable from the battery. Battery Positive Cable Replacement (L96/LC8 with K4B) , or Battery Positive Cable Replacement (L96/LC8 without K4B) , or Battery Positive Cable Replacement (LWN) , or Battery Positive Cable Replacement (LV1 with K68 and K4B) , or Battery Positive Cable Replacement (LV1 with KG4/KW5 and K4B) , or Battery Positive Cable Replacement (LV1 with K68) , or Battery Positive Cable Replacement (LV1 with KG4/KW5)

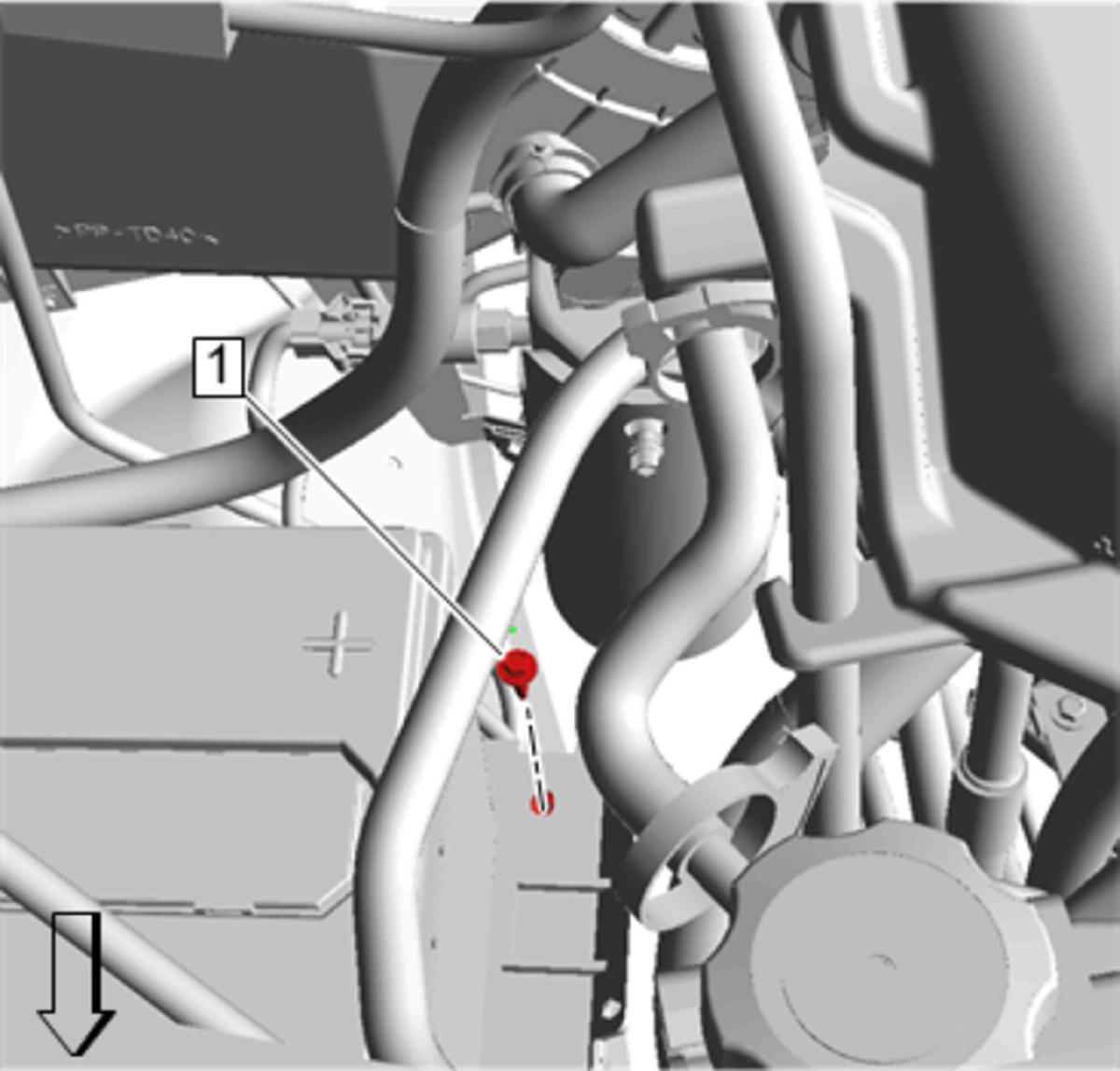

Heater and Air Conditioning Control Vacuum Tank Bolt (1) @ Battery Tray - Remove

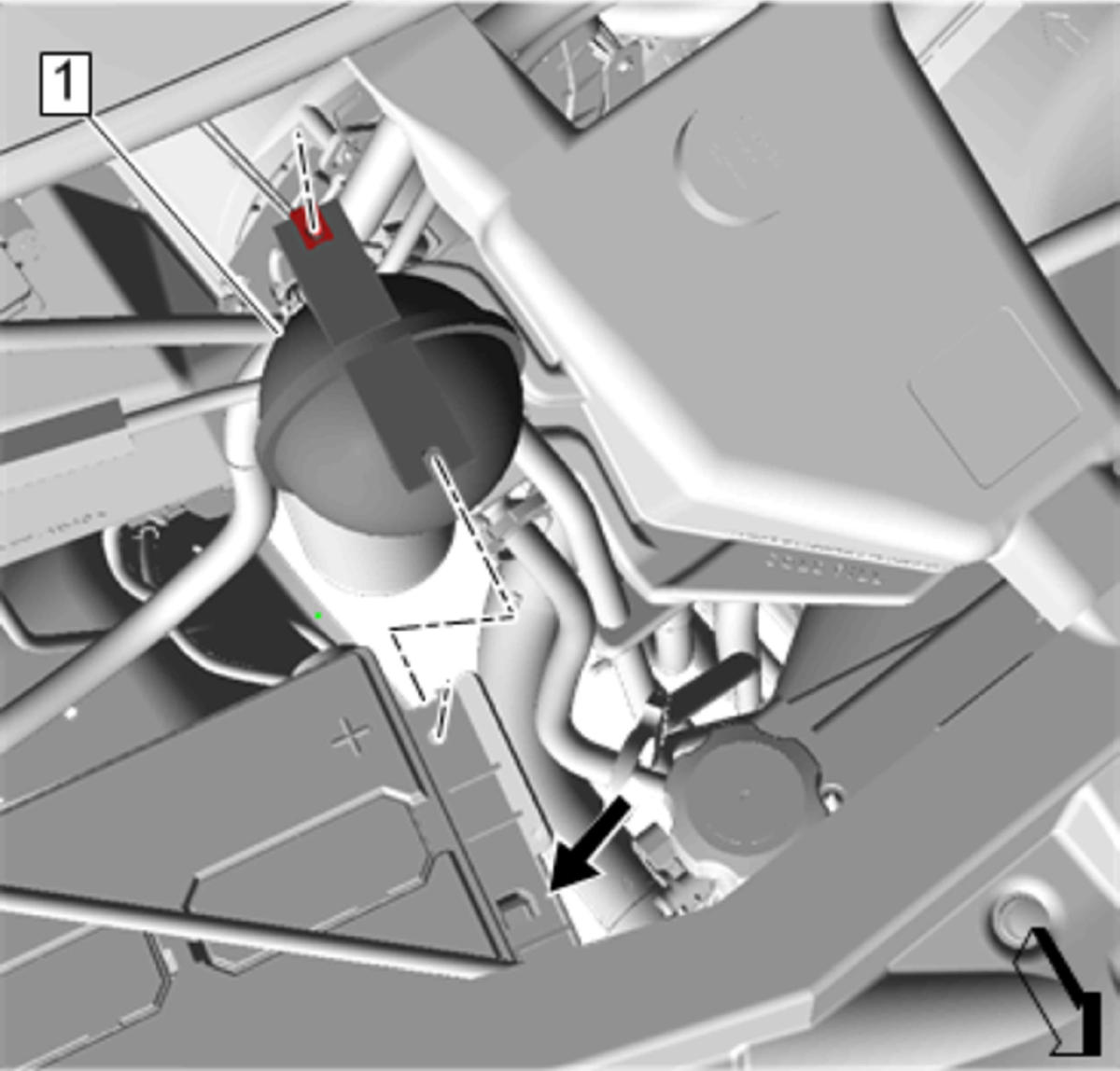

Heater and Air Conditioning Control Vacuum Tank (1) @ Battery Tray - Remove
- Heater and Air Conditioning Control Vacuum Source Hose - Remove
