Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

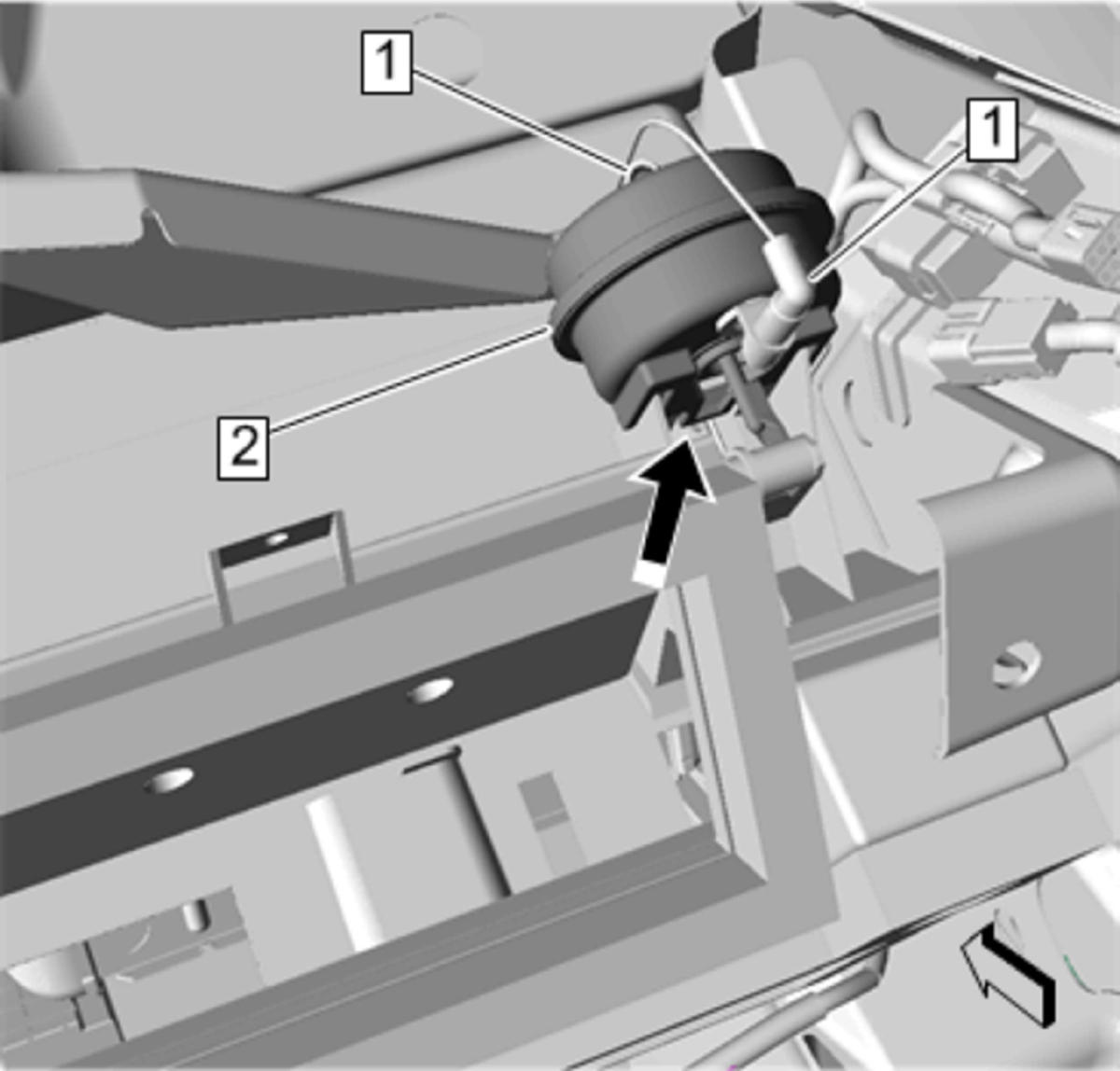

Defrost Valve Actuator (2) @ Defroster Valve - Install
Defrost Valve Actuator (2) @ Arrow - Install
Air Valve Actuator Control Module Harness Vacuum lines (1) @ Defrost Valve Actuator - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

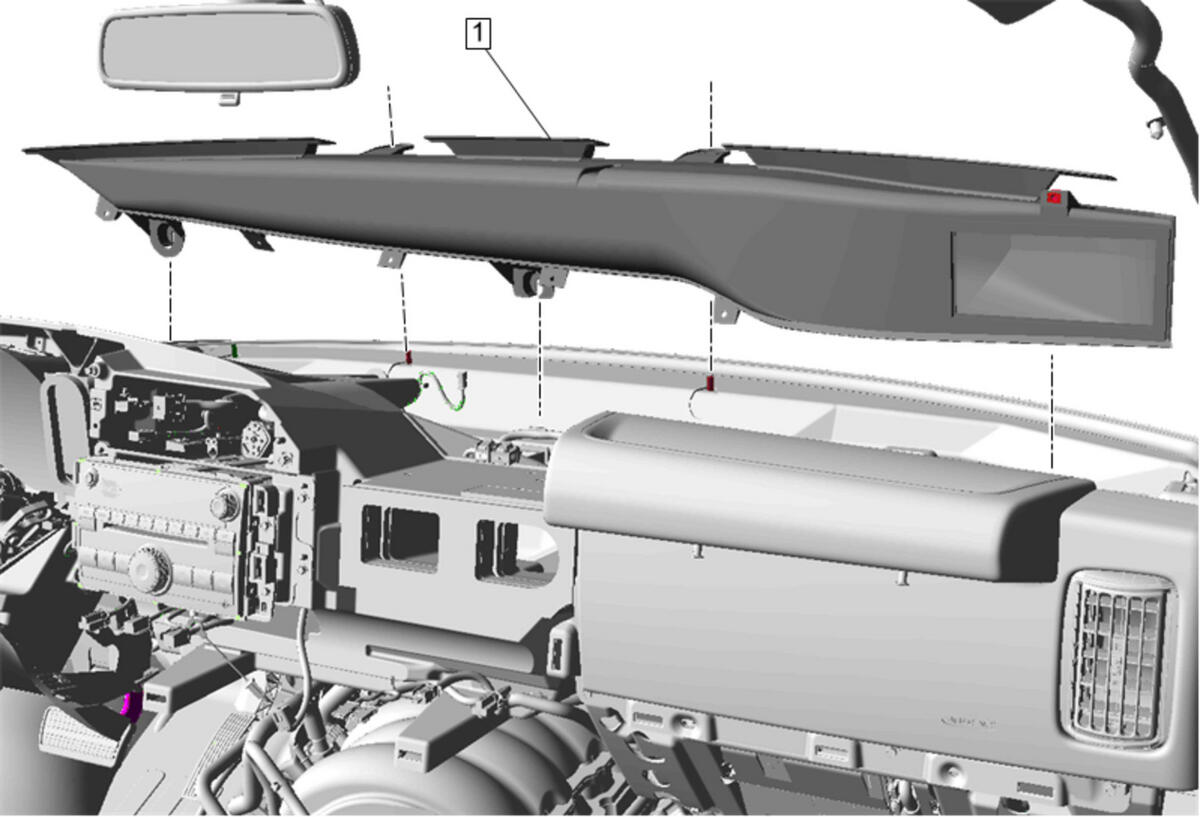

Windshield Defroster Outlet Duct (1) - Install - Windshield Defroster Duct Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Upper Trim Panel (1) - Install - Instrument Panel Upper Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Heater and Air Conditioning Control (2) - Install - Heater and Air Conditioning Control Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Cluster Trim Plate (1) - Install - Instrument Panel Cluster Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster- Right Side (1) - Install - Instrument Panel Knee Bolster Replacement (Right Side)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster- Left Side (1) - Install - Instrument Panel Knee Bolster Replacement (Left Side)
