Auxiliary Temperature Valve Actuator Replacement (Cargo)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

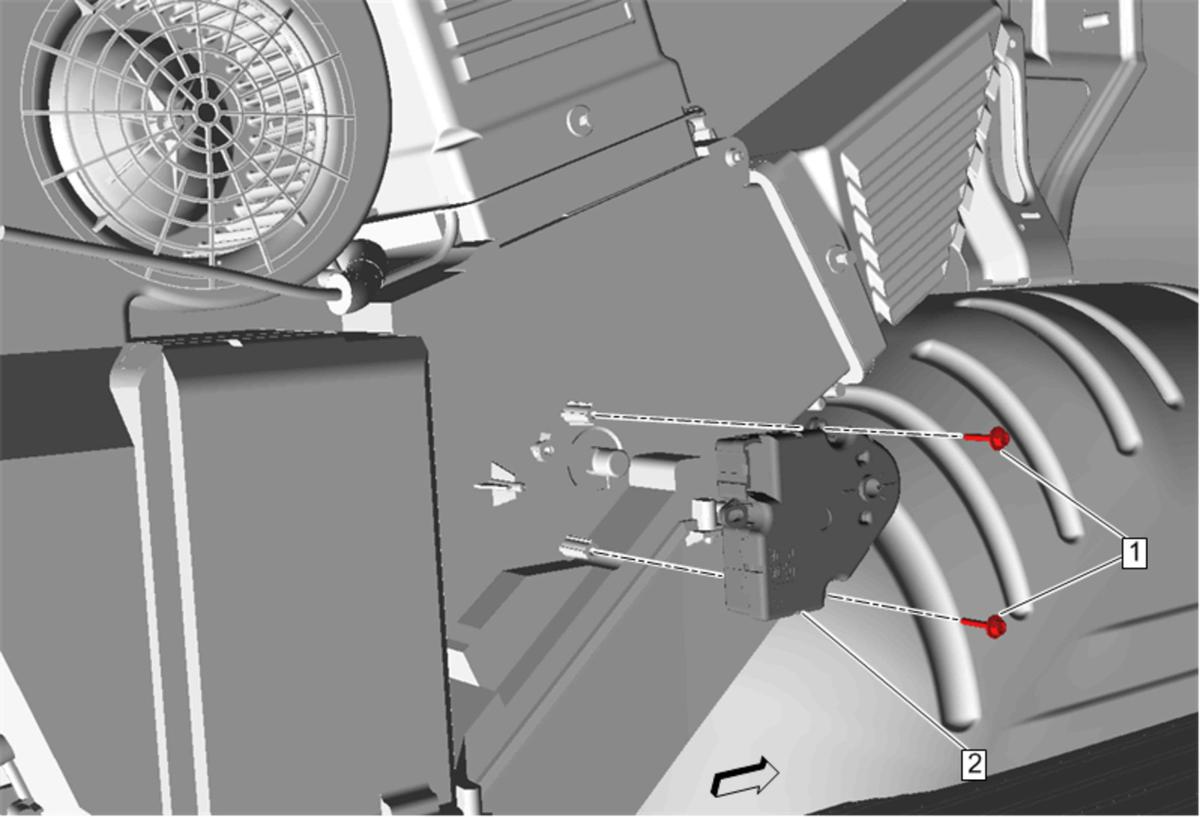

| Callout | Component Name |
|---|---|
| 1 | Auxiliary Temperature Valve Actuator Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 1.9 N.m (17 lb in) |
| 2 | Auxiliary Temperature Valve Actuator Procedure Disconnect the electrical connector. |
