Auxiliary Mode Valve Actuator Replacement (Cargo Van)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

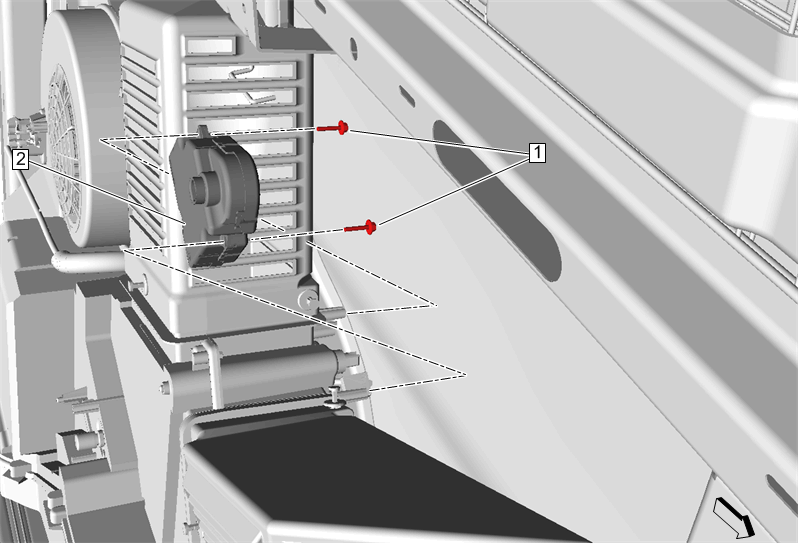

| Callout | Component Name |
|---|---|
| 1 | Auxiliary Mode Valve Actuator Fastener [2x]
CAUTION:
Refer to Fastener Caution . Tighten 1.9 N.m (17 lb in) |
| 2 | Auxiliary Mode Valve Actuator Procedure Disconnect the electrical connector. |
