Auxiliary Heater and Air Conditioning Control Replacement - Rear (Passenger Van)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

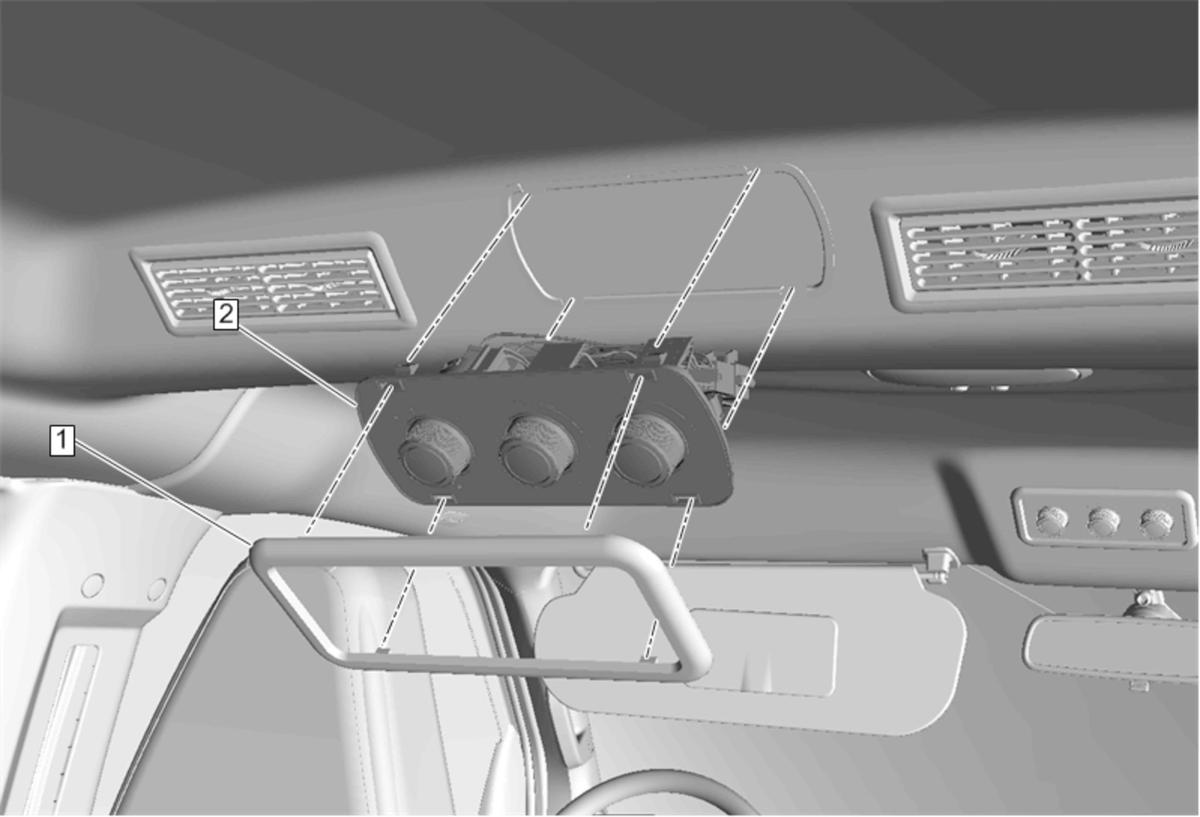

Callout	Component Name
1	Auxiliary Heater and Air Conditioning Control Bezel - Rear Procedure Use the appropriate tool to remove the auxiliary heater and air conditioning control bezel from the auxiliary heater and air conditioning control.
2	Auxiliary Heater and Air Conditioning Control - Rear Procedure Use the appropriate tool to remove the auxiliary heater and air conditioning control from the headliner. Disconnect the electrical connector.

Callout

Component Name

Auxiliary Heater and Air Conditioning Control Bezel - Rear
Procedure
Use the appropriate tool to remove the auxiliary heater and air conditioning control bezel from the auxiliary heater and air conditioning control.

Auxiliary Heater and Air Conditioning Control - Rear

Procedure

Use the appropriate tool to remove the auxiliary heater and air conditioning control from the headliner.
Disconnect the electrical connector.
