Auxiliary Blower Switch Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name

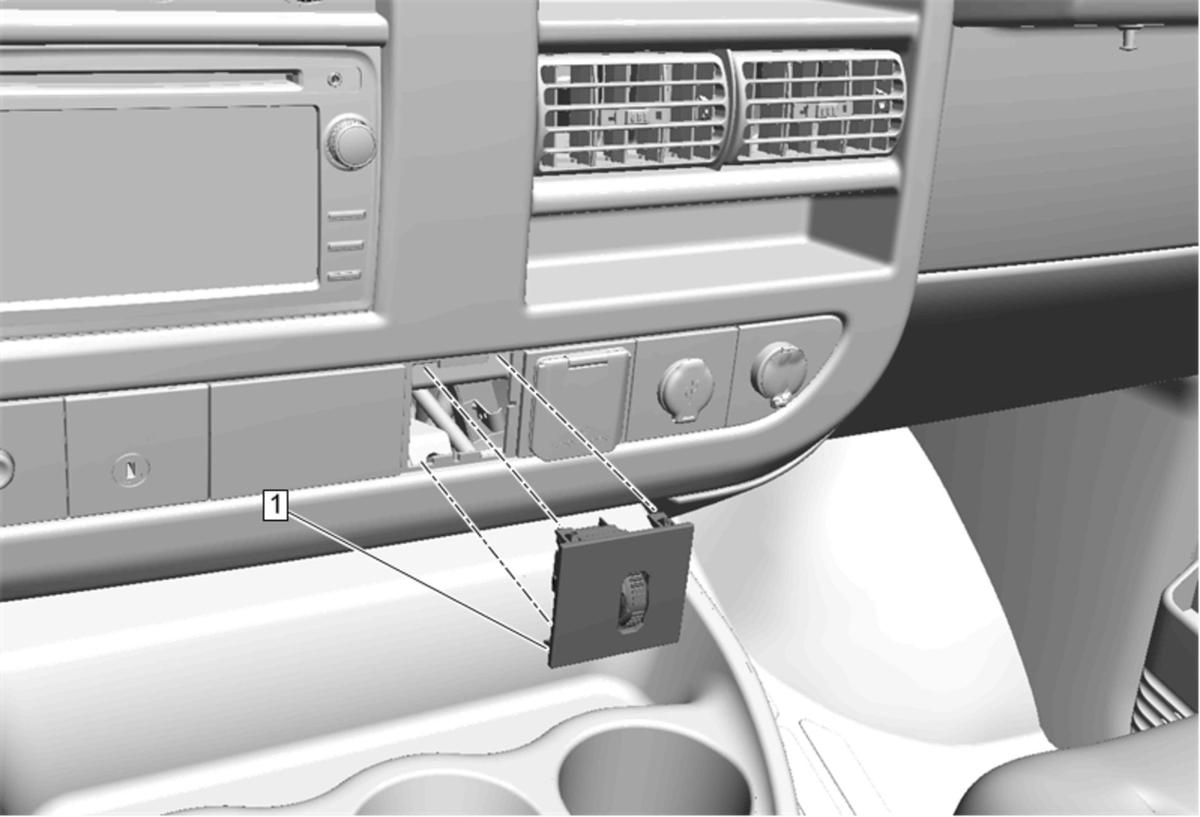

1	Auxiliary Blower Switch Procedure Depress the detents to pull the auxiliary blower switch out of the instrument panel cluster trim plate. Disconnect the electrical connector.
