Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

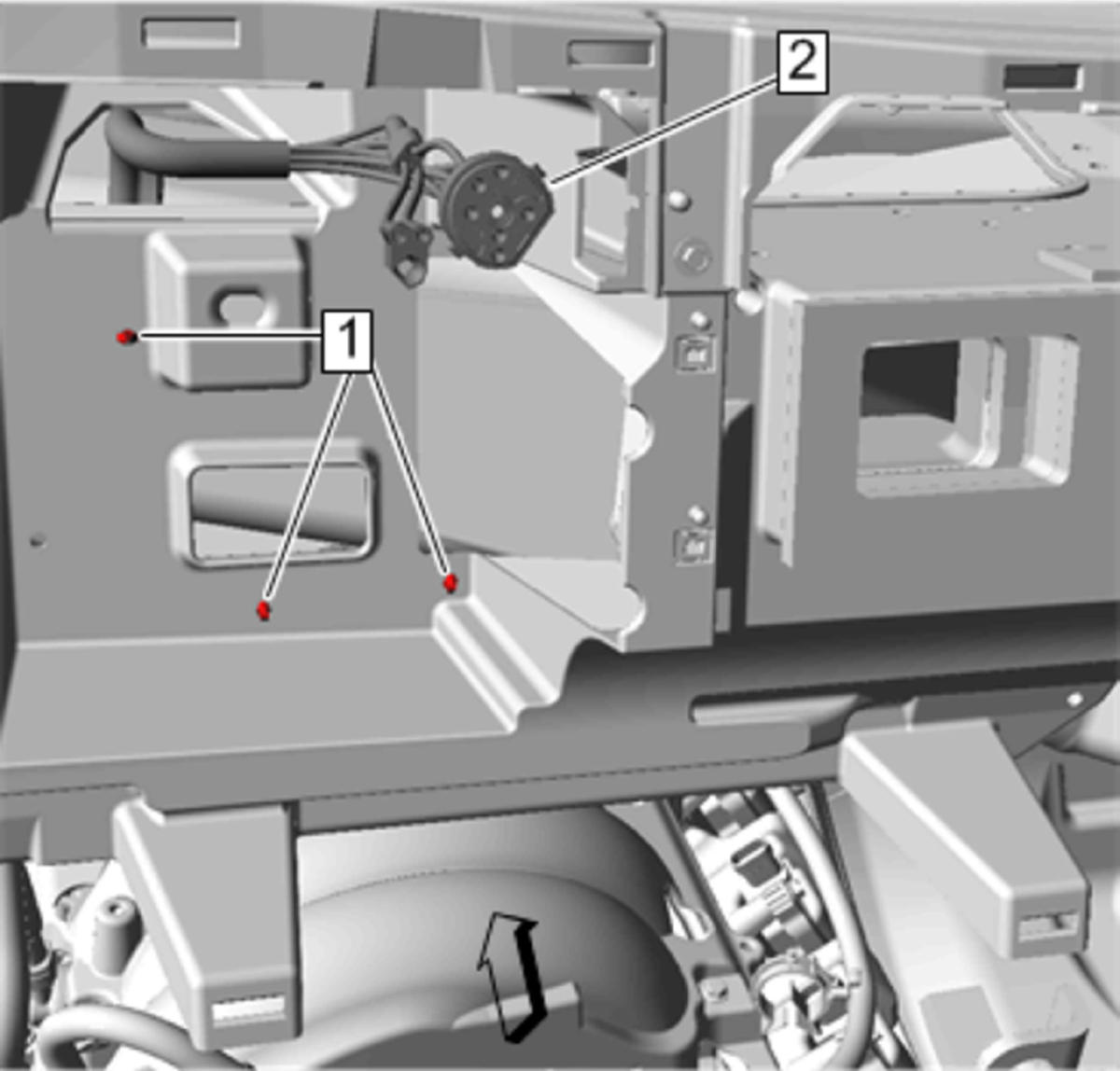

Route the air valve actuator vacuum harness (2) back behind the instrument panel carrier.
Install the air valve actuator vacuum harness clip (1) onto the instrument panel carrier.
Courtesy of GENERAL MOTORS COMPANY

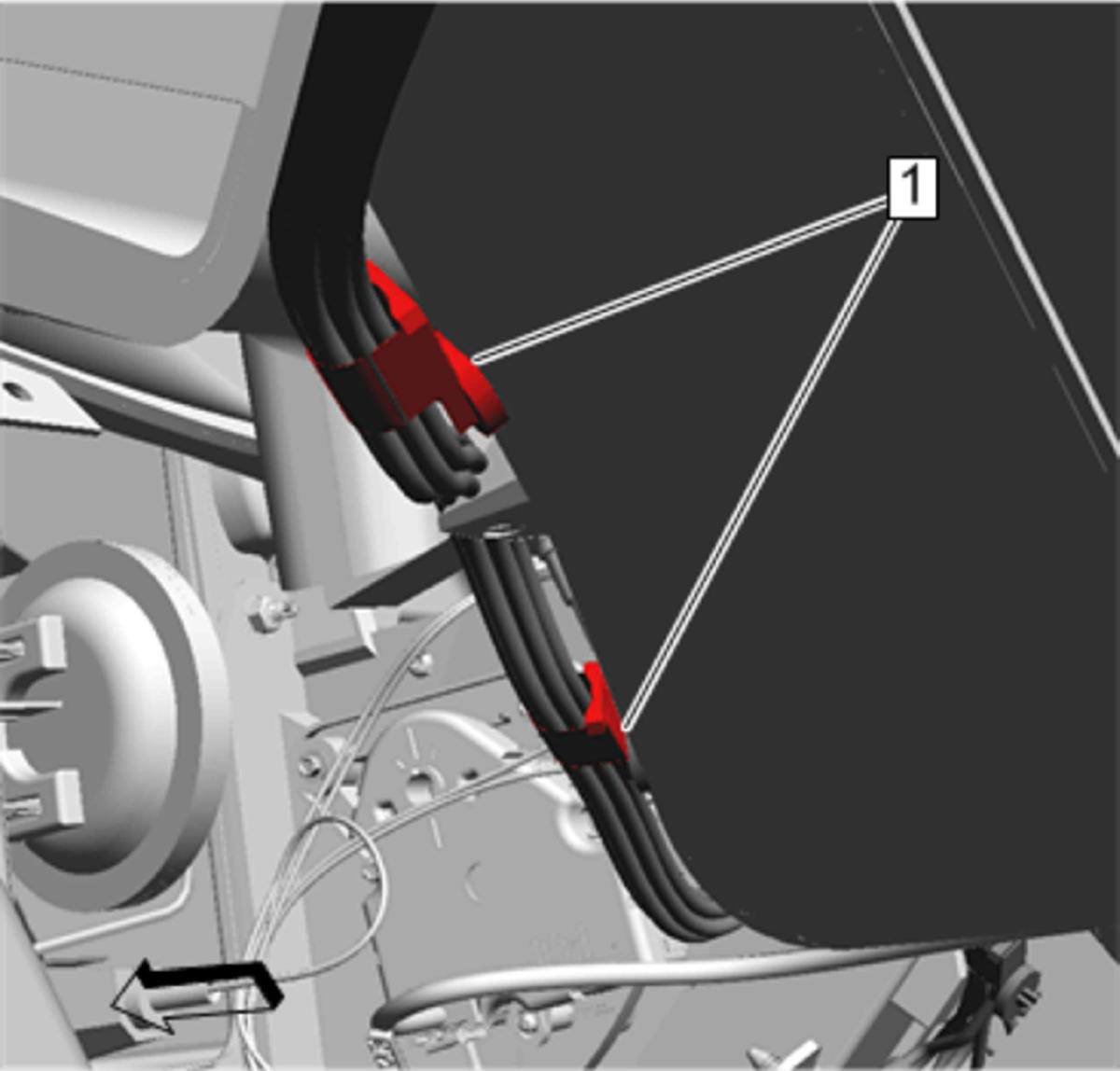

Install the air valve actuator vacuum harness clip (1) onto the distributor center air outlet duct.
Courtesy of GENERAL MOTORS COMPANY

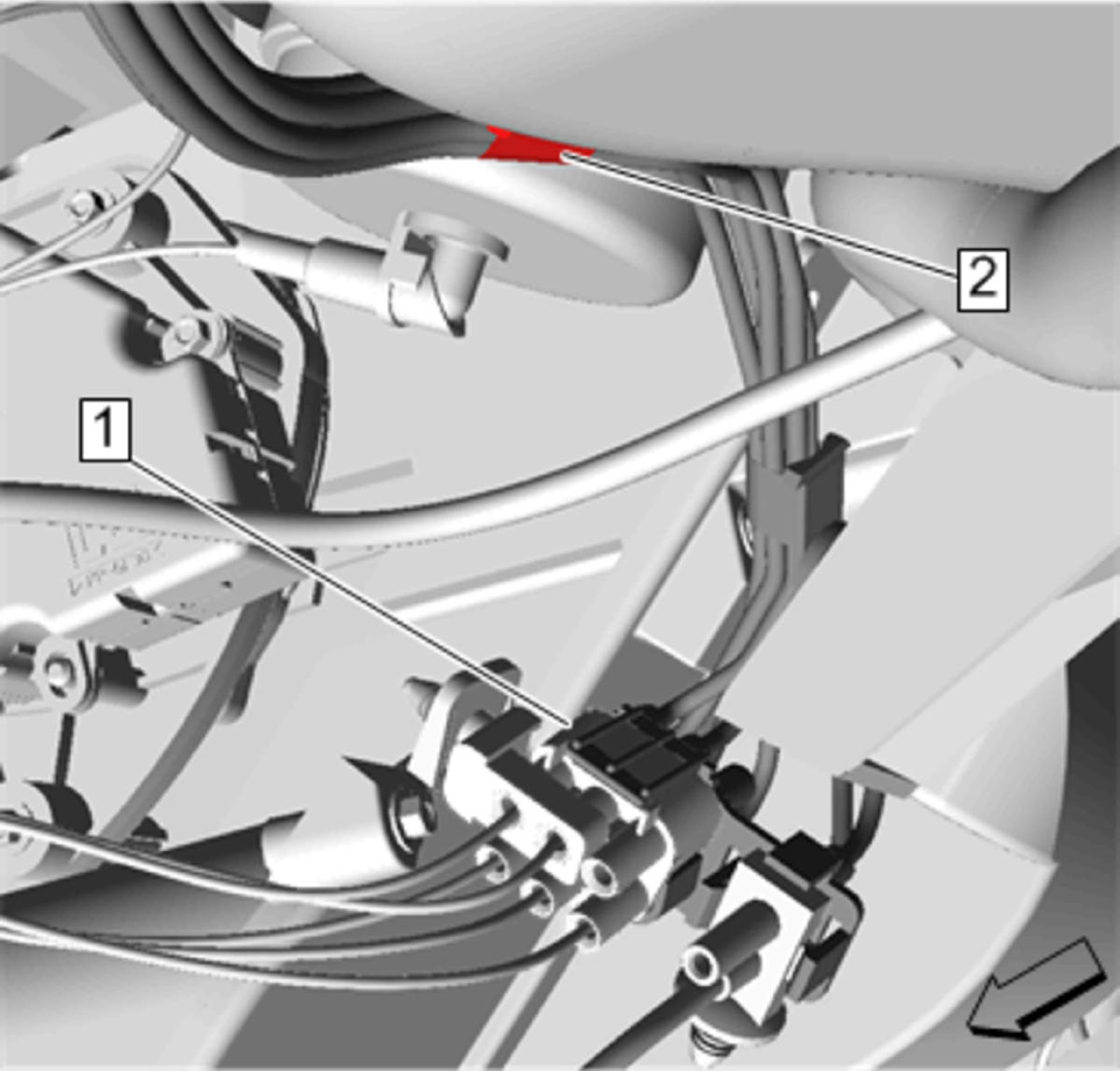

Install the air valve actuator vacuum harness clip (2) onto the distributor center air outlet duct.
Connect the air valve actuator vacuum harness connector (1).
Courtesy of GENERAL MOTORS COMPANY

Install the right side floor front air outlet center duct (2). Floor Front Air Outlet Center Duct Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Engine Cover (1) - Install - Engine Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel (2) - Install - Front Floor Console Extension Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Radio Bracket (2) - Install - Radio Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

Heater and Air Conditioning Control (2) - Install - Heater and Air Conditioning Control Replacement
