Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster- Left Side (1) - Remove - Instrument Panel Knee Bolster Replacement (Left Side)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster- Right Side (1) - Remove - Instrument Panel Knee Bolster Replacement (Right Side)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Cluster Trim Plate (1) - Remove - Instrument Panel Cluster Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

Heater and Air Conditioning Control (2) - Remove - Heater and Air Conditioning Control Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Upper Trim Panel (1) - Remove - Instrument Panel Upper Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Remove the right side floor front air outlet center duct (2). Floor Front Air Outlet Center Duct Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel (2) - Remove - Front Floor Console Extension Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Engine Cover (1) - Remove - Engine Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

Windshield Defroster Outlet Duct (1) - Remove - Windshield Defroster Duct Replacement
Courtesy of GENERAL MOTORS COMPANY

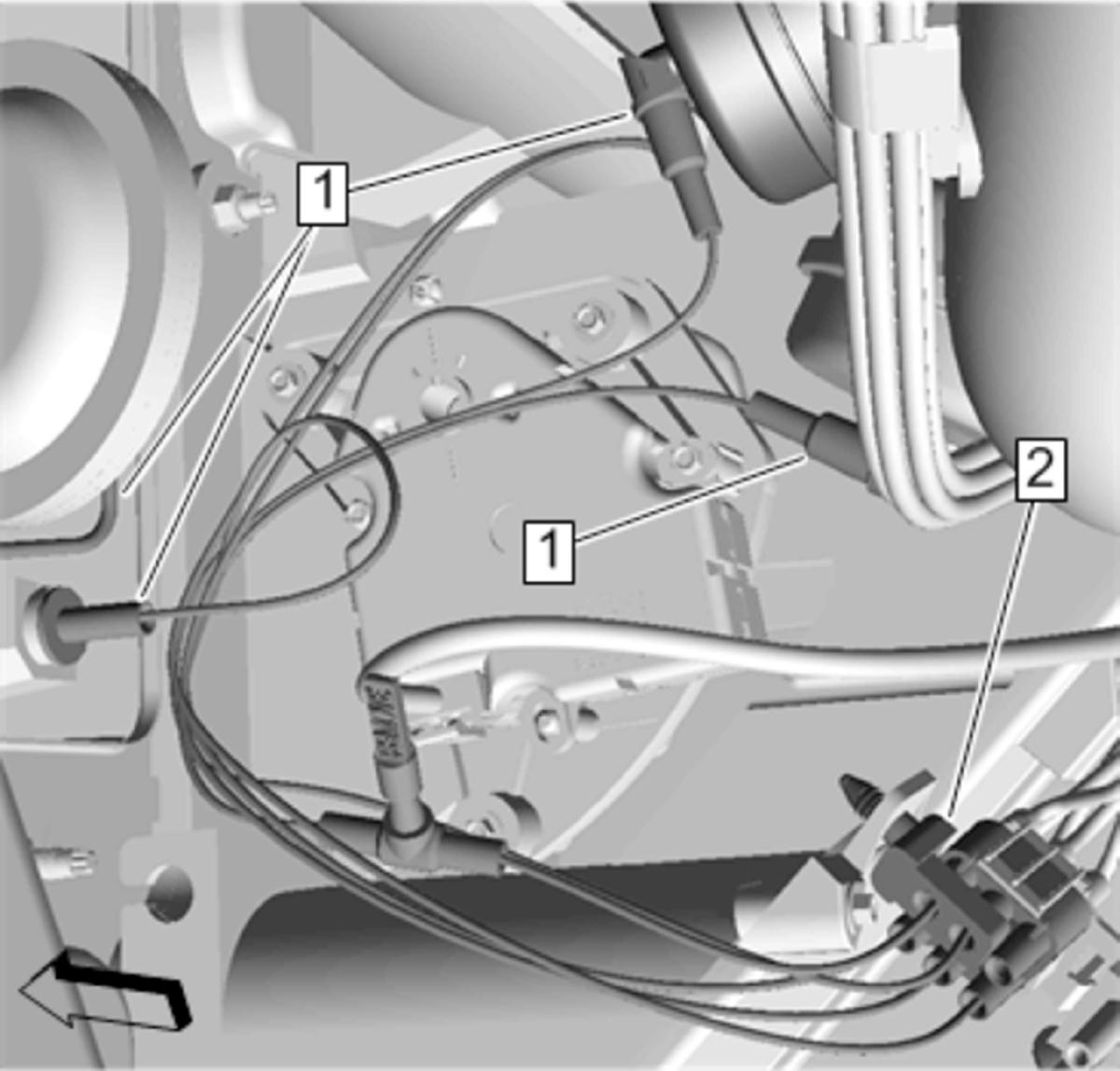

Air Valve Actuator Control Module Harness Vacuum lines (1) @ Actuator - Remove [2x]
Air Valve Actuator Control Module Harness (2) @ Arrows - Remove
Courtesy of GENERAL MOTORS COMPANY

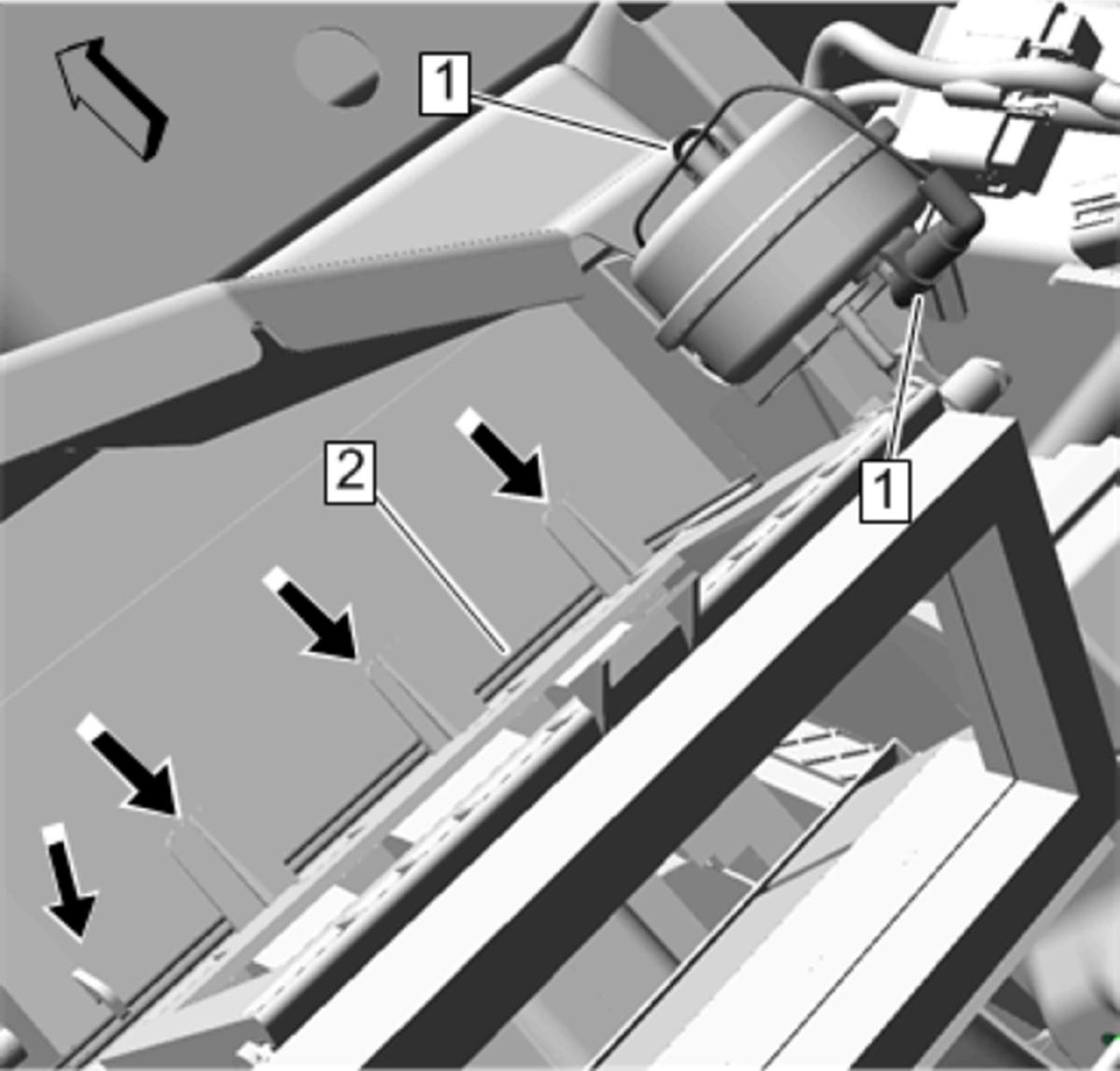

Air Valve Actuator Control Module Harness Vacuum lines (1) @ Actuator - Remove [4x]
Air Valve Actuator Control Module Harness (2) @ Vacuum Connector - Remove
Air Valve Actuator Control Module Harness (2) - Remove
