Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

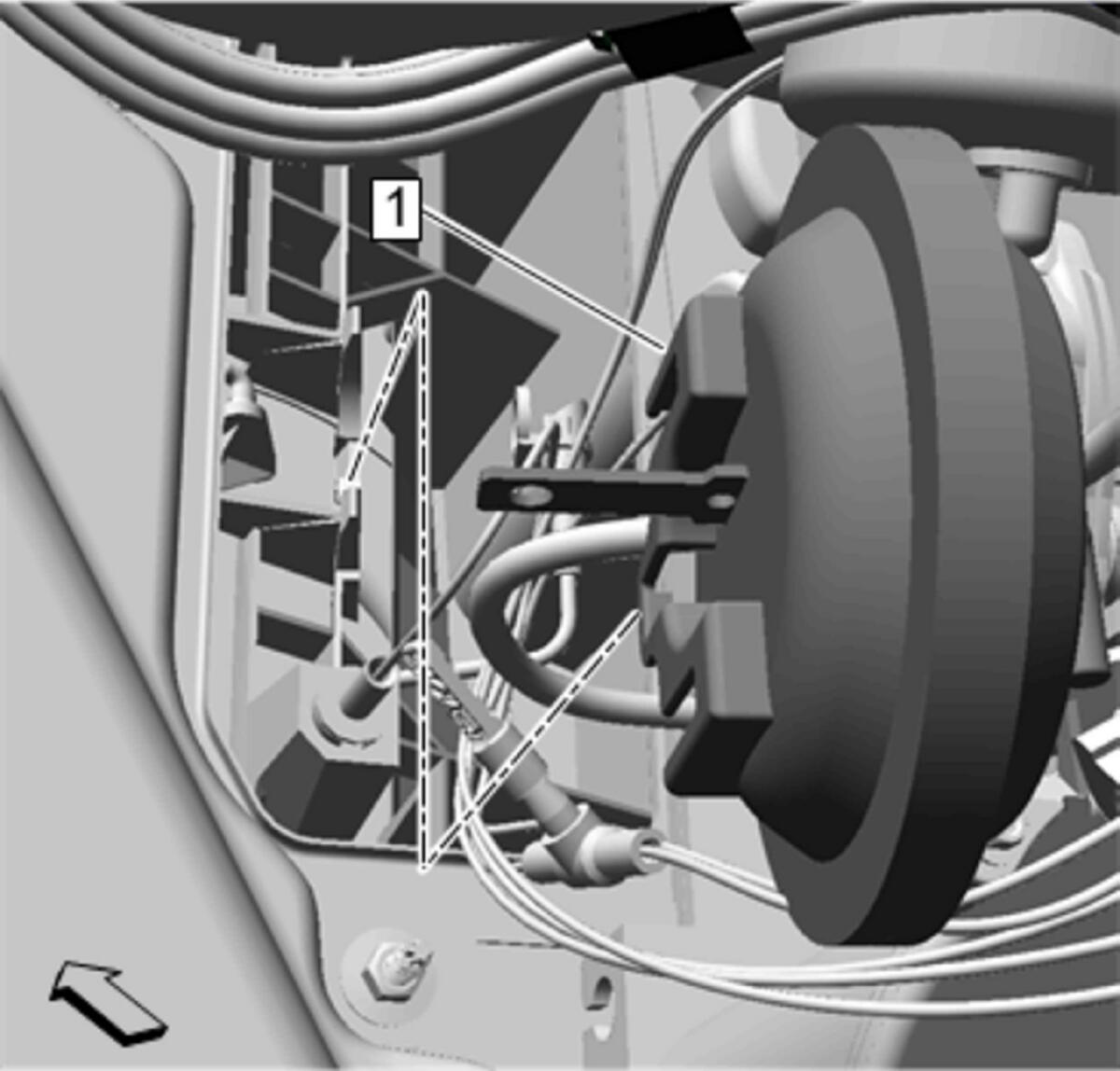

Air Inlet Valve Actuator (1) - Install

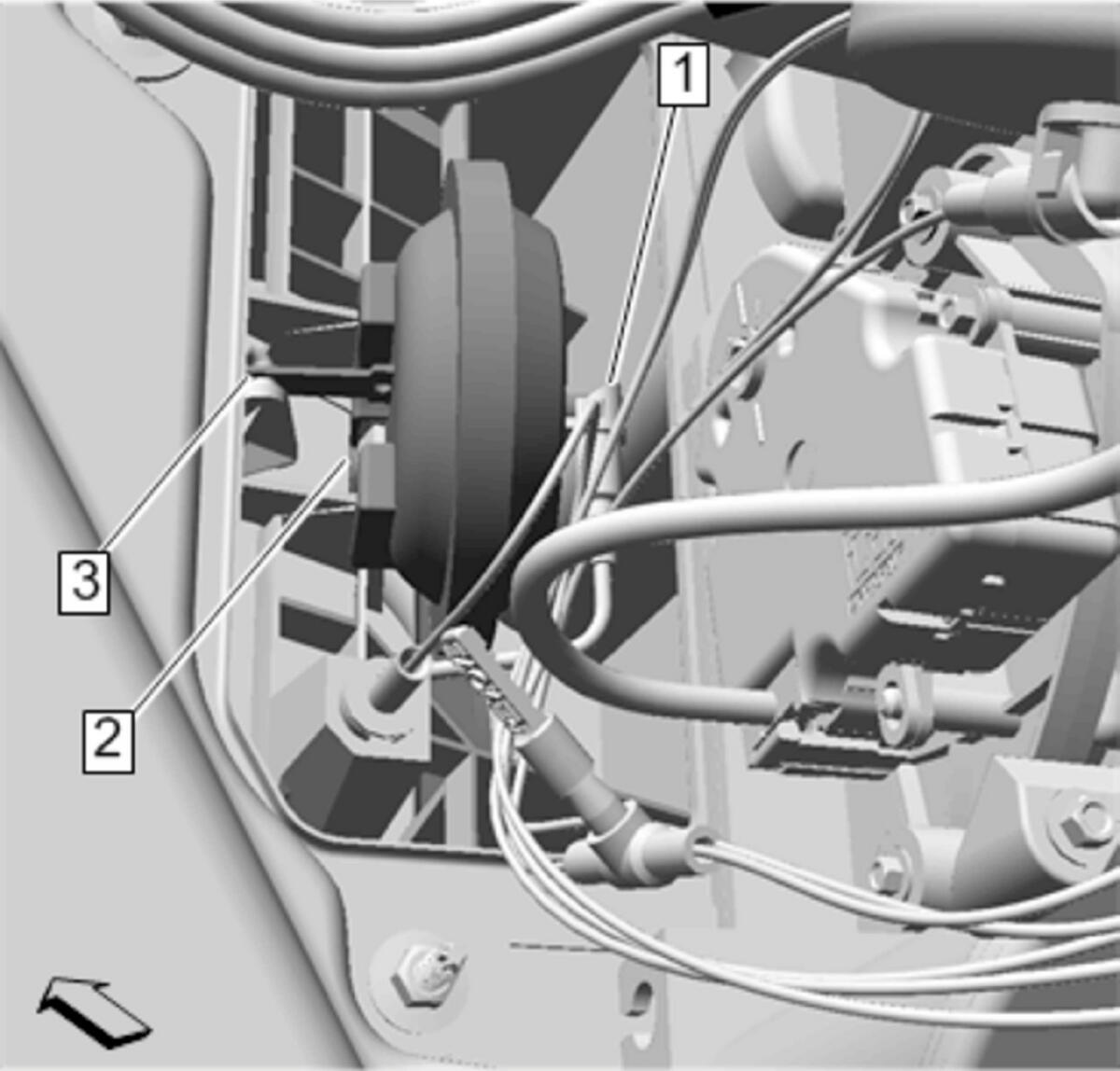

Install the air inlet valve actuator onto the air inlet valve (3).
- Install the air inlet valve actuator to the case (2).
- Install the air inlet valve actuator vacuum hose (1).
Install the right side floor front air outlet center duct (2). Floor Front Air Outlet Center Duct Replacement - Right Side
Engine Cover (1) - Install - Engine Cover Replacement
Front Floor Console Extension Panel (2) - Install - Front Floor Console Extension Panel Replacement
