Removal Procedure
- Raise and support the vehicle. Lifting and Jacking the Vehicle

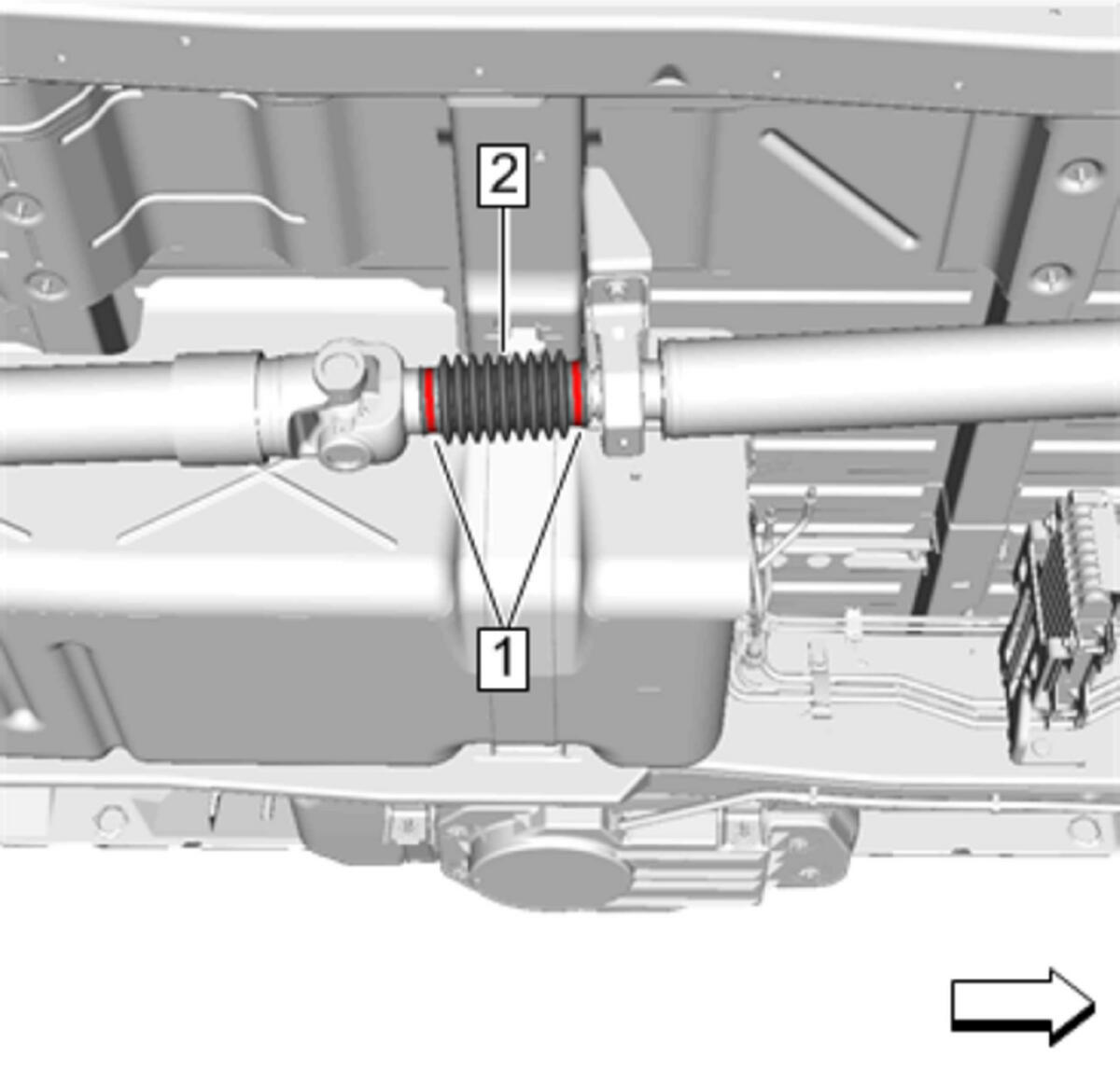

Propeller Shaft Slip Yoke Boot Clamp (1)@ Rear Slip Yoke - Remove and DISCARD[2x]
- Mark a reference point between the rear propeller shaft and the pinion flange assembly.
- Reposition the propeller shaft slip yoke boot (2) and mark a reference point between the front and rear propeller shafts.
- NOTE:
DO NOT re-use the propeller shaft bolts and retainers. DISCARD and replace with NEW only.
Rear Propeller Shaft Bolt(1) - Remove and DISCARD[4x]
- Rear Propeller Shaft Retainer(2) - Remove and DISCARD[2x]
- CAUTION:
When removing the propeller shaft, do not attempt to remove the shaft by pounding on the yoke ears or using a tool between the yoke and the universal joint. If the propeller shaft is removed by using such means, this may lead to premature failure of the joint.
Rear Propeller Shaft (1)@ Pinion Flange Assembly (2) - Separate
Rear Propeller Shaft (1)@ Front Propeller Shaft - Separate

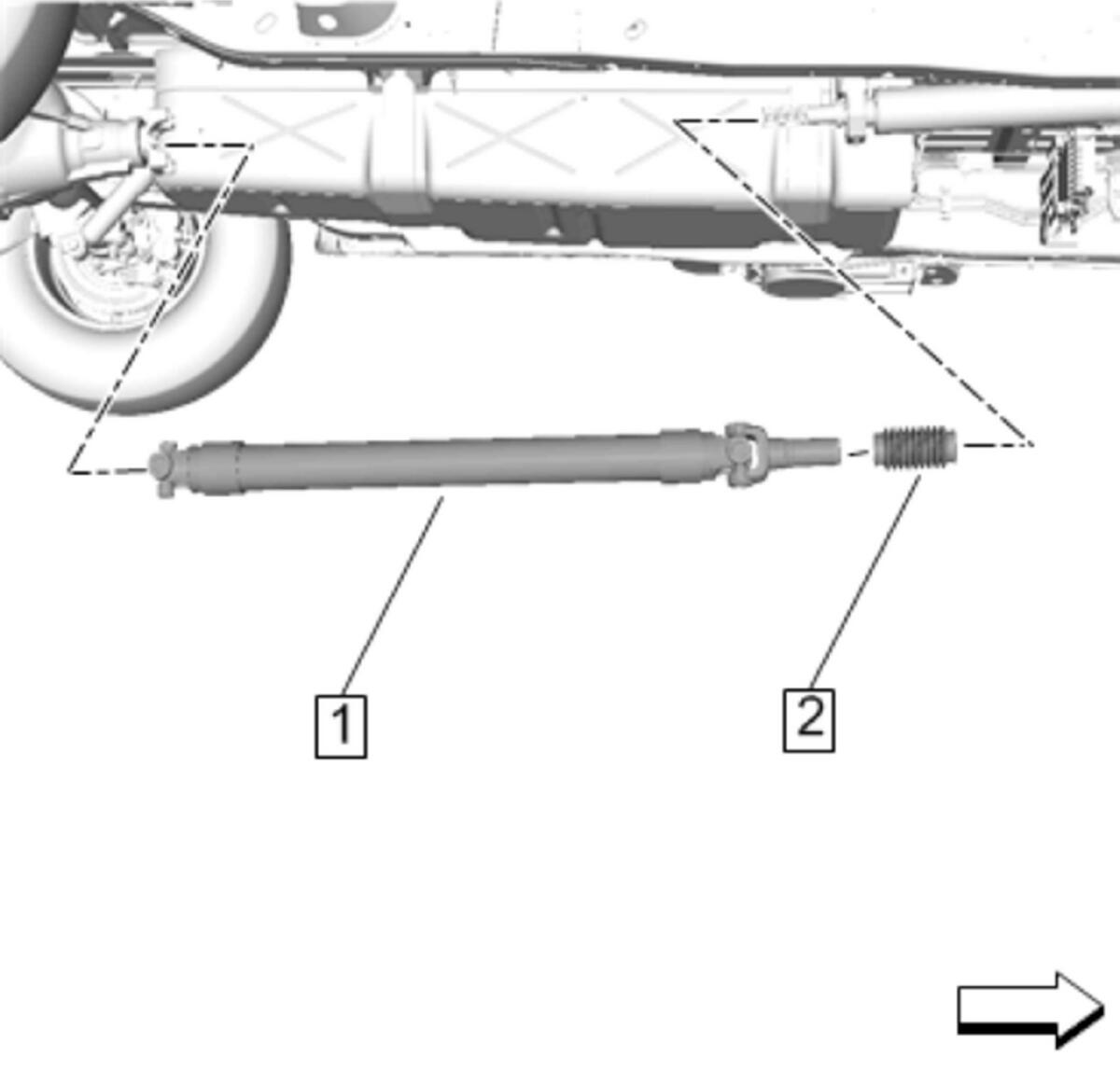

- Rear Propeller Shaft (1) - Remove
- Propeller Shaft Slip Yoke Boot (2) - Remove and DISCARD
Observe and accurately reference mark all driveline components relative to the propeller shaft and axles before disassembly. These components include the propeller shafts, the drive axles, the pinion flanges, the output shafts, etc. All components must be reassembled in the exact relationship to each other as they were when removed. In addition, published specifications and torque values, as well as any measurements made prior to disassembly must be followed.
