Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

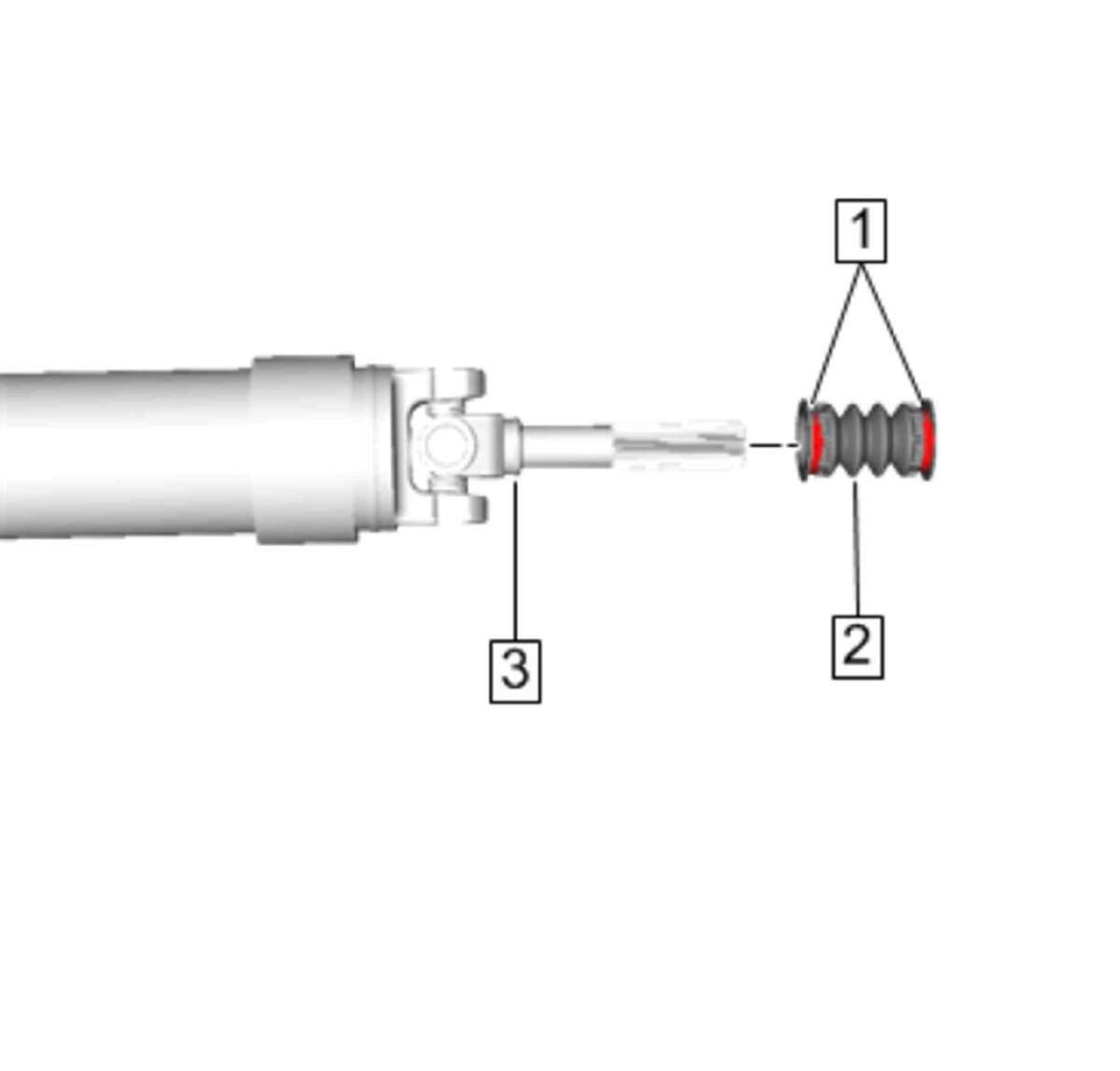

Loosely install the NEW propeller shaft slip yoke boot clamps (1) to the propeller shaft slip yoke boot (2).
- Install the propeller shaft slip yoke boot (2) to the propeller shaft slip yoke (3).
- Inspect the splines of the propeller shaft slip yoke for a sufficient coating of lubricant. If the splines of the slip yoke do NOT have a sufficient coating, lubricate the internal slip yoke splines with clean transmission fluid. Adhesives, Fluids, Lubricants, and Sealers

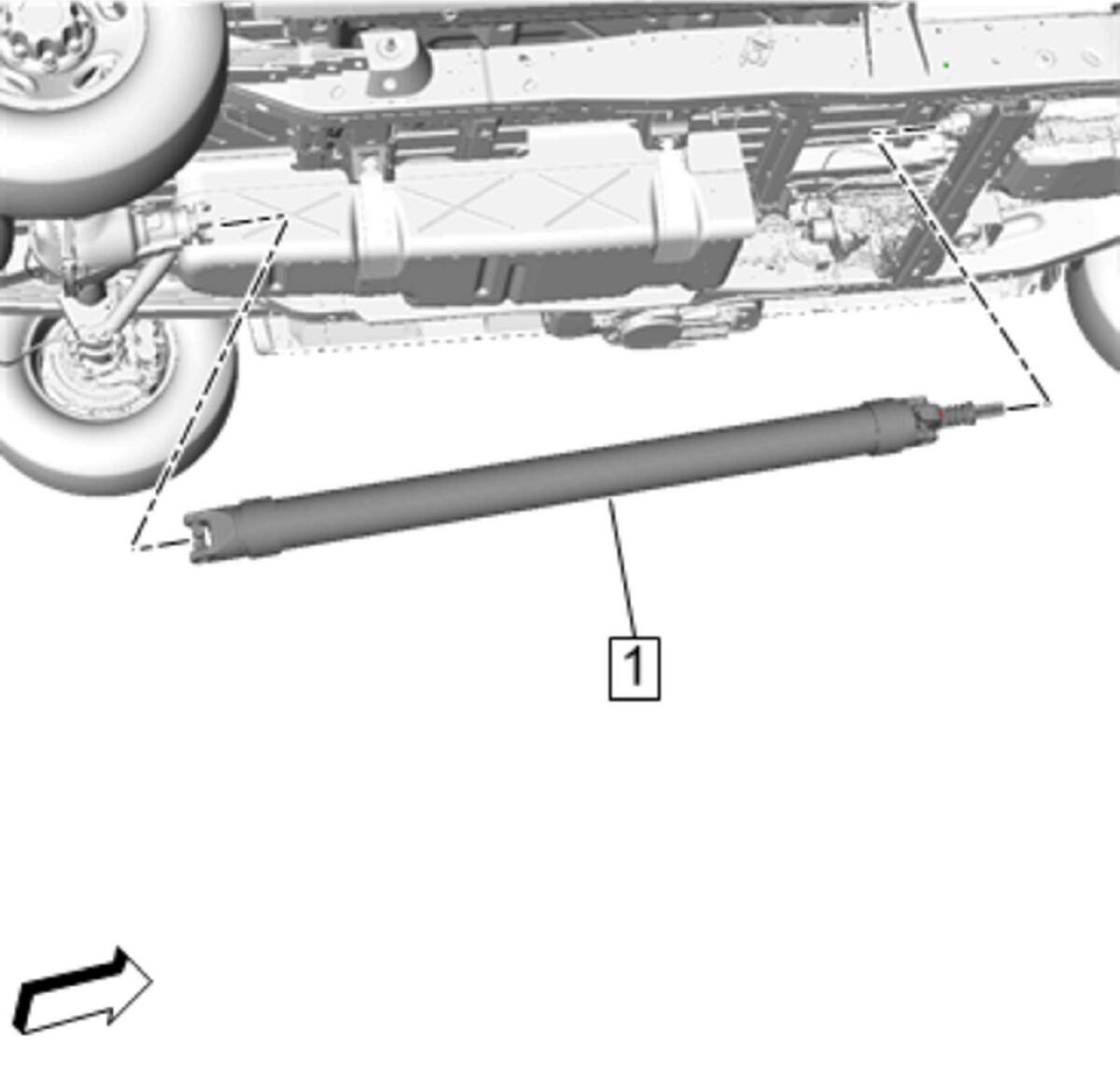

Propeller Shaft(1) - Install
- Align the reference marks made during removal.

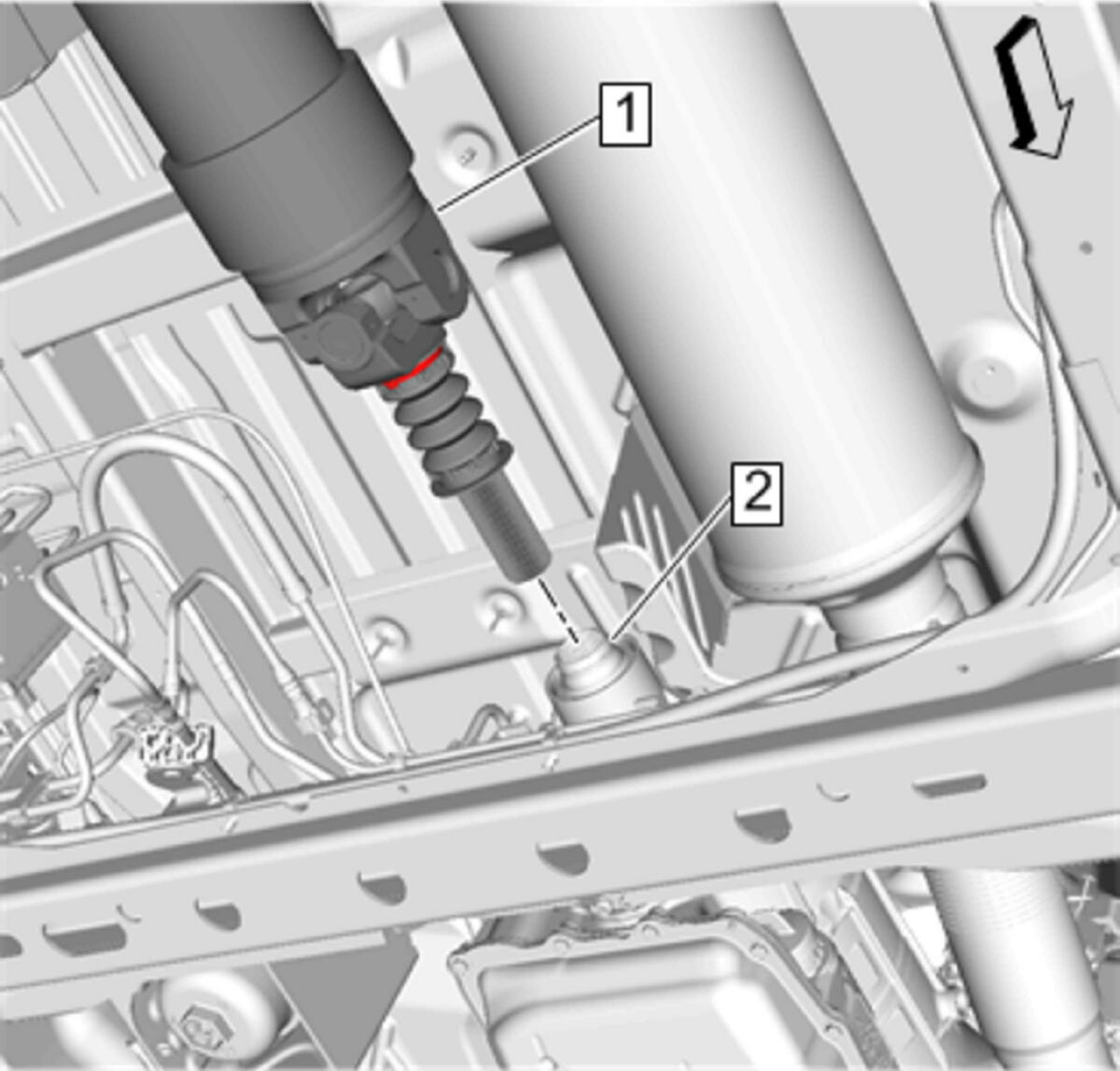

Propeller Shaft(1)@Transmission Output Shaft (2) - Install

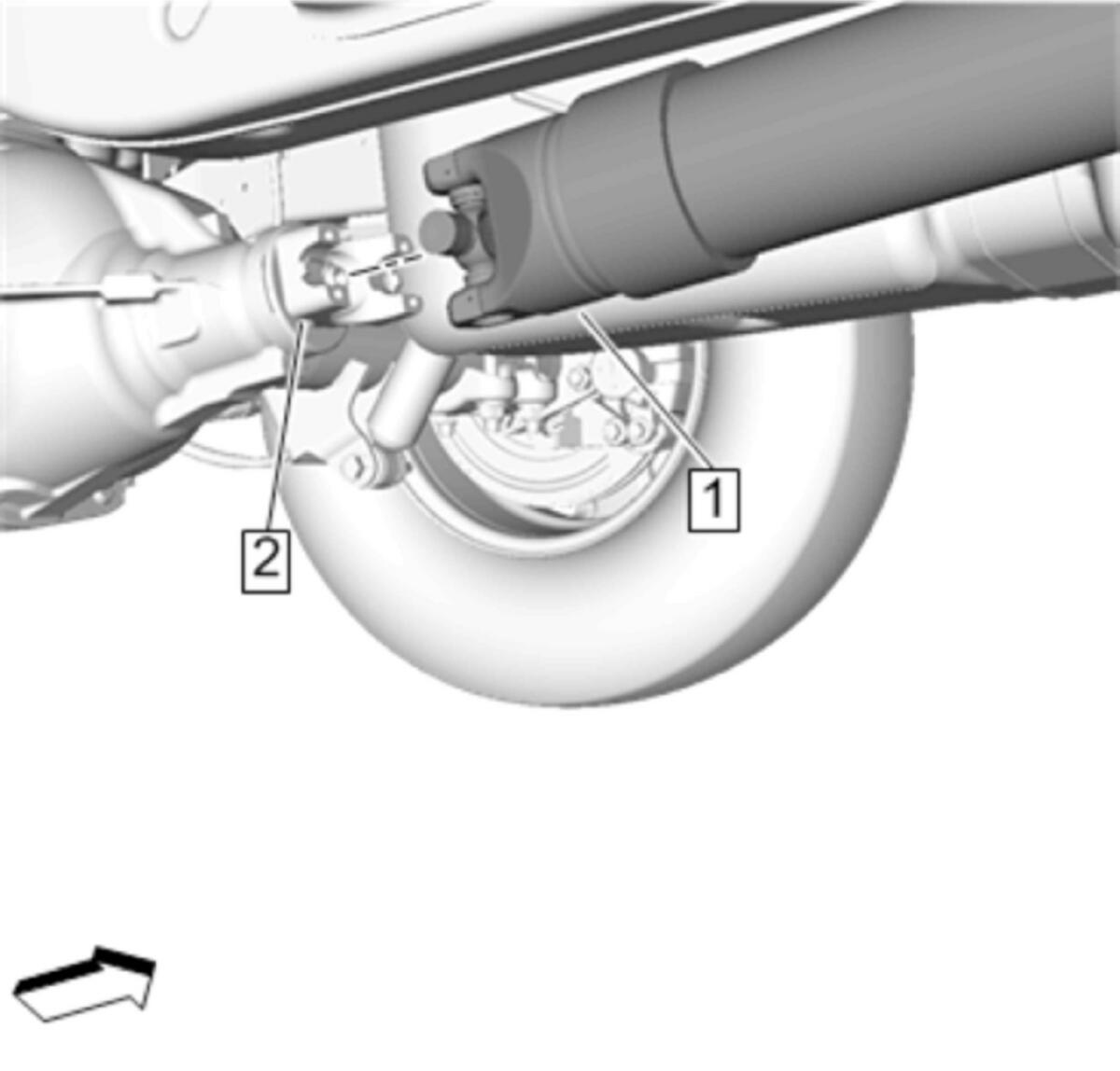

Propeller Shaft(1)@Pinion Flange Assembly (2) - Install

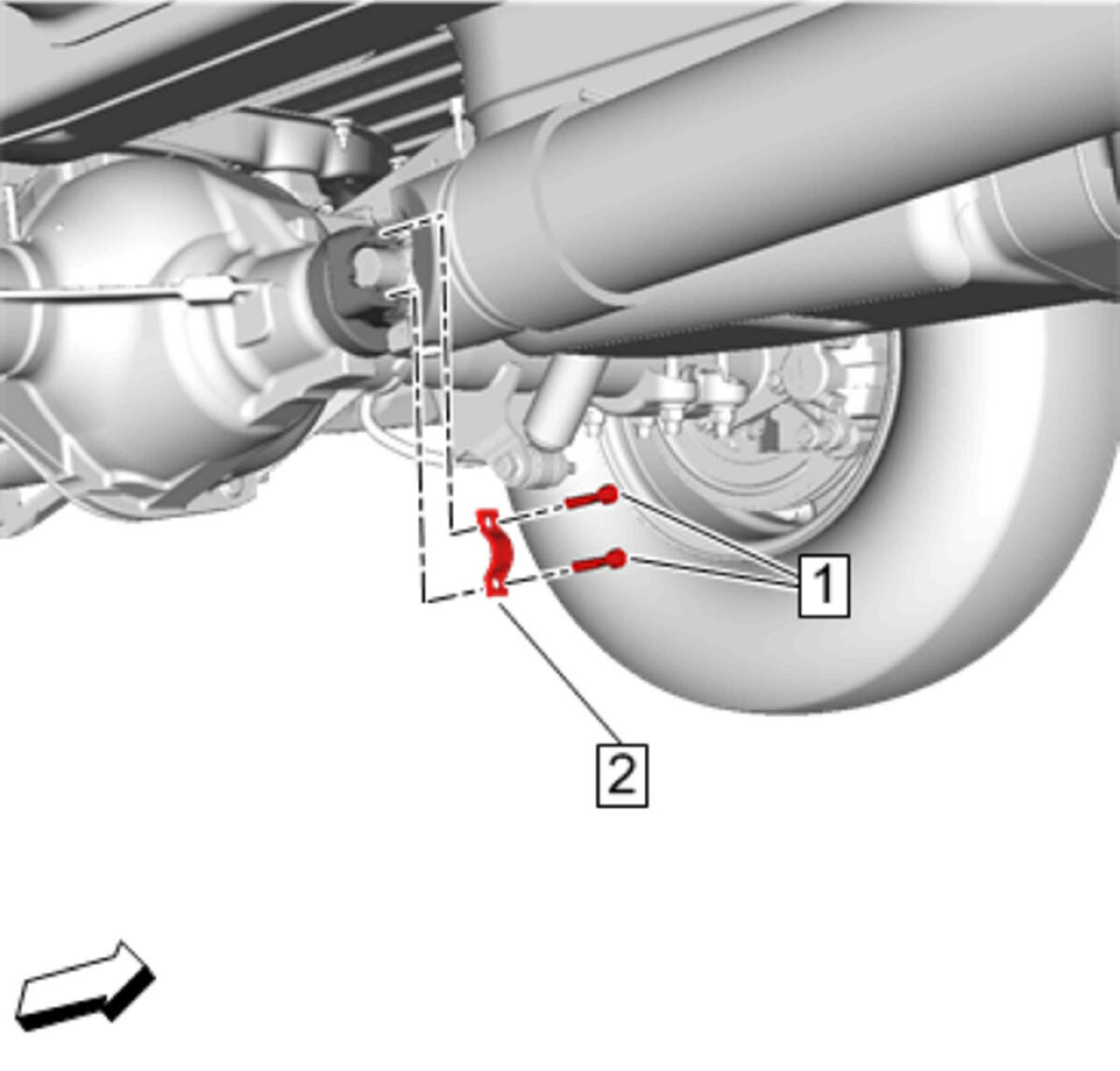

Rear Propeller Shaft Retainer(2) - Install NEW retainers. Do NOT reuse old retainers.[2x]
- Rear Propeller Shaft Bolt(1) - Install NEW bolts.[4x]Tighten 25 N.m (18 lb ft)
- Ensure that the propeller shaft slip yoke boot is properly installed to the grooves on the transmission output shaft and the propeller shaft slip yoke.

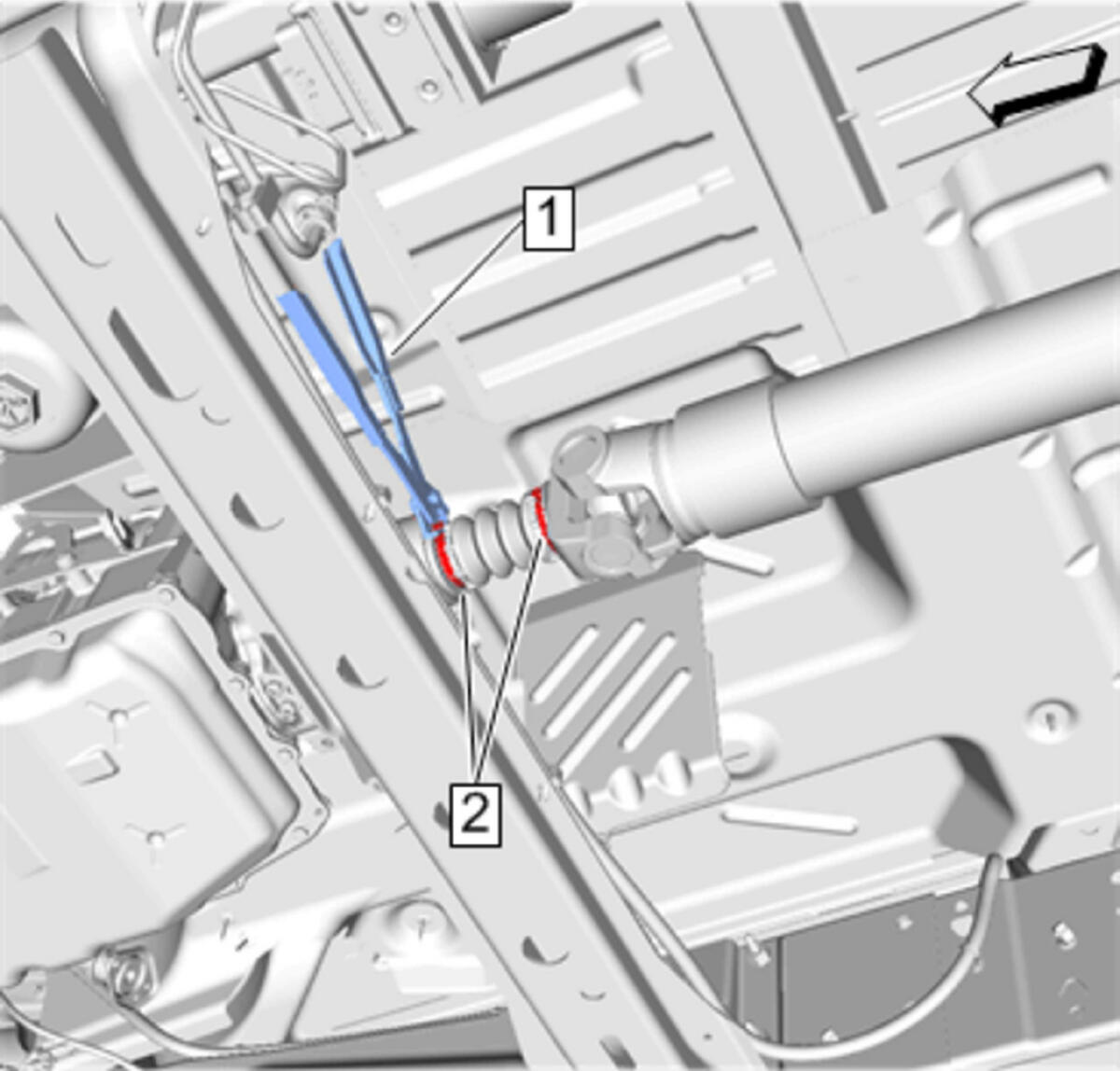

Use the J-43218 Clamp Pliers - Narrow Jaw (1) to crimp both propeller shaft slip yoke boot clamps (2).
- Lower the vehicle.
CAUTION:
Refer to Fastener Caution .
