Propeller Shaft Rear Slip Yoke Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

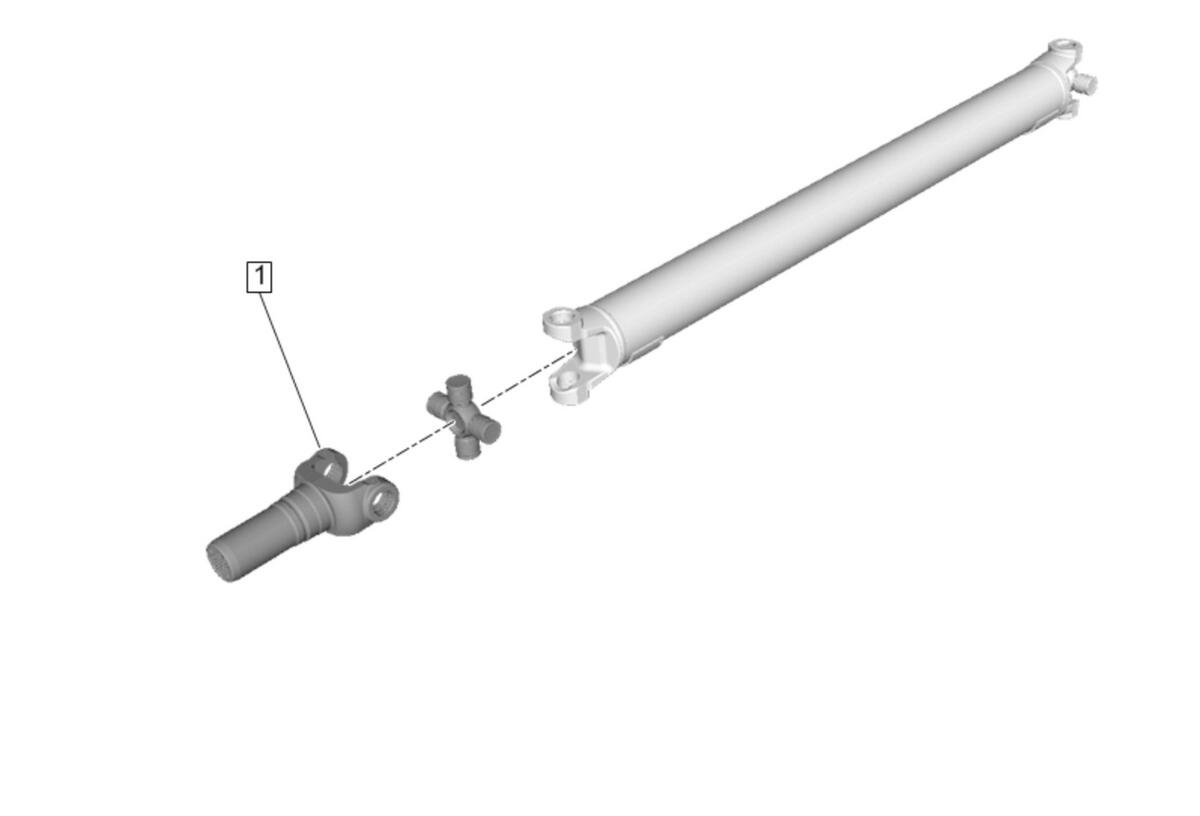

Callout	Component Name
Preliminary Procedures Propeller Shaft Slip Yoke Boot Replacement (Front to Rear Propeller Shaft Interface) Propeller Shaft Universal Joint@ Propeller Shaft Rear Slip Yoke - Remove and DISCARD Universal Joint Replacement
1	Propeller Shaft Rear Slip Yoke NOTE: Use a NEW universal joint, do not reuse the old universal joint.

Callout

Component Name

Preliminary Procedures

Propeller Shaft Slip Yoke Boot Replacement (Front to Rear Propeller Shaft Interface)
Propeller Shaft Universal Joint@ Propeller Shaft Rear Slip Yoke - Remove and DISCARD Universal Joint Replacement

Propeller Shaft Rear Slip Yoke

NOTE:

Use a NEW universal joint, do not reuse the old universal joint.
