Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Propeller Shaft Hanger (2) - Install
- Propeller Shaft Hanger Bolt (1) - Install and tighten[2x]52 N.m (38 lb ft)

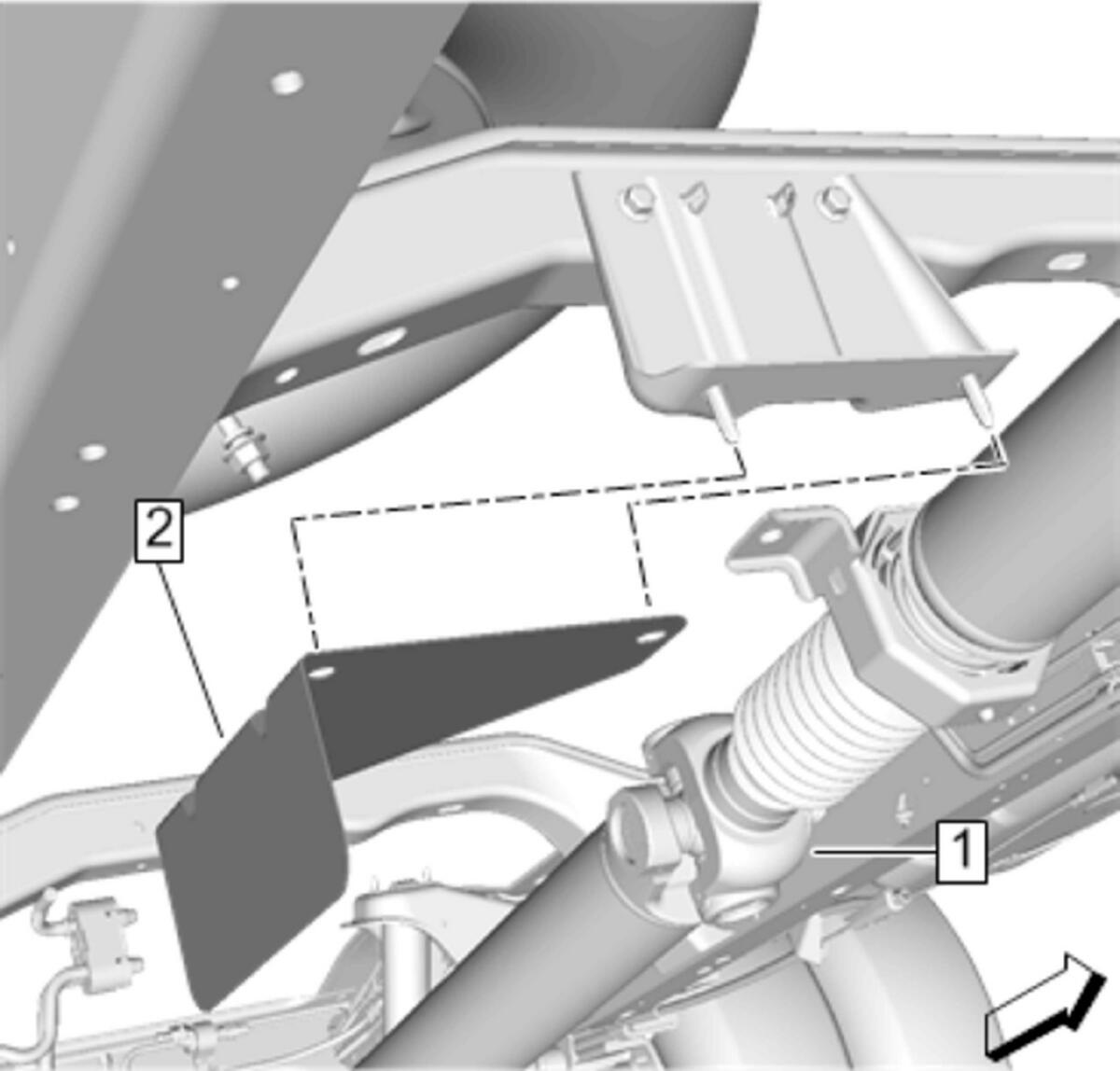

Propeller Shaft Center Support Bearing Shield (2) - Install
- Raise the front and rear propeller shaft into position using the jack.
Front Propeller Shaft Bearing Nut (1)@ Propeller Shaft Center Support Bearing (2) - Install and tighten[2x] - Front and Rear Propeller Shaft Replacement (With M5U) , or Front and Rear Propeller Shaft Replacement (With MYD) , or Front and Rear Propeller Shaft Replacement (Chassis Cab with MYD) , or Front and Rear Propeller Shaft Replacement (Chassis Cab with M5U)
- Remove the jack supporting the front and rear propeller shaft.
- Lower the vehicle.
CAUTION:
Refer to Fastener Caution .
