Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Lifting and Jacking the Vehicle .

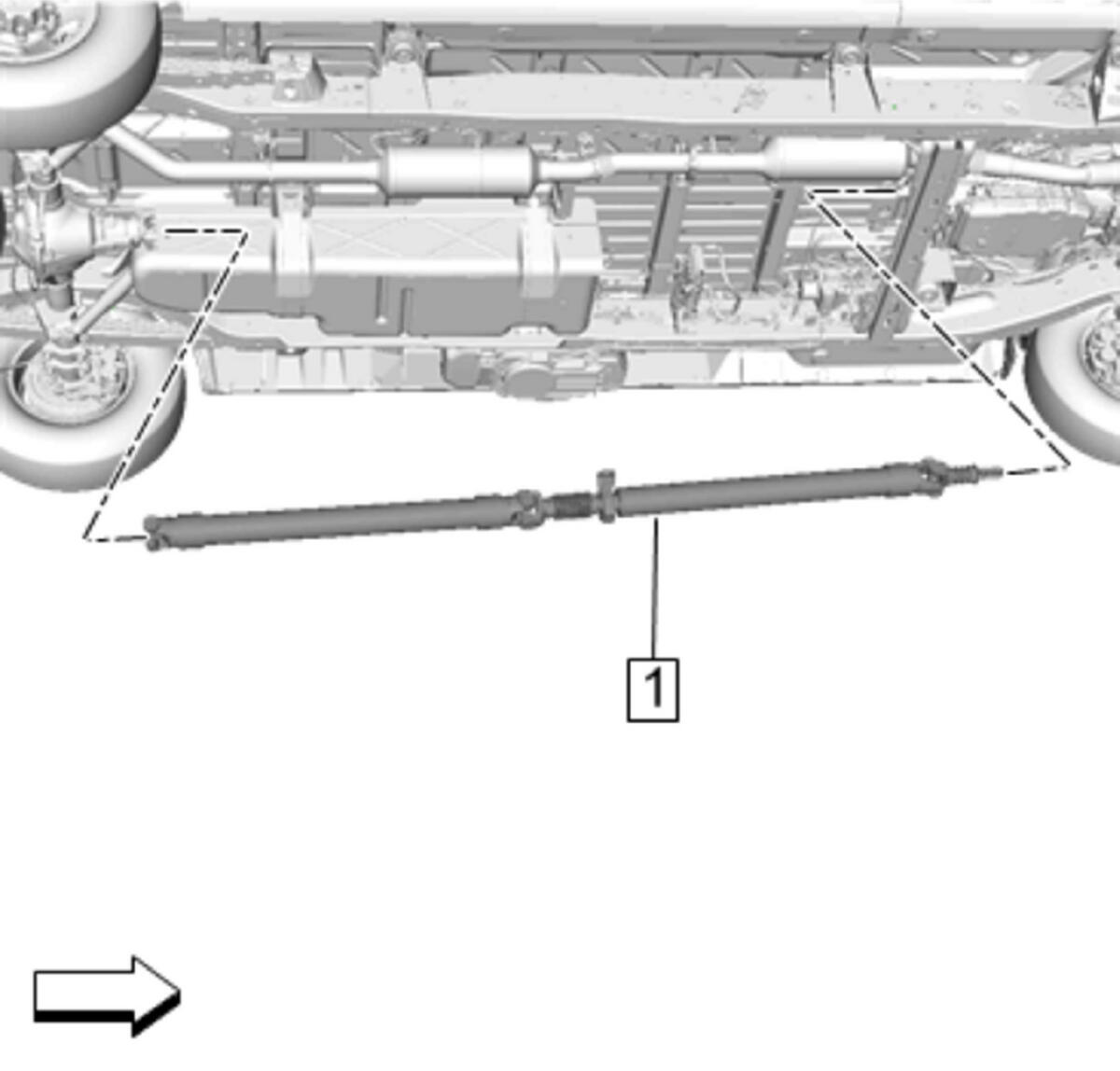

Front and Rear Propeller Shaft (1) - Remove - Front and Rear Propeller Shaft Replacement (With M5U) , or Front and Rear Propeller Shaft Replacement (With MYD) , or Front and Rear Propeller Shaft Replacement (Chassis Cab with MYD) , or Front and Rear Propeller Shaft Replacement (Chassis Cab with M5U) .
Propeller Shaft Slip Yoke Boot (2) - Remove - Propeller Shaft Slip Yoke Boot Replacement (Front to Rear Propeller Shaft Interface)
Install the J-39477 Puller Kit (1) to the propeller shaft center support bearing (2).
- Position the J-39477 Puller Kit (1) in a vise.
- Using the J-39477 Puller Kit (1), remove the propeller shaft center support bearing (2)with the propeller shaft center support bearing retainer from the propeller shaft front tube, discard the retainer.
