Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Position the propeller shaft front tube (3)in a vertical position resting on a block of wood.

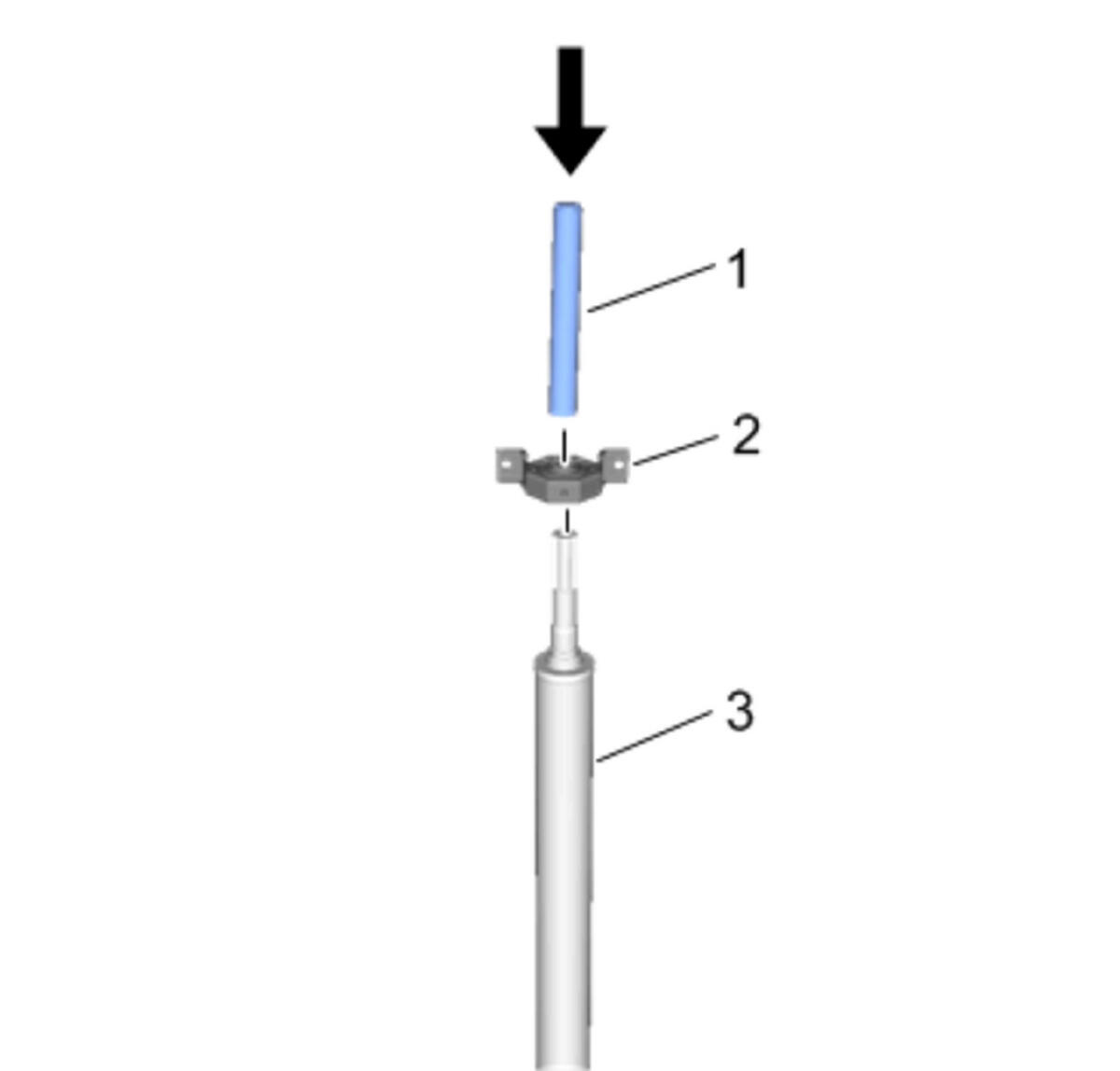

- Propeller Shaft Center Support Bearing (2) - Loosely install
- Drive the propeller shaft center support bearing (2)in the direction shown by the arrow using J-25234 Gear and Bearing Installer (1)until firmly seated on the propeller shaft front tube (3).

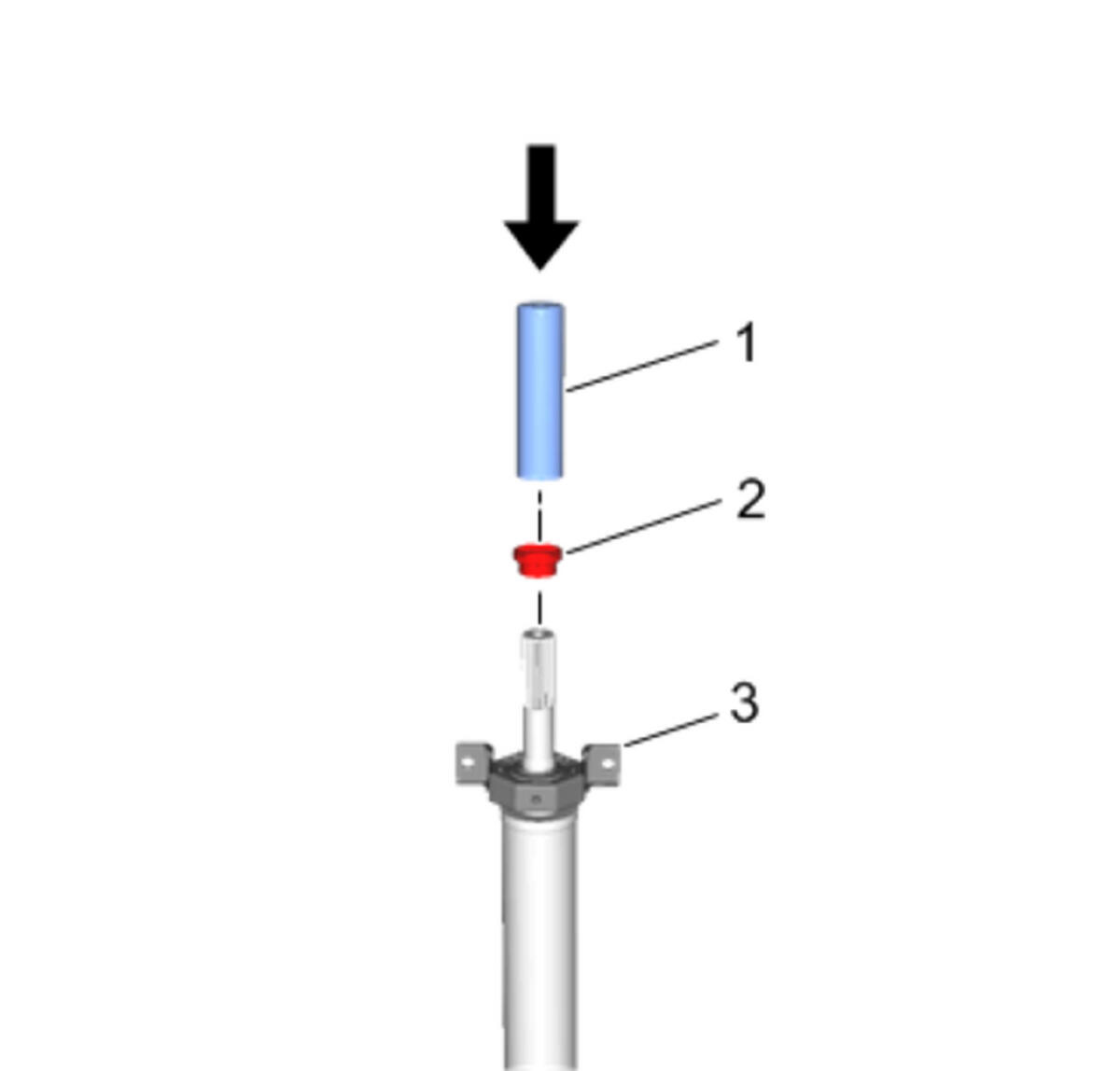

Propeller Shaft Center Support Bearing Retainer (2) - Install NEW
- Drive the propeller shaft center support bearing retainer (2)in the direction shown by the arrow using J-25234 Gear and Bearing Installer (1)until firmly seated into the propeller shaft center support bearing (3).
Propeller Shaft Slip Yoke Boot (2) - Install - Propeller Shaft Slip Yoke Boot Replacement (Front to Rear Propeller Shaft Interface)
Front and Rear Propeller Shaft (1) - Install - Front and Rear Propeller Shaft Replacement (With M5U) , or Front and Rear Propeller Shaft Replacement (With MYD) , or Front and Rear Propeller Shaft Replacement (Chassis Cab with MYD) , or Front and Rear Propeller Shaft Replacement (Chassis Cab with M5U) .
- Lower the vehicle.
