Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the splines of the propeller shaft slip yoke for a sufficient coating of lubricant. If the splines of the slip yoke do NOT have a sufficient coating, lubricate the internal slip yoke splines with clean transmission fluid. Adhesives, Fluids, Lubricants, and Sealers
Propeller Shaft(1) - Install with assistance.
- Align the reference marks made during removal.
Propeller Shaft(1)@Transmission Output Shaft (2) - Install
- CAUTION:
Refer to Fastener Caution .

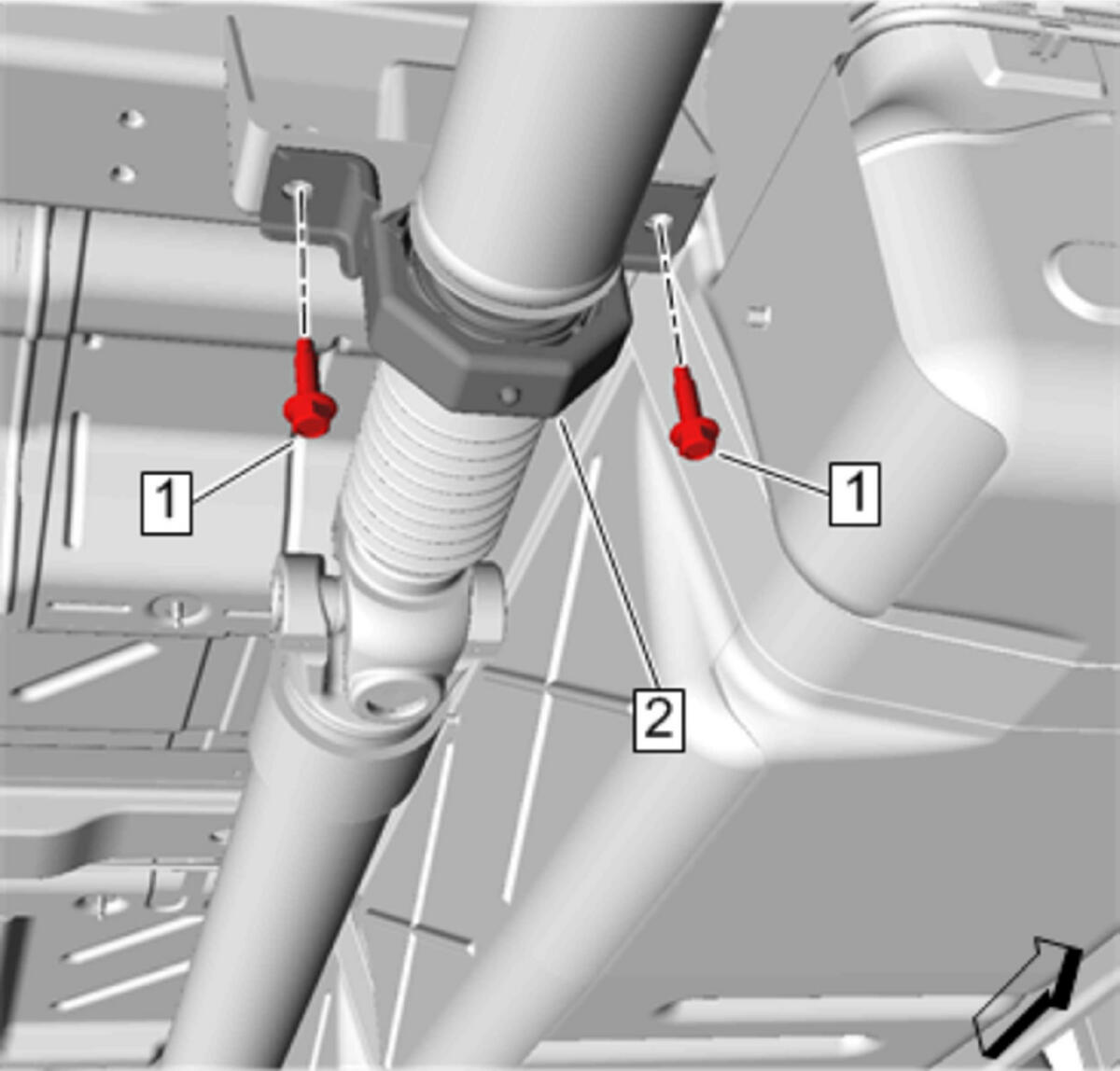

Front Propeller Shaft Bearing Bolt (1)@ Propeller Shaft Center Support Bearing (2) - Install and tighten[2x]40 N.m (30 lb ft)
Propeller Shaft(1)@Pinion Flange Assembly (2) - Install
- Remove the jack supporting the front and rear propeller shaft.
Rear Propeller Shaft Retainer(2) - Install NEW retainers. Do NOT reuse old retainers.[2x]
- Rear Propeller Shaft Bolt(1) - Install NEW bolts.[4x]Tighten 25 N.m (18 lb ft)
- Lower the vehicle.
