Front and Rear Propeller Shaft with M5U
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

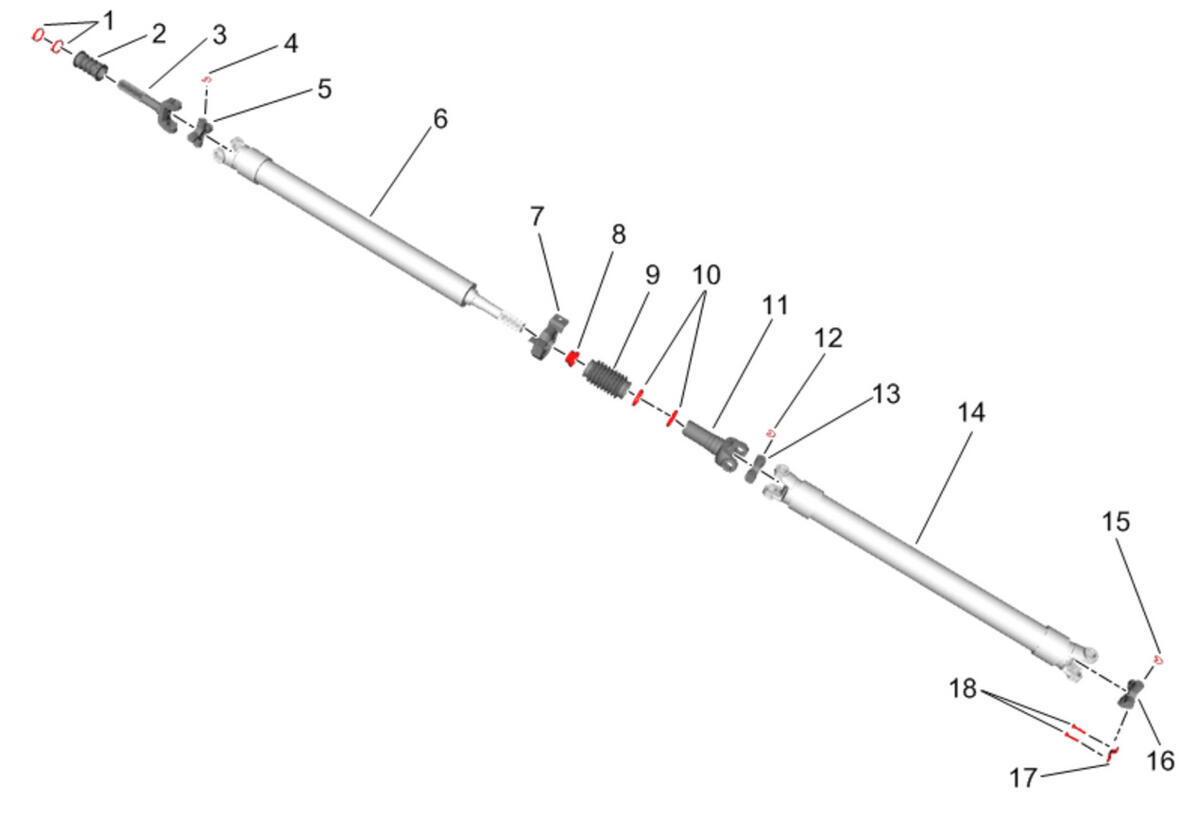

| Callout | Component Name |
|---|---|
| 1 | Propeller Shaft Slip Yoke Boot Clamp |
| 2 | Propeller Shaft Slip Yoke Boot |
| 3 | Propeller Shaft Front Slip Yoke |
| 4 | Propeller Shaft Universal Joint Spider Bearing Retaining Ring |
| 5 | Propeller Shaft Universal Joint |
| 6 | Propeller Shaft Front Tube |
| 7 | Propeller Shaft Center Support Bearing |
| 8 | Propeller Shaft Center Support Bearing Retainer |
| 9 | Propeller Shaft Slip Yoke Boot |
| 10 | Propeller Shaft Slip Yoke Boot Clamp |
| 11 | Propeller Shaft Rear Slip Yoke |
| 12 | Propeller Shaft Universal Joint Spider Bearing Retaining Ring |
| 13 | Propeller Shaft Universal Joint |
| 14 | Propeller Shaft Rear Tube |
| 15 | Propeller Shaft Universal Joint Spider Bearing Retaining Ring |
| 16 | Propeller Shaft Universal Joint |
| 17 | Rear Propeller Shaft Retainer |
| 18 | Rear Propeller Shaft Bolt |
