Exhaust Muffler Heat Shield Replacement (LV1)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

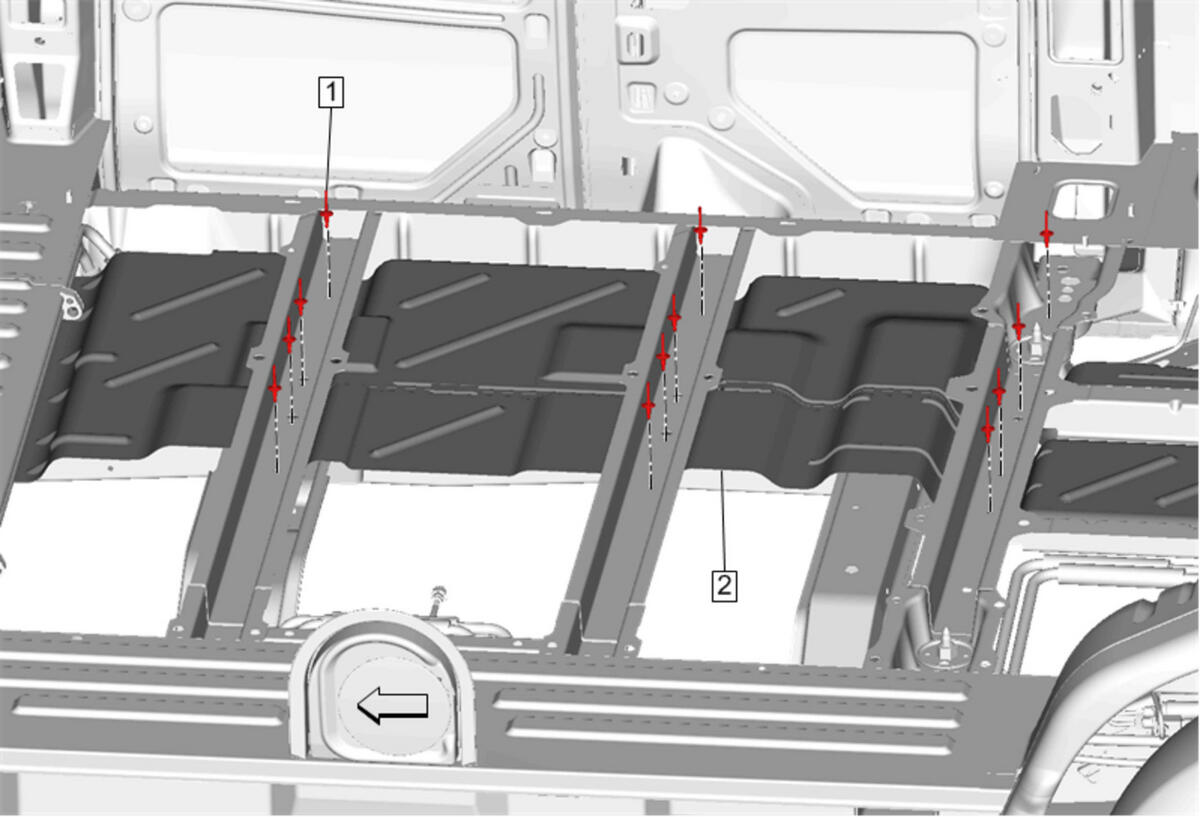

Callout	Component Name
WARNING: In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool. WARNING: Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury. Preliminary Procedures Catalytic Converter Heat Shield Replacement (LWN) , or Catalytic Converter Heat Shield Replacement (at Transmission LV1, L96, LC8) Rear Floor Replacement
1	Exhaust System Rivet [12x] Procedure Using a 1/4 inch (6 mm) drill bit, remove the exhaust system rivets from the heat shield. Using the M-39010 Rivet Gun install the NEW exhaust system rivets. Special Tool M-39010 Rivet Gun Equivalent regional tools: Special Tools
2	Exhaust Muffler Heat Shield

Callout

Component Name

WARNING:

In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.

WARNING:

Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury.

Preliminary Procedures

Catalytic Converter Heat Shield Replacement (LWN) , or Catalytic Converter Heat Shield Replacement (at Transmission LV1, L96, LC8)
Rear Floor Replacement

Exhaust System Rivet [12x]

Procedure

Using a 1/4 inch (6 mm) drill bit, remove the exhaust system rivets from the heat shield.
Using the M-39010 Rivet Gun install the NEW exhaust system rivets.

Special Tool
M-39010 Rivet Gun
Equivalent regional tools: Special Tools

Exhaust Muffler Heat Shield
