Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Engine Cover - Remove - Engine Cover Replacement
- Spark Plug Wire-Left Side @ Spark Plug - Remove and position aside [3x] - Spark Plug Wire Replacement
- Oil Level Indicator Tube - Remove - Oil Level Indicator Tube Replacement (Upper) , or Oil Level Indicator Tube Replacement (Lower)
Exhaust Front Pipe Nut (1) @ Left Side - Remove [3x] - Warm Up Three-Way Catalytic Converter Replacement (LV1)

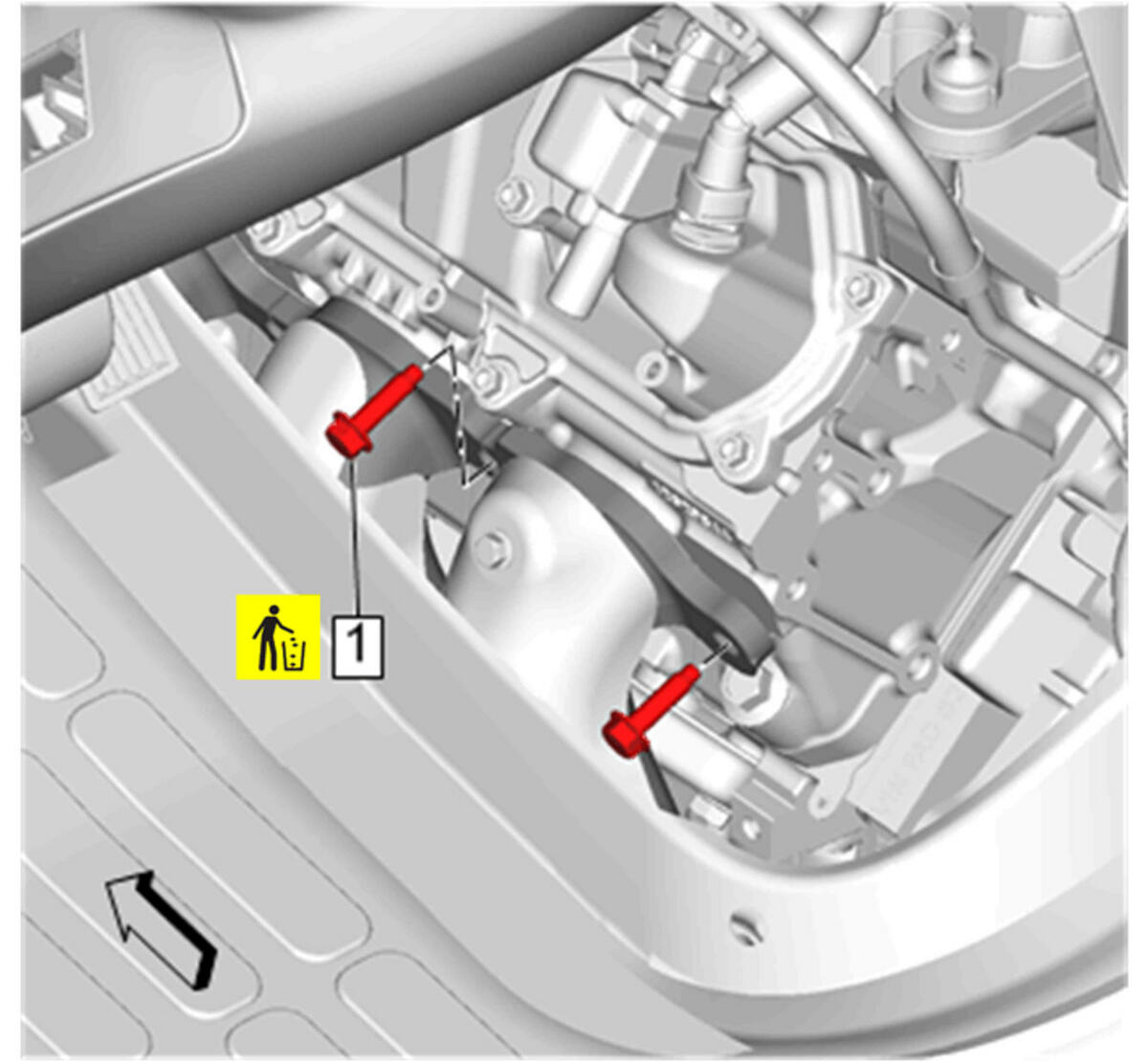

Exhaust Manifold Bolt (1) - Remove and DISCARD [2x]

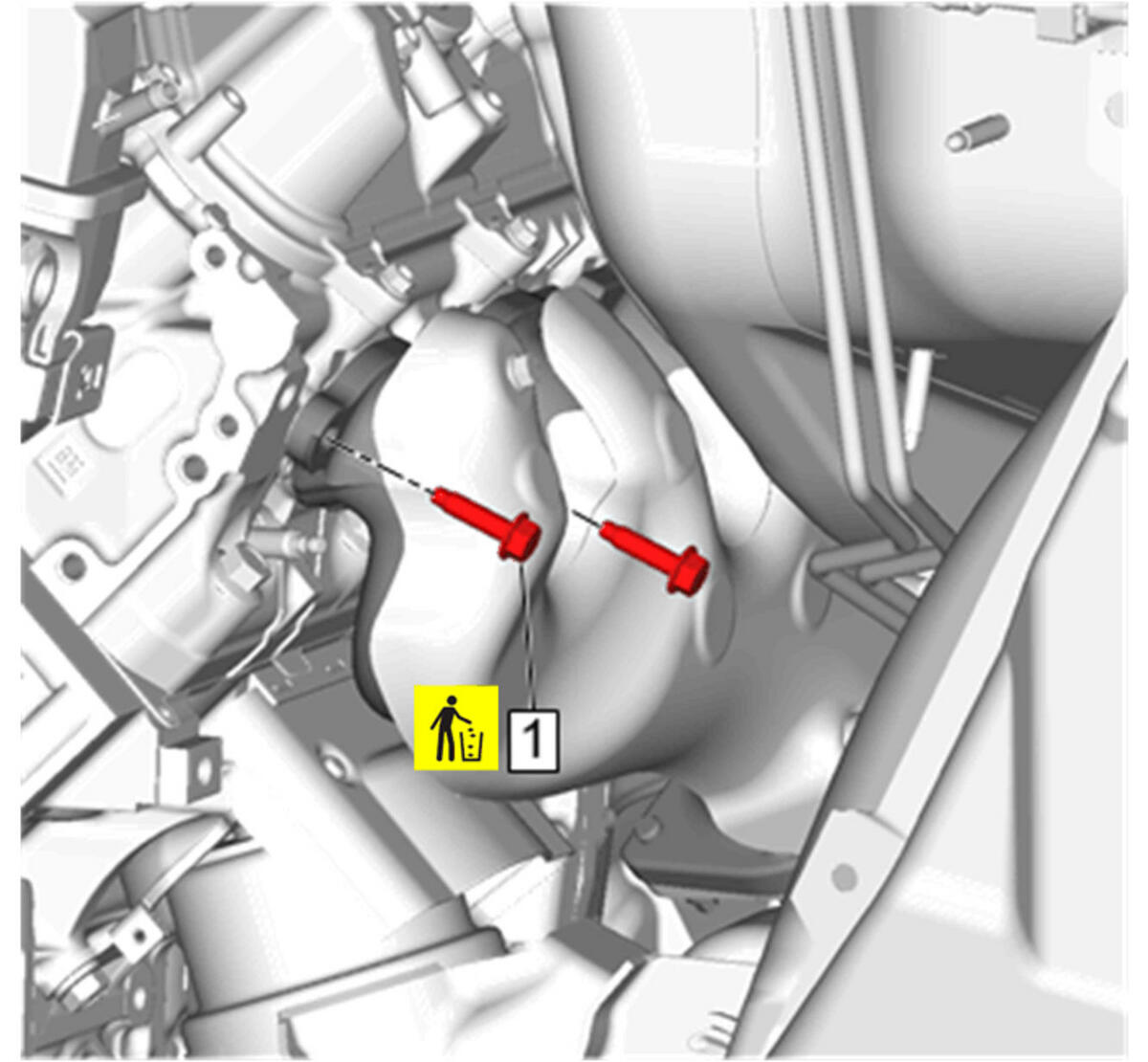

Exhaust Manifold Bolt (1) - Remove and DISCARD [2x]
Exhaust Manifold (1) @ Left Side - Remove
- Exhaust Manifold Gasket (2) - Remove and DISCARD
- Transfer components as necessary.
