Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
The cylinder head exhaust manifold bolt hole threads must be clean and free of debris or threadlocking material.

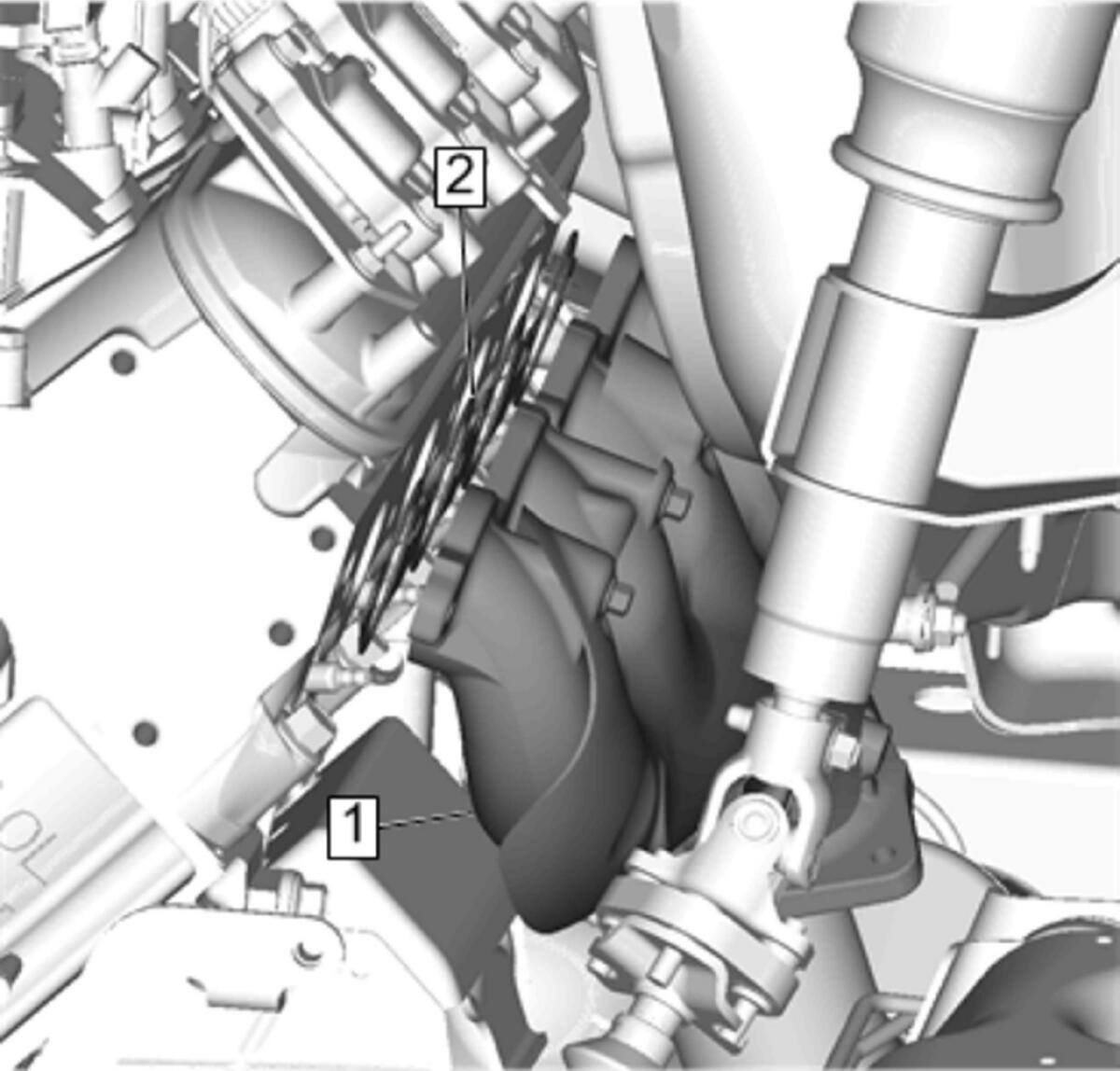

Exhaust Manifold Gasket (2) - Install NEW
- Exhaust Manifold (1) @ Left Side - Install

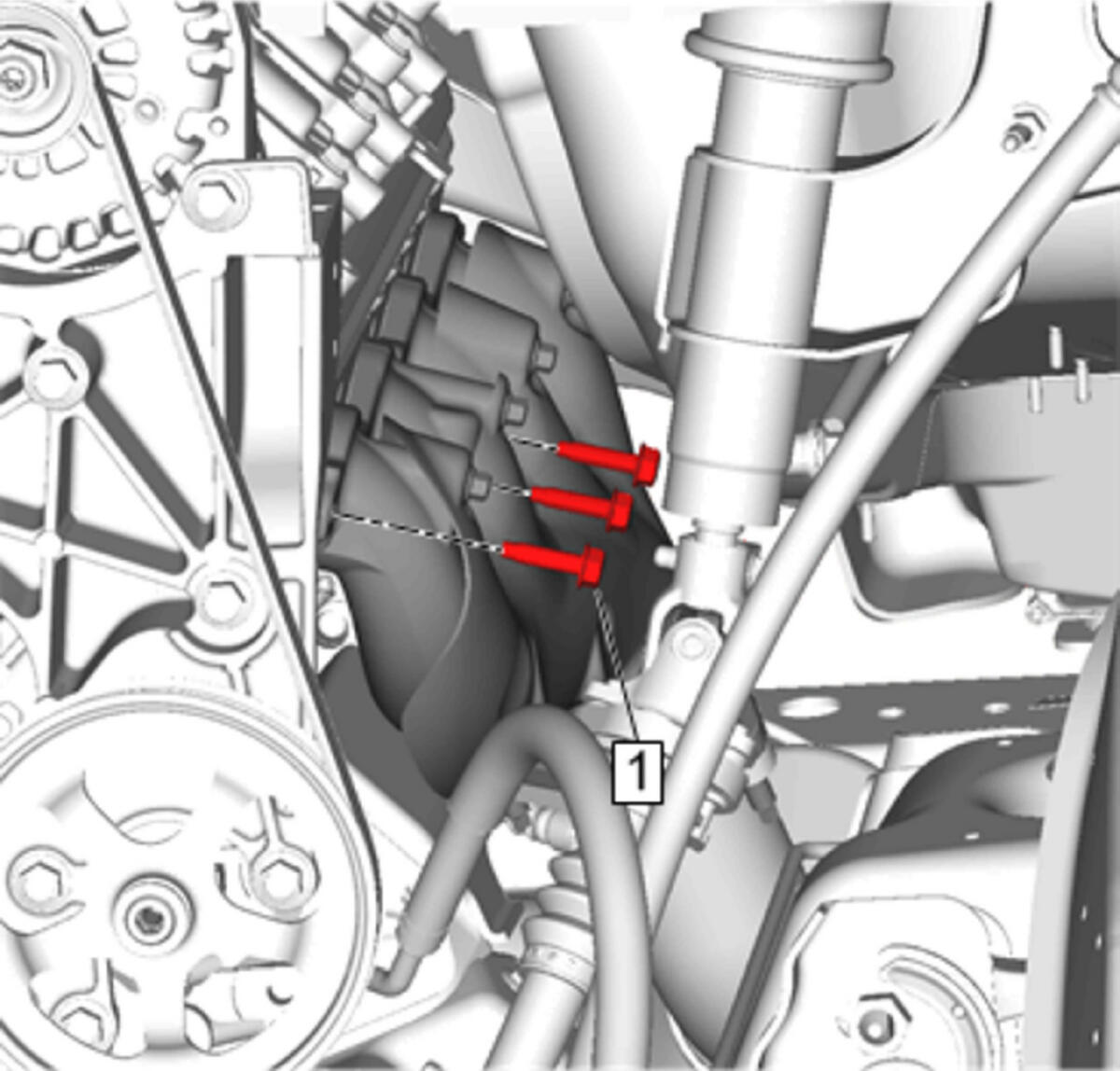

Exhaust Manifold Bolt (1) - Install NEW [3x]

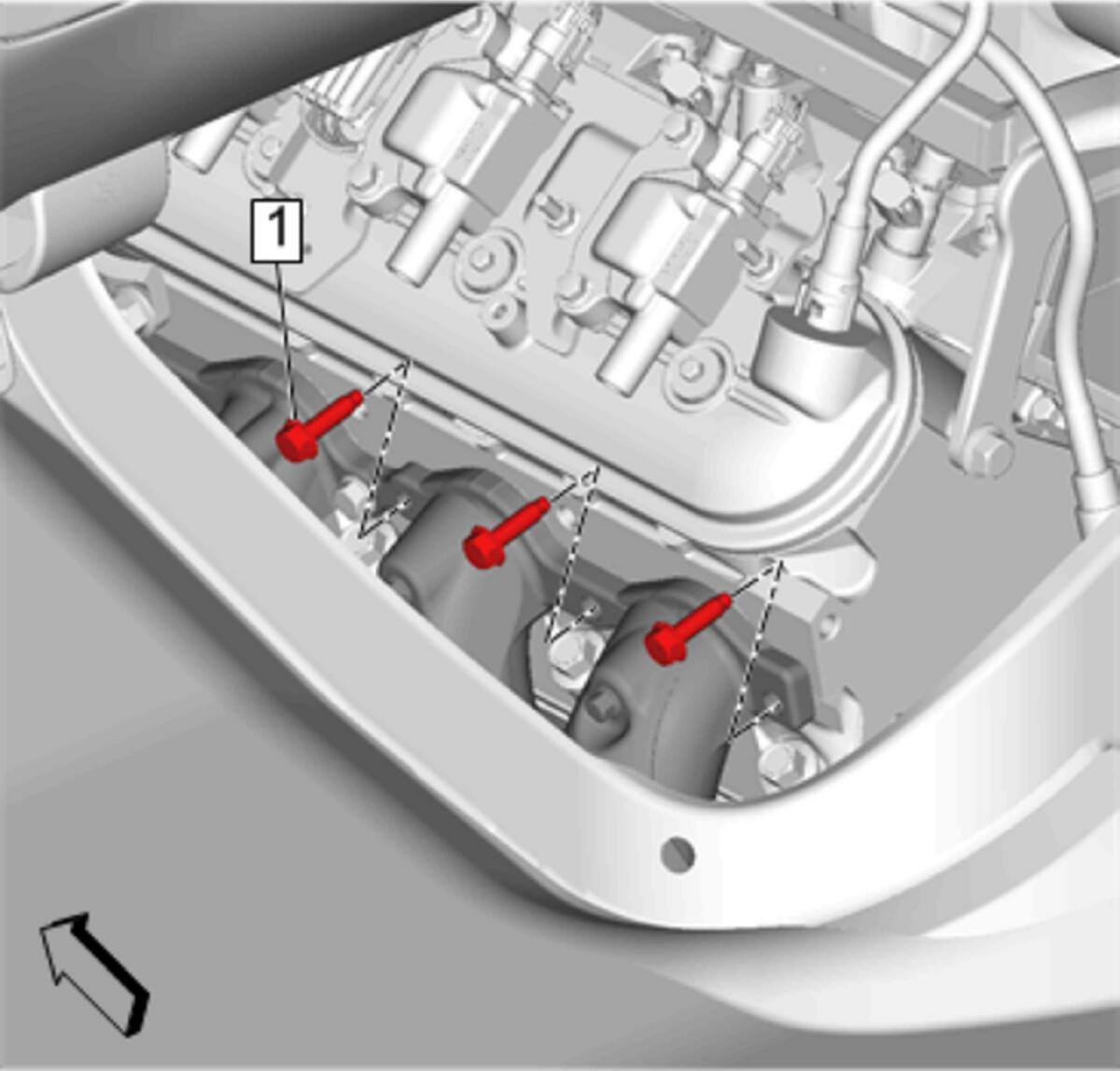

Exhaust Manifold Bolt (1) - Install NEW [3x]
- Exhaust Manifold Bolt - Tighten - Exhaust Manifold Installation - Left Side
Exhaust Front Pipe Nut (1) @ Left Side - Install and tighten [3x] - Catalytic Converter Replacement (LWN) , or Catalytic Converter Replacement (L96, LC8)
- Generator and Power Steering Pump Bracket - Install - Generator and Power Steering Pump Bracket Replacement (L96, LC8)
- Spark Plug Wire-Left Side @ Spark Plug - Install [4x] - Spark Plug Wire Replacement
- Inspect the exhaust system for leaks.
- Engine Cover - Install - Engine Cover Replacement
