Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

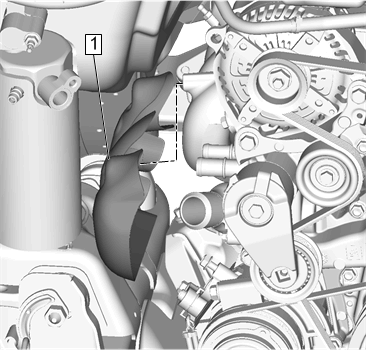

  1. GM4847368Courtesy of GENERAL MOTORS COMPANY

    Exhaust Manifold Heat Shield (1) @ Right Side - Install

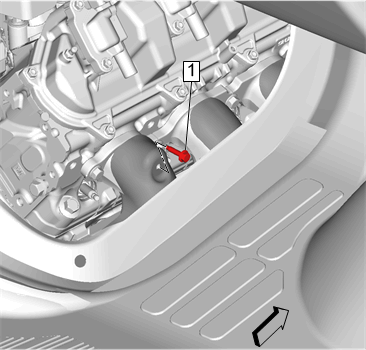

  2. GM4847356Courtesy of GENERAL MOTORS COMPANY

    Exhaust Manifold Heat Shield Bolt (1) @ Right Side - Install, but do NOT tighten

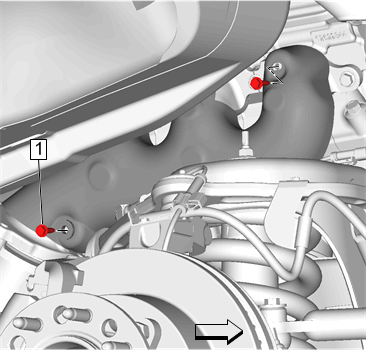

  3. GM4847337Courtesy of GENERAL MOTORS COMPANY

    Exhaust Manifold Heat Shield Bolt (1) @ Right Side - Install, but do NOT tighten [2x]

    4. CAUTION:

    Refer to Fastener Caution .

  4. Exhaust Manifold Heat Shield Bolt - Tighten [3x] 10 N.m (89 lb in)
  5. Spark Plug Wire-Right Side @ Spark Plug - Install [3x] - Spark Plug Wire Replacement

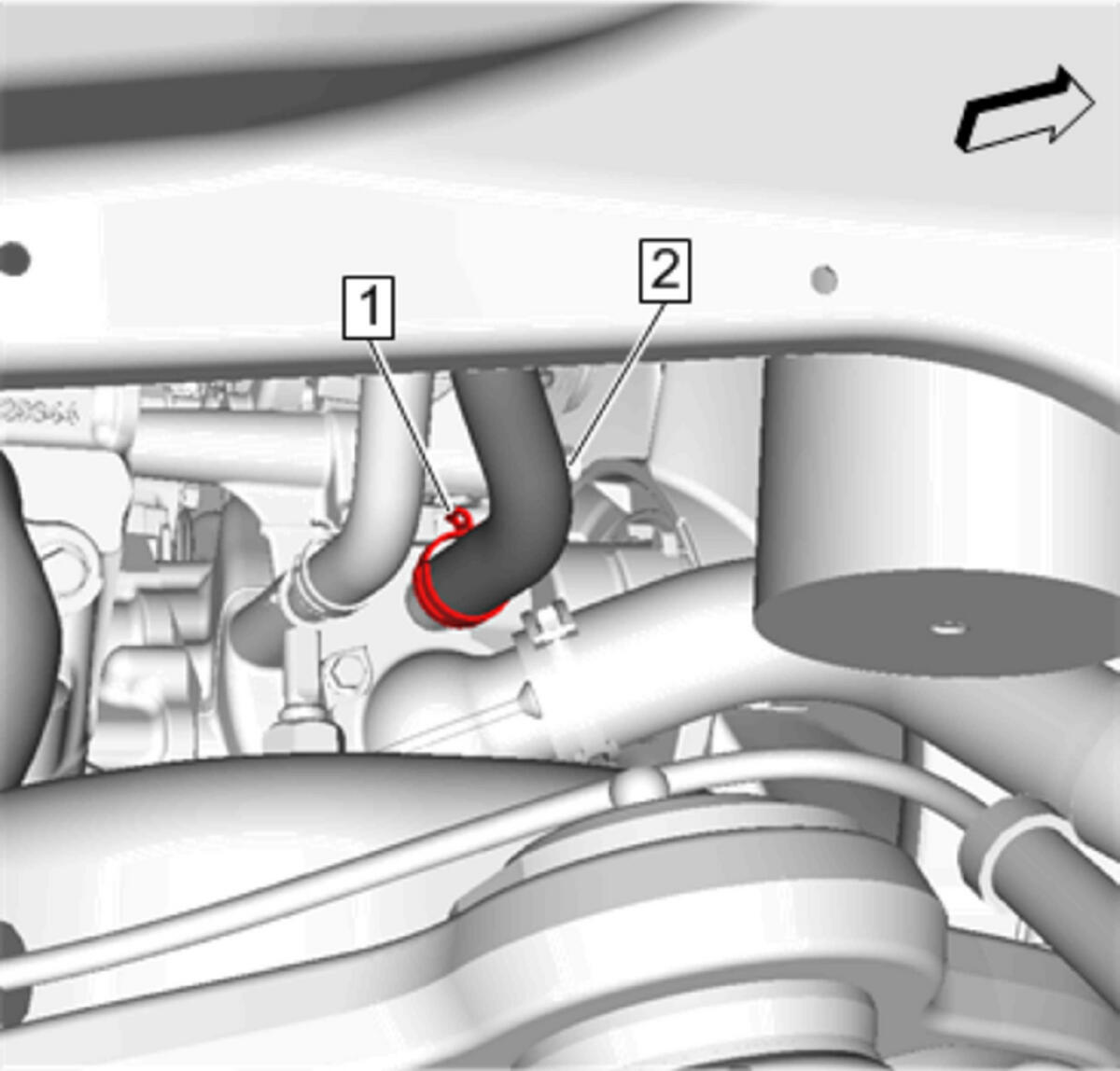

  6. GM4847520Courtesy of GENERAL MOTORS COMPANY

    Heater Outlet Hose (2) @ Water Pump - Install - Heater Outlet Hose Replacement (LWN with C69) , or Heater Outlet Hose Replacement (LWN Auxiliary Heater Outlet Hose) , or Heater Outlet Hose Replacement (LWN Water Pump Inlet Pipe to Heater Inlet and Outlet Pipe) , or Heater Outlet Hose Replacement (LWN without C69) , or Heater Outlet Hose Replacement (LV1 Water Pump to Heater Core Outlet Tube without C69) , or Heater Outlet Hose Replacement (LV1 Auxiliary Air Conditioning Evaporator Front Tube to Heater Core Outlet Tube with C69) , or Heater Outlet Hose Replacement (L96, LC8 Heater Water Flow Control Valve to Heater Core Outlet Tube) , or Heater Outlet Hose Replacement (L96, LC8 Water Pump Housing to Heater Water Flow Control Valve) , or Heater Outlet Hose Replacement (L96 Auxiliary Heater Inlet and Outlet Pipe to Heater Core Outlet Tube)

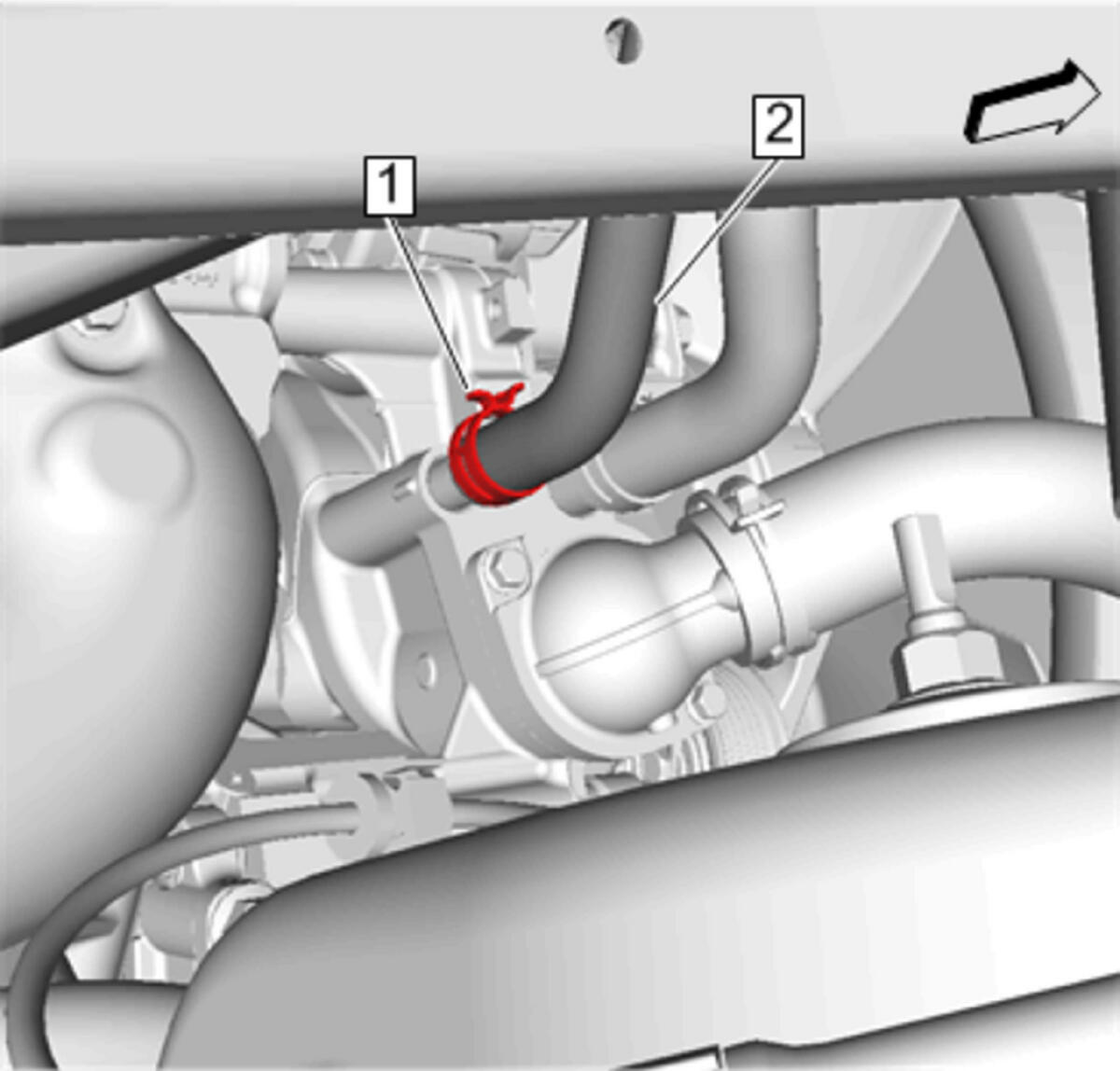

  7. GM4843188Courtesy of GENERAL MOTORS COMPANY

    Heater Inlet Hose (2) @ Water Pump - Install - Heater Inlet Hose Replacement (LWN with C69) , or Heater Inlet Hose Replacement (LWN Auxiliary Heater Inlet Hose) , or Heater Inlet Hose Replacement (LWN Water Pump Inlet Pipe to Heater Inlet and Outlet Pipe) , or Heater Inlet Hose Replacement (LWN without K08 Engine Coolant Thermostat to Heater Inlet and Outlet Pipe) , or Heater Inlet Hose Replacement (LWN without C69) , or Heater Inlet Hose Replacement (LV1 without C69) , or Heater Inlet Hose Replacement (LV1 Auxiliary Air Conditioning Evaporator Front Tube to Heater Core Inlet Tube with C69) , or Heater Inlet Hose Replacement (L96, LC8 Heater Water Flow Control Valve to Heater Core Inlet Tube) , or Heater Inlet Hose Replacement (L96, LC8 Water Pump Housing to Heater Water Flow Control Valve) , or Heater Inlet Hose Replacement (L96 Heater Core Inlet Tube to Auxiliary Heater Inlet and Outlet Pipe)

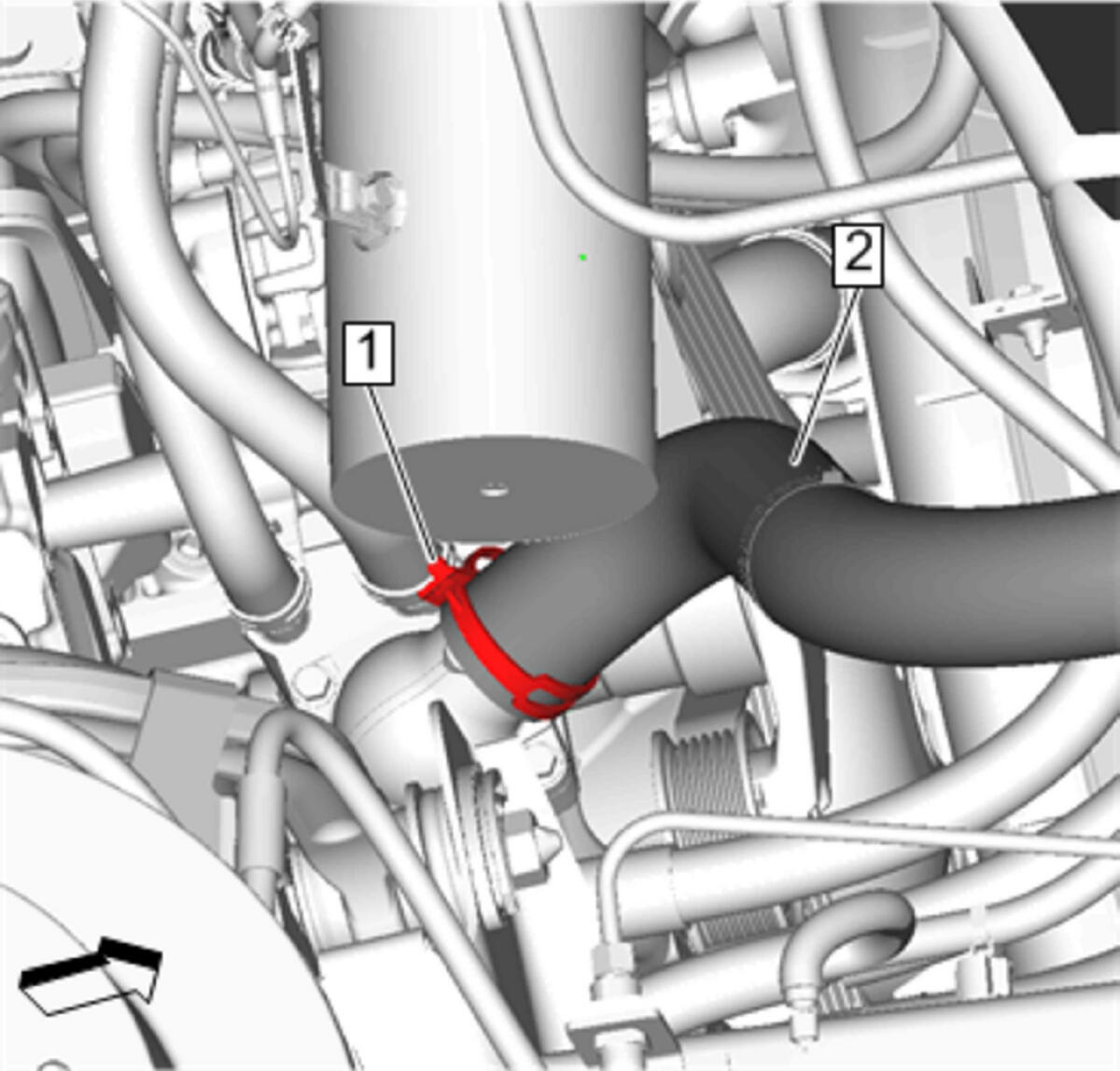

  8. GM4840808Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Hose (2) @ Water Pump - Install - Radiator Outlet Hose Replacement (LWN) , or Radiator Outlet Hose Replacement (LV1) , or Radiator Outlet Hose Replacement (L96, LC8)

  9. Coolant Recovery Reservoir - Install - Coolant Recovery Reservoir Replacement (LV1) , or Coolant Recovery Reservoir Replacement (L96, LC8)
  10. GM4589005Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Splash Shield-Right Side - Install - Wheelhouse Splash Shield Replacement (Right Side)

  11. Engine Cover - Install - Engine Cover Replacement
