Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

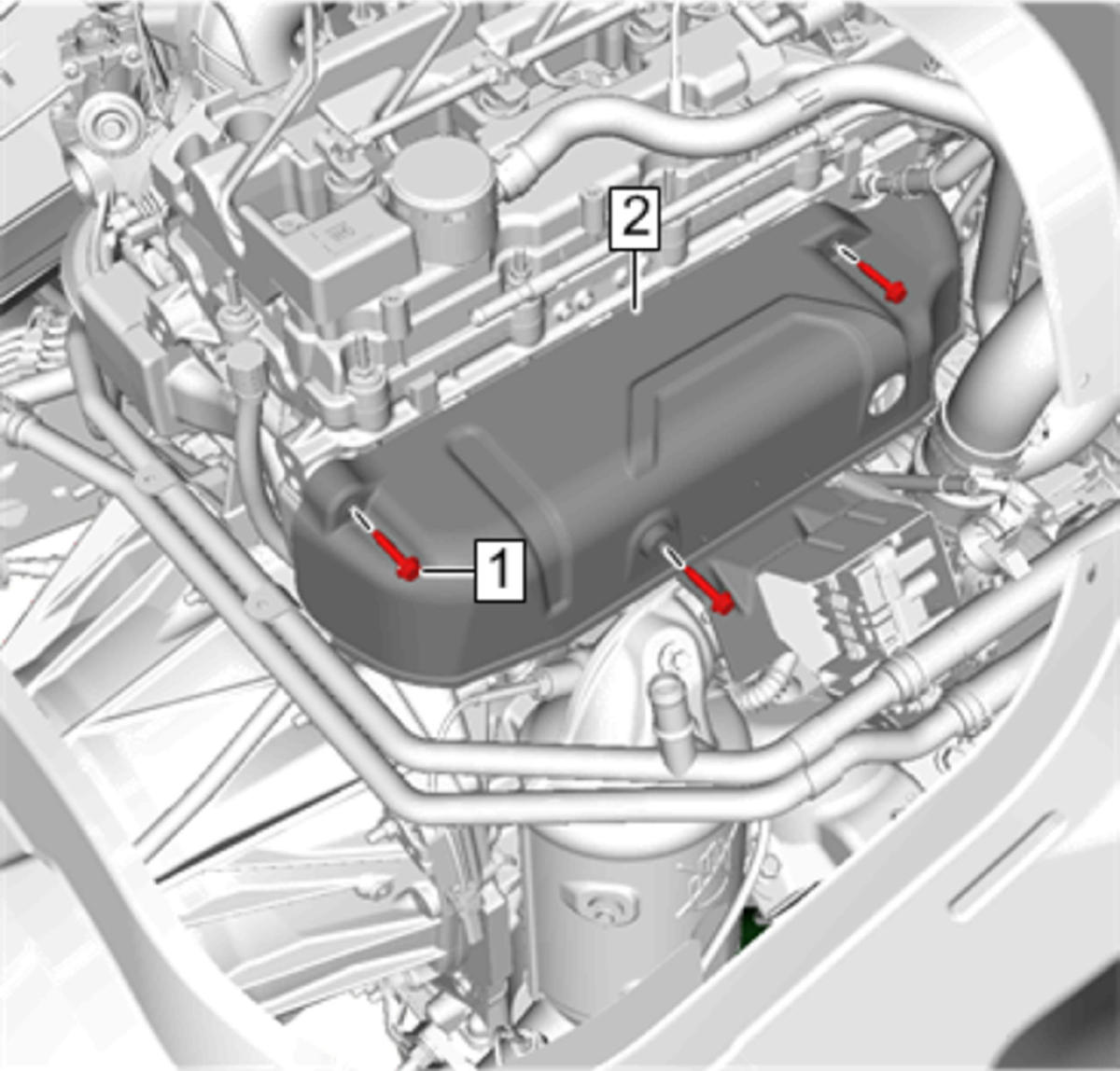

Exhaust Manifold Heat Shield (2) - Install
- Exhaust Manifold Heat Shield Bolt (1) - Install and tighten10 N.m (7 lb ft) [3x]
- Connect the engine harness at the top of the engine and position in place.
- Connect the engine harness retainers at the right rear of the engine.
- Connect the exhaust gas recirculation cooler temperature sensor - position 2 electrical connector.
- Connect the electrical connector at the turbocharger.
- Exhaust Gas Recirculation Valve Temperature Sensor - Install - Exhaust Gas Recirculation Cooler Temperature Sensor Replacement - Position 1
- Engine Cover - Install - Engine Cover Replacement
CAUTION:
Refer to Fastener Caution .
