Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.
WARNING:
Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury.
- Raise and support the vehicle. Lifting and Jacking the Vehicle
Exhaust Front Bracket Nut (1) - Remove [2x]
- Exhaust Front Bracket Bolt (2) - Remove [2x]
- Exhaust Front Bracket (3) - Remove

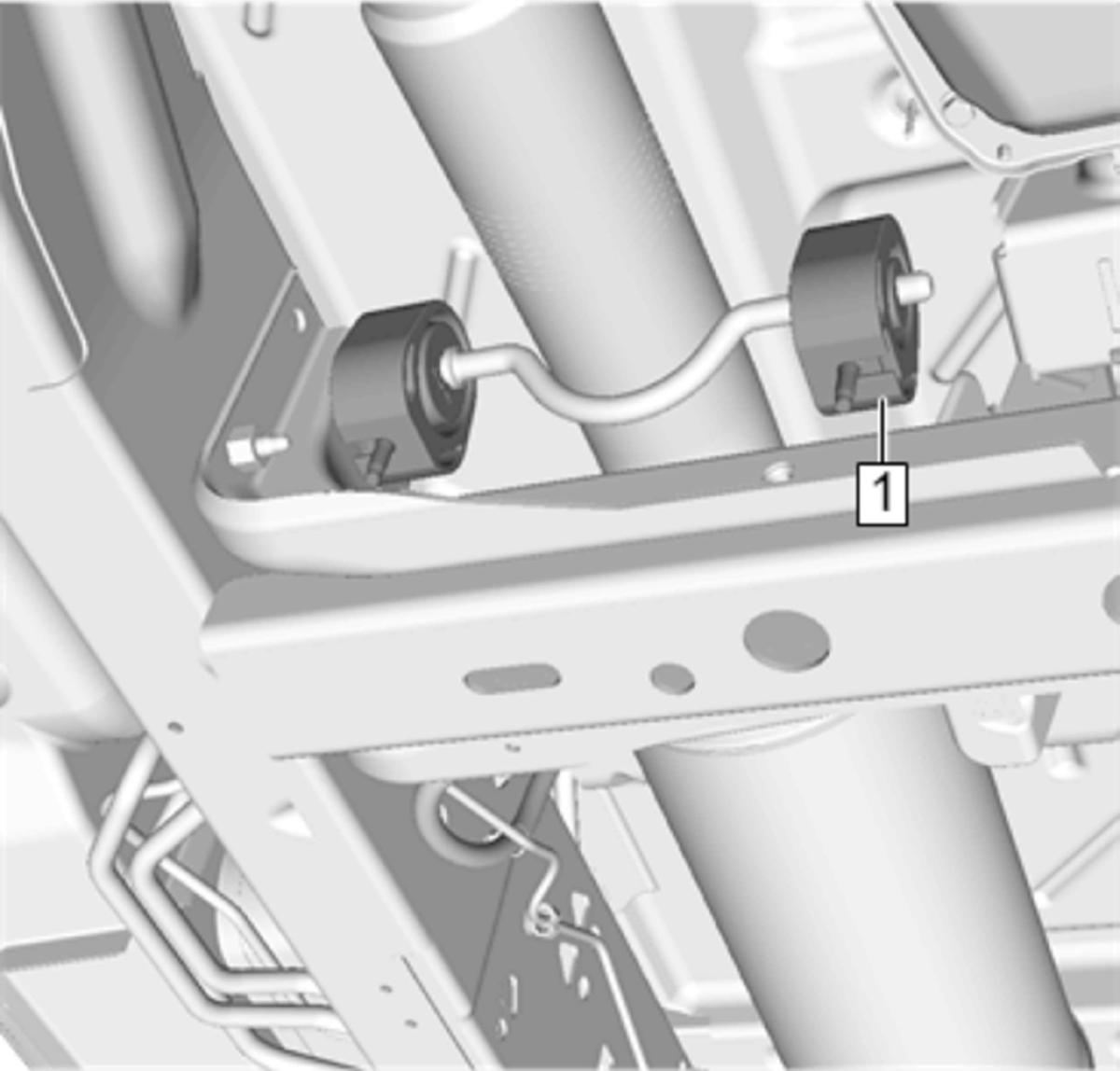

Exhaust Isolator (1) - Remove [2x]
