Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

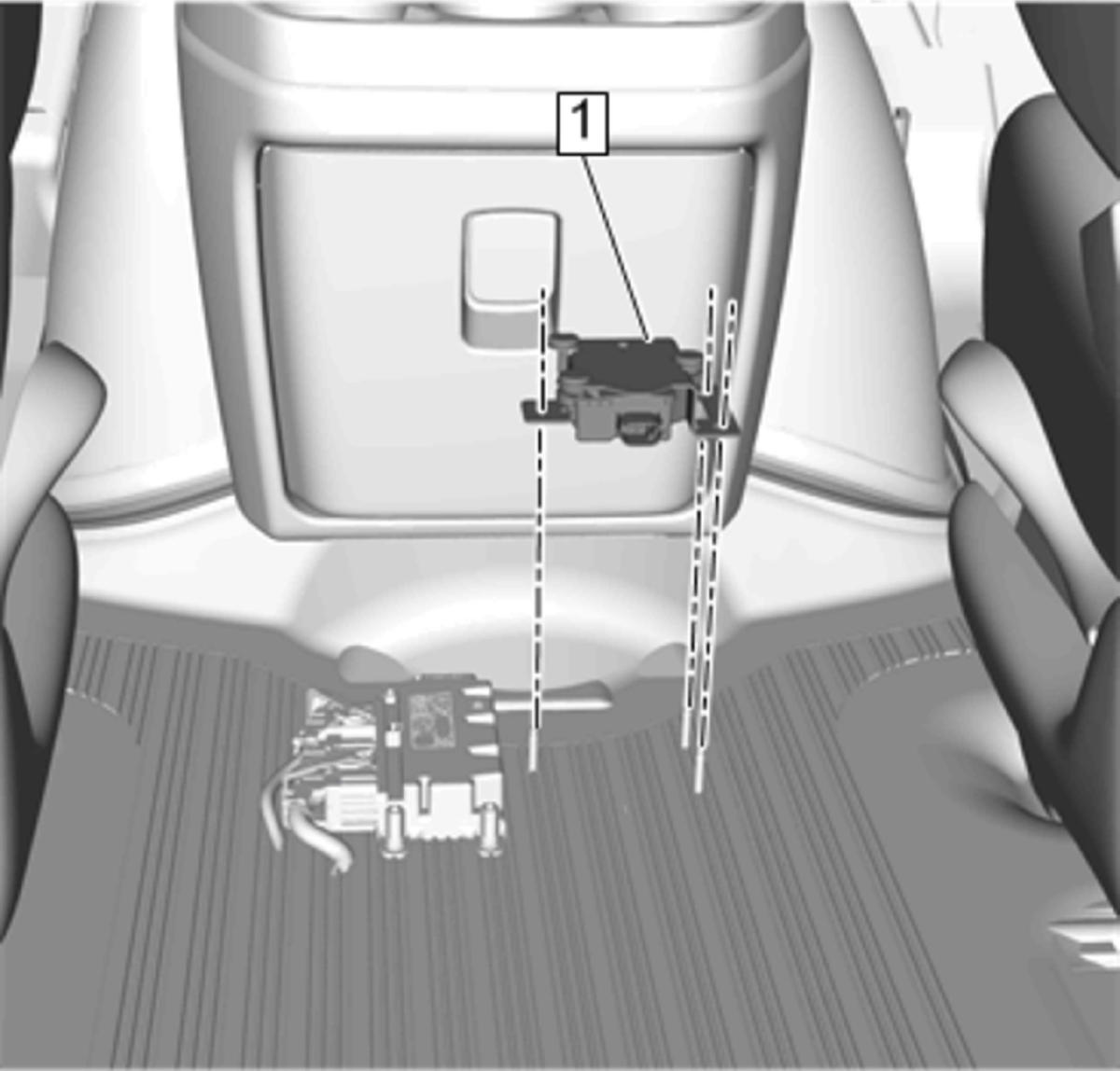

Vehicle Yaw Sensor with Vehicle Lateral Accelerometer (1) - Install
- CAUTION:
Refer to Fastener Caution .

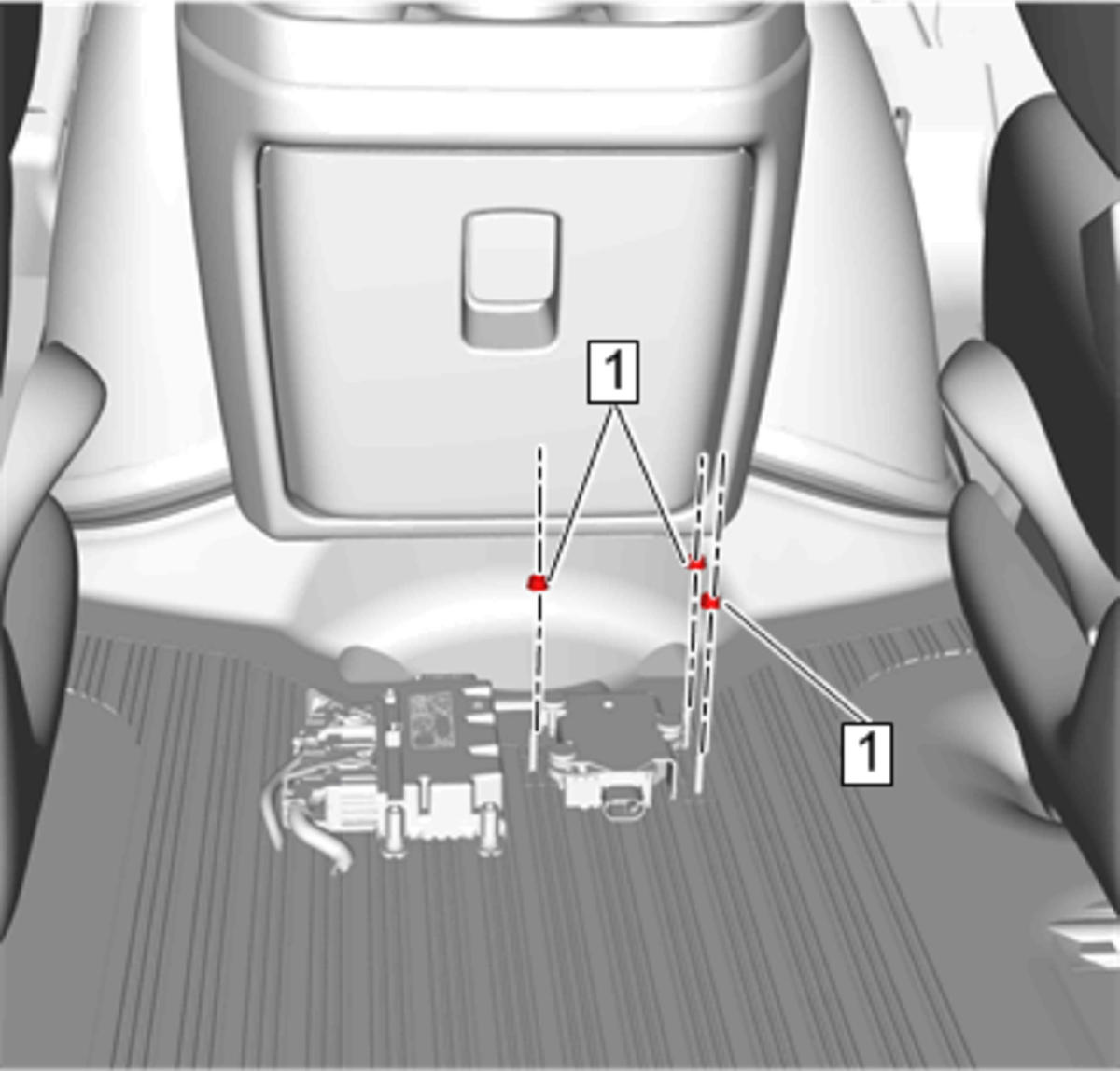

Vehicle Yaw Sensor with Vehicle Lateral Accelerometer Nut (1) - Install and tighten[3x]9 N.m (80 lb in)

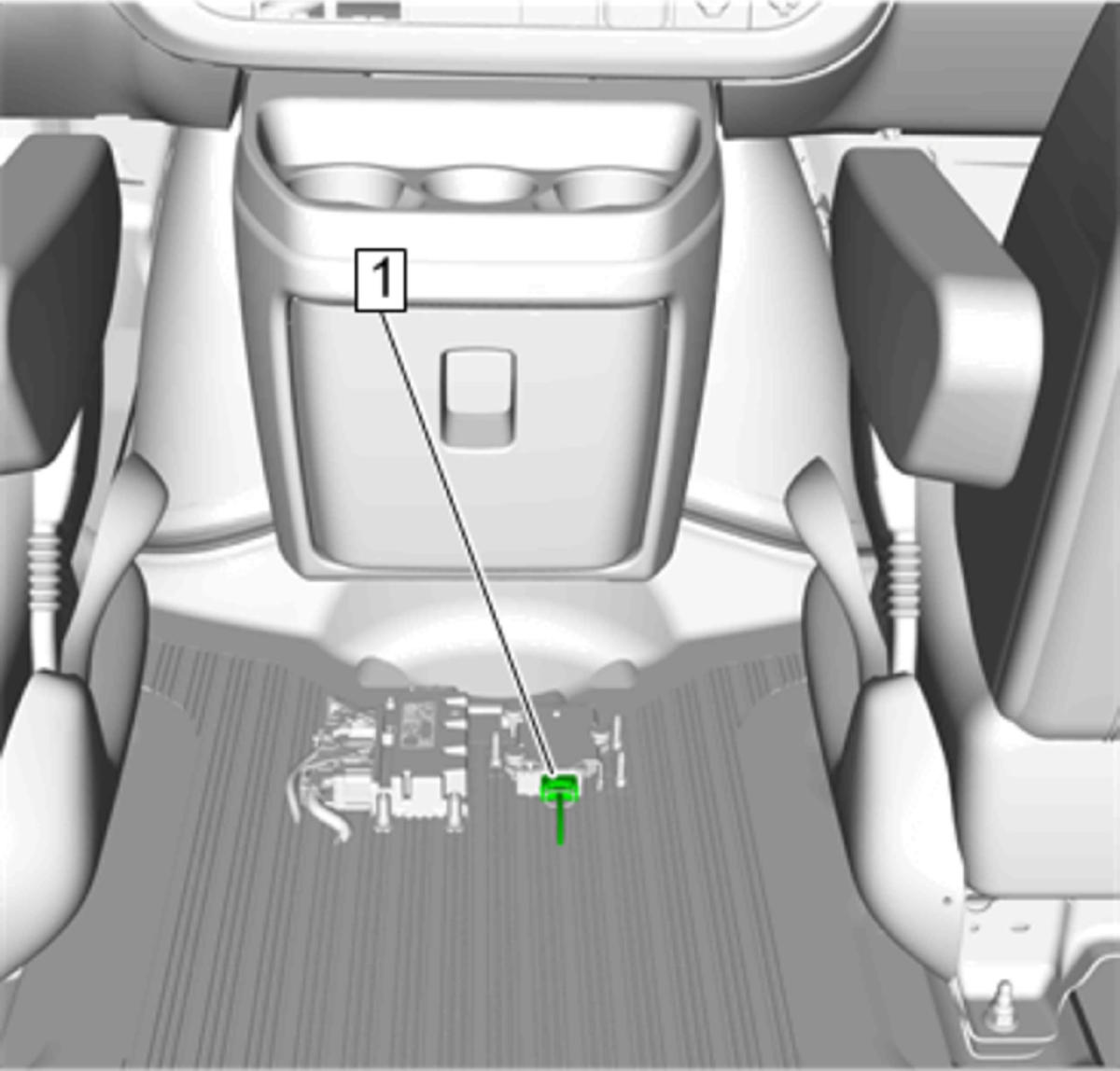

Vehicle Yaw Sensor with Vehicle Lateral Accelerometer Electrical Connector (1) - Connect

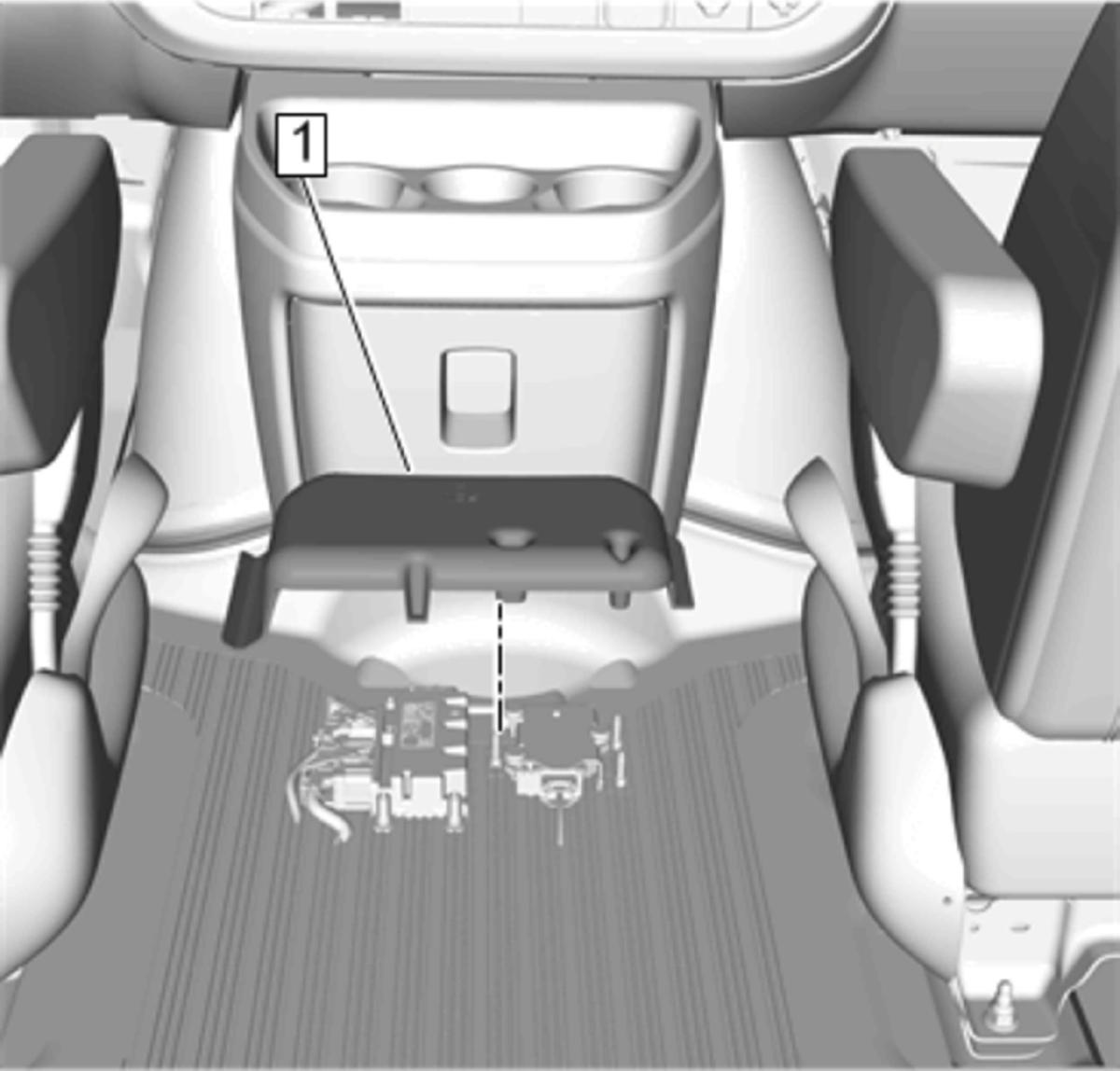

Rollover Sensor Cover (1) - Install
- Calibrate the vehicle yaw sensor with vehicle lateral accelerometer. Vehicle Yaw Sensor Learn
