Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Apply a light coat of wheel speed sensor anti-corrosion grease to the wheel speed sensor and mounting pad on the rear axle housing. Adhesives, Fluids, Lubricants, and Sealers

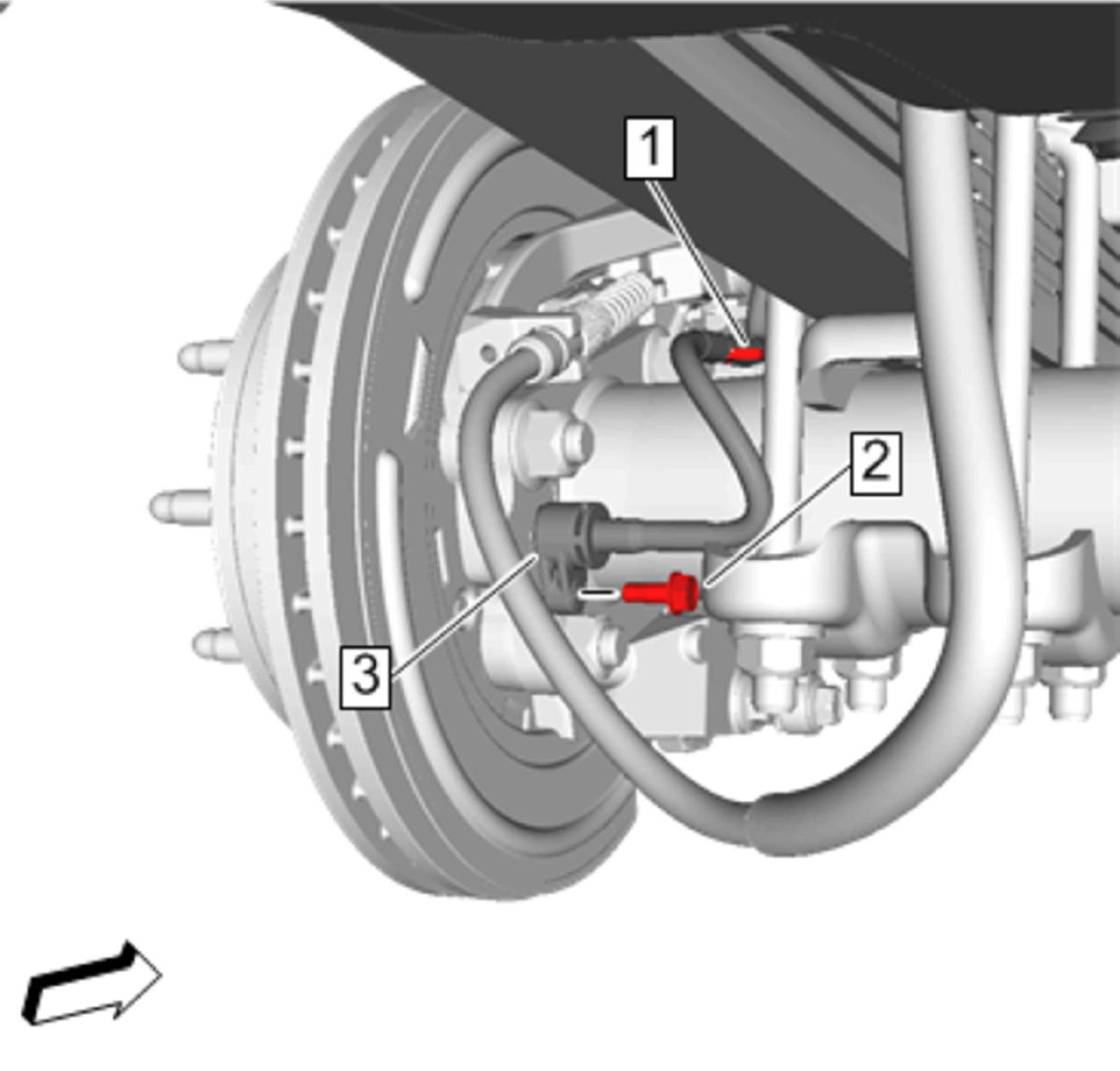

Rear Wheel Speed Sensor(3) - Install
- Rear Wheel Speed Sensor Bolt(2) - Install and tighten 10 N.m (89 lb in) (JH6)
- Wiring Harness Clip(1)@Rear Axle - Install

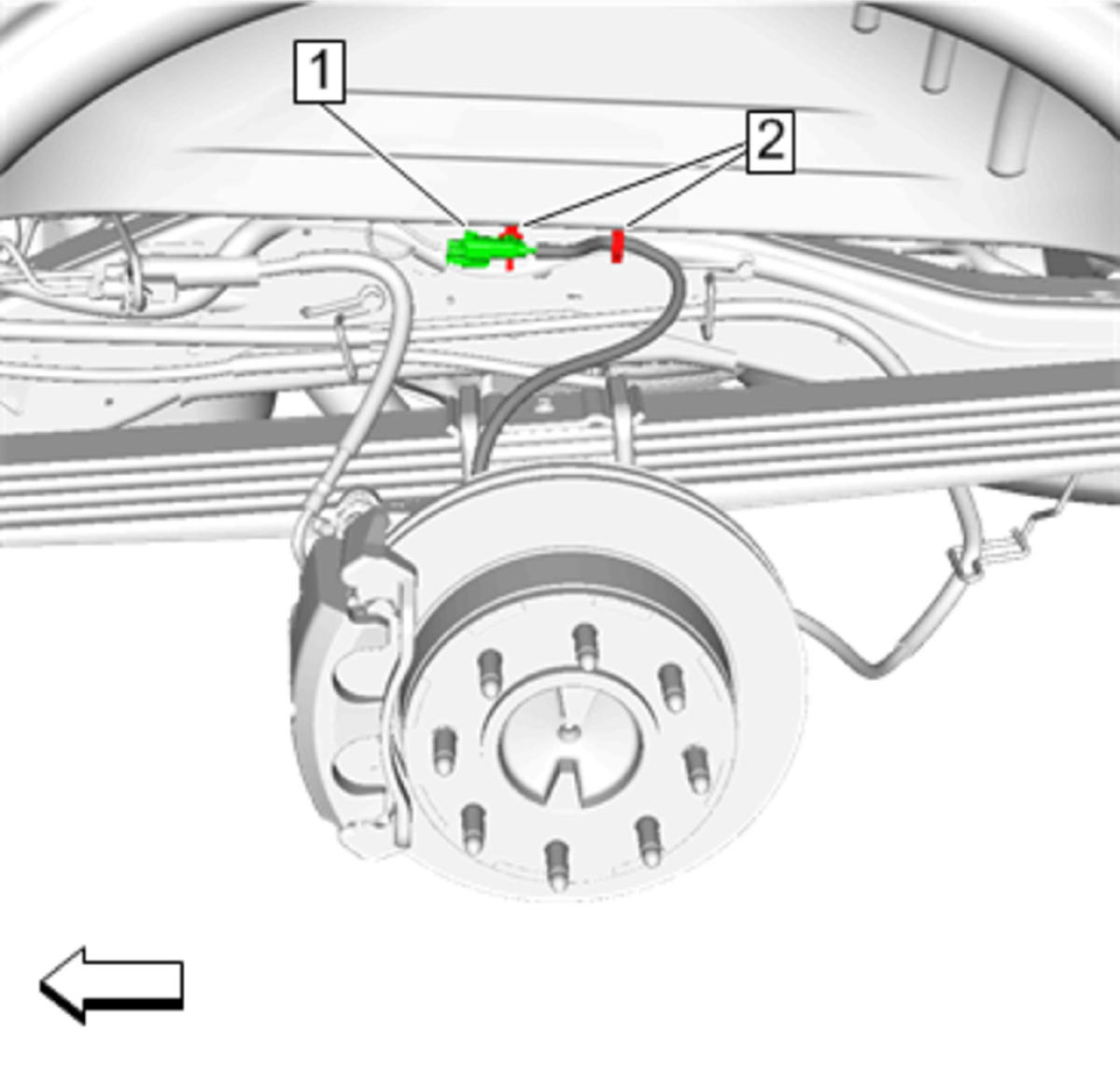

Wiring Harness Clip(2)@ Frame Rail - Install[2x]
- Electrical Connector(1)@ Frame Rail - Connect
- Remove the support and lower the vehicle.
- Perform a low speed test of the wheel speed sensor function:
- Start the engine and allow to idle.
- Ensure the ABS or traction assist indicators are not illuminated.
- If the ABS or traction assist indicators remain illuminated, DO NOT drive the vehicle until it is diagnosed and repaired. Inspect the wheel speed sensor electrical connector for damage and proper installation. If either lamp remains illuminated. Diagnostic Starting Point - Vehicle
- Select a smooth, dry, clean, and level road or large lot that is free of traffic and obstacles.
- Drive the vehicle, maintaining a speed of at least 16 km/h (10 mph) for at least 5 seconds.
- Stop the vehicle and ensure the ABS or traction assist indicators are not illuminated.
- If either indicator is illuminated. Diagnostic System Check - Vehicle
CAUTION:
Refer to Fastener Caution .
