Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always connect or disconnect the wiring harness connector from the EBCM/EBTCM with the ignition switch in the OFF position. Failure to observe this precaution could result in damage to the EBCM/EBTCM.
- Place the ignition switch in the OFF position,
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Clean the electronic brake control module and brake pressure modulator valve assembly of any accumulated dirt and debris.
Electrical Connector(1)@Electronic Brake Control Module - Disconnect

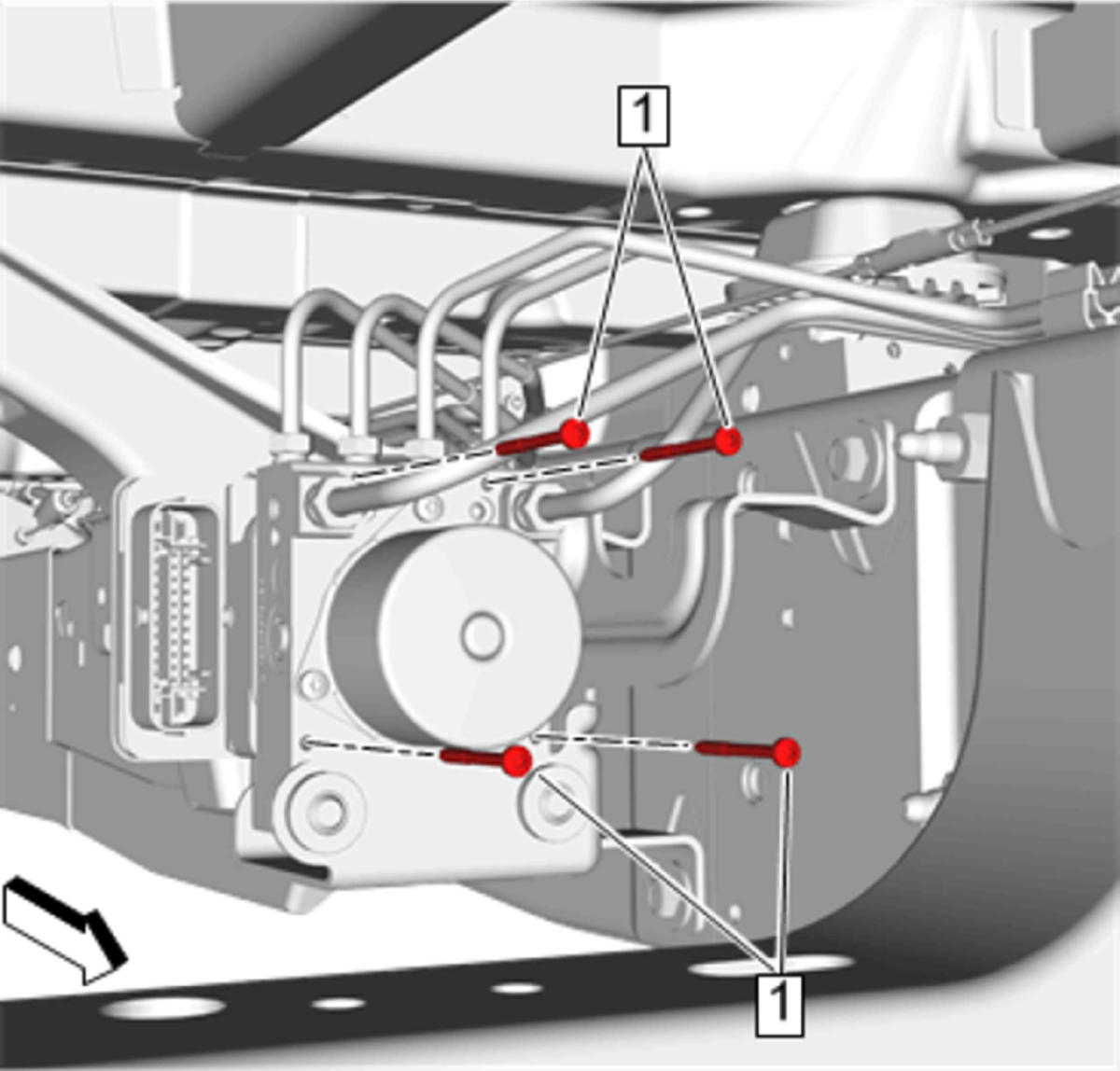

Electronic Brake Control Module Bolt(1) - Remove[4x]
- NOTE:
Do NOT lever or pry the components apart.

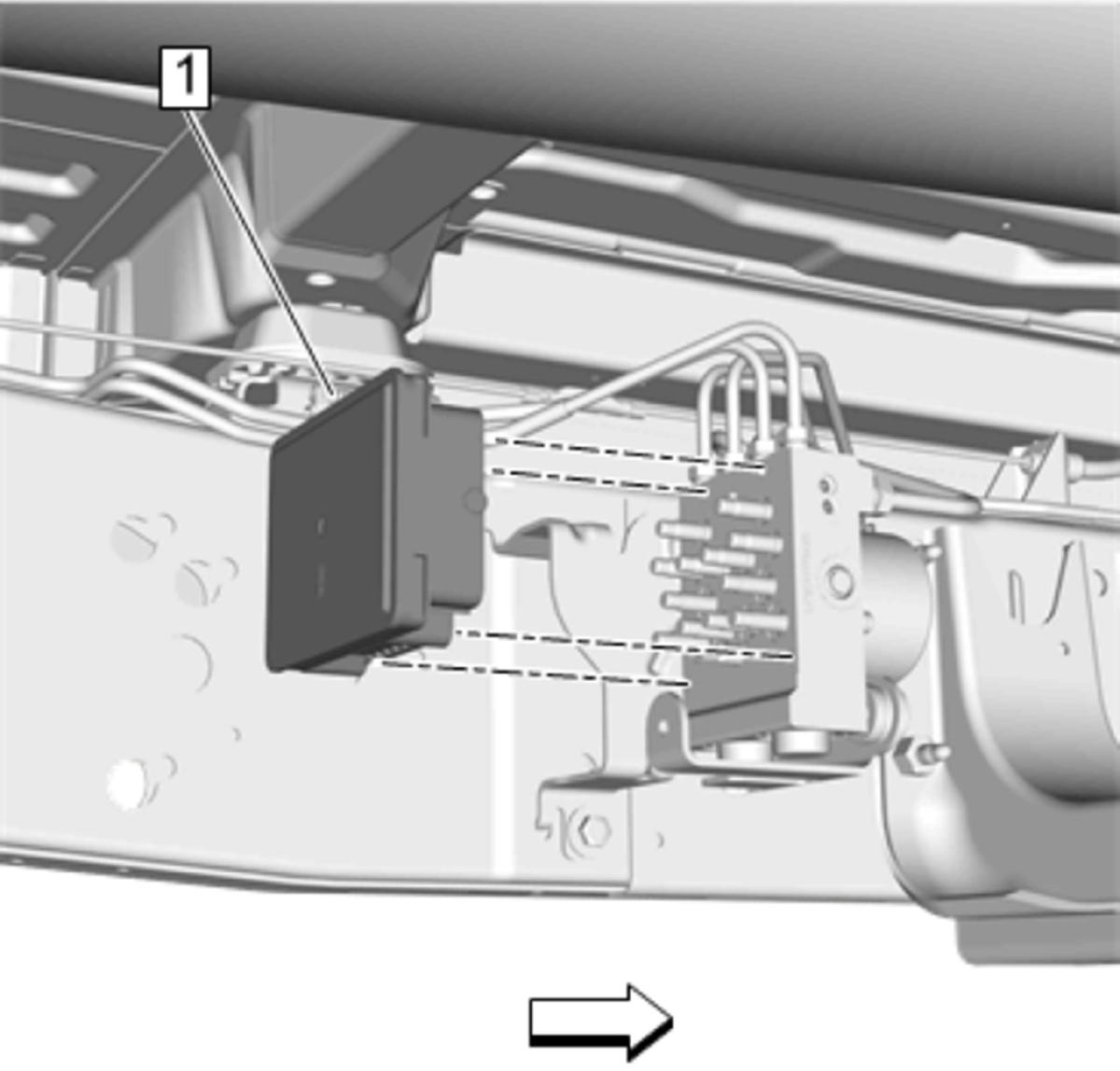

Electronic Brake Control Module(1) - Remove

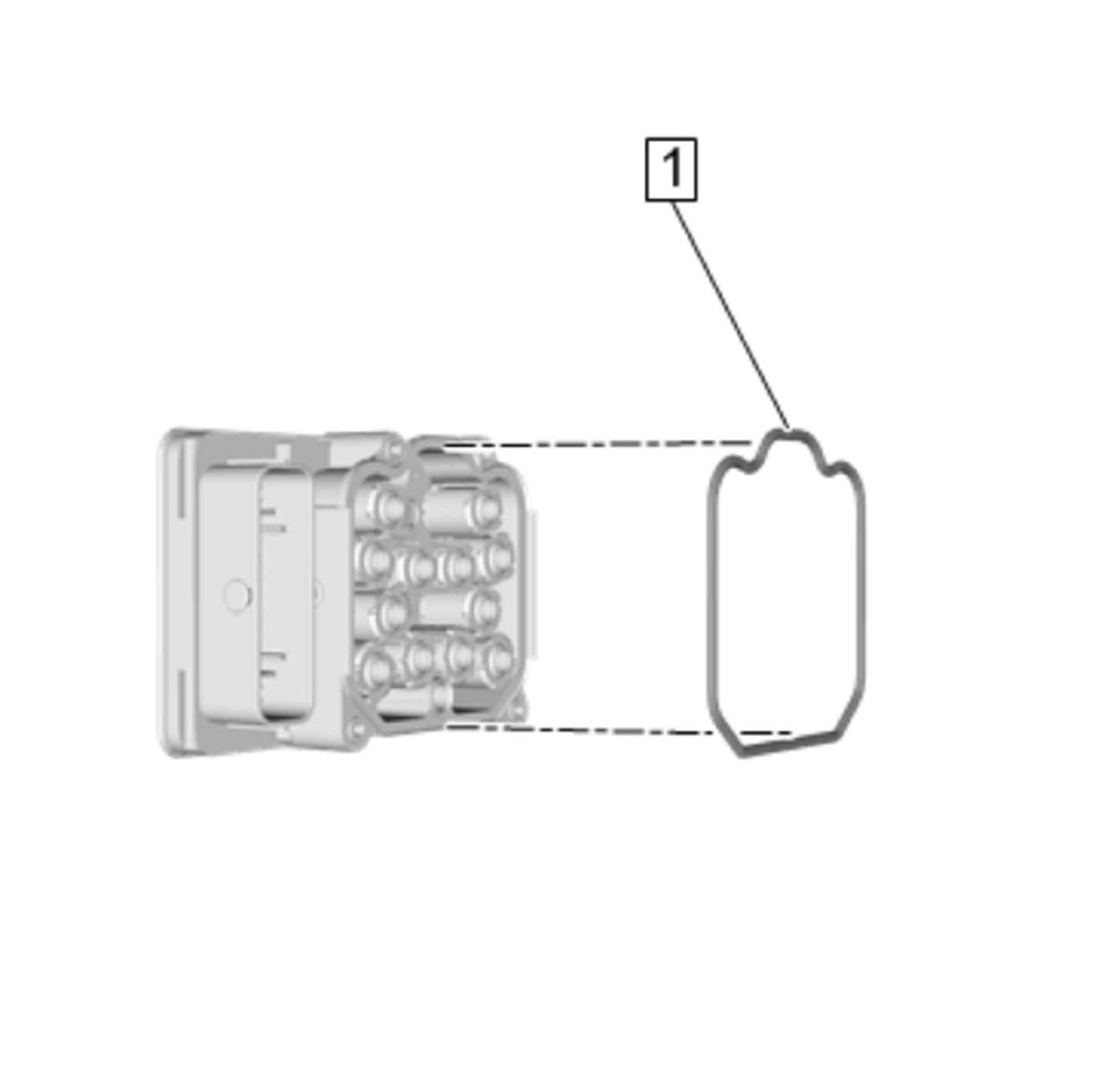

Seal(1)@Electronic Brake Control Module - Remove
