Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Refer to Brake Dust Warning .

Raise and support the vehicle. Lifting and Jacking the Vehicle .
Remove the rear tire and wheel assemblies. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels) .
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Support the brake caliper with heavy mechanic wire, or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.

NOTE:
Do NOT disconnect the hydraulic brake flexible hose from the caliper.

Remove the rear brake caliper and rear brake caliper bracket as an assembly (1). Rear Brake Caliper Replacement (JH6) , or Rear Brake Caliper Replacement (JH9)
Rear Axle Shaft - Remove - Rear Axle Shaft and Gasket Replacement
Rear Axle Shaft Gasket - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
It is not necessary to remove the bearings and cups from the rear wheel hub unless replacement is required.

Rear Wheel Hub (1) - Remove - Rear Axle Hub, Bearing, Cup, and/or Seal Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Mark the relationship of the hub to the rotor.

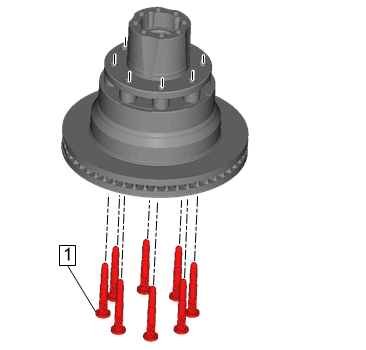

Using a hydraulic press, press the rear wheel studs (1) from the rear wheel hub and rear brake rotor assembly.
Courtesy of GENERAL MOTORS COMPANY

Rear Brake Rotor(1)@Rear Wheel Hub - Remove
Using a stiff brush, clean any loose debris and corrosion from the mating surfaces of the rear brake rotor and the rear wheel hub.
