Assembly Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

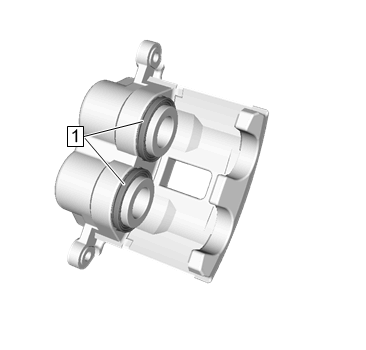

Lubricate the NEW caliper piston seal (1) with brake fluid from a clean, sealed brake fluid container. Adhesives, Fluids, Lubricants, and Sealers
- Rear Brake Caliper Piston Seal(1)@Rear Brake Caliper - Install NEW[2x]
- Apply a thin coat of brake fluid from a clean, sealed brake fluid container to the brake caliper bore. Adhesives, Fluids, Lubricants, and Sealers
- NOTE:
Seat the NEW caliper piston dust boot in the groove of the brake caliper piston.

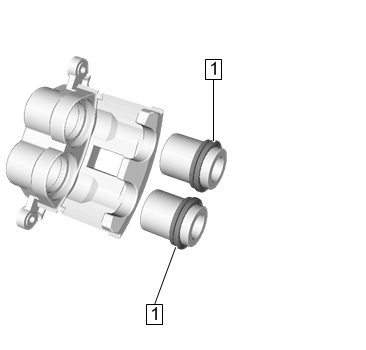

Rear Brake Caliper Piston Boot(1)@Rear Brake Caliper Piston - Install NEW[2x]
Rear Brake Caliper Piston(1)@Rear Brake Caliper - Install[2x]

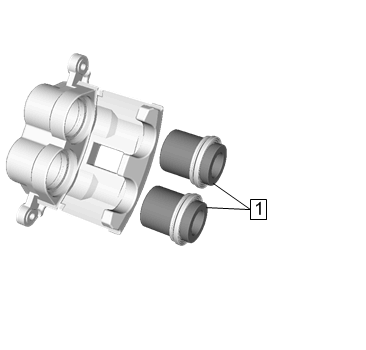

- Compress the caliper piston (1) to the bottom of the caliper bore.
Fully seat the piston dust boot seal (1) into caliper counterbore.
- CAUTION:
Bleeder Valve (2) - Install and hand tighten
Rear Brake Caliper(1) - Install - Rear Brake Caliper Replacement (JH6) , or Rear Brake Caliper Replacement (JH9)
- Bleed the brake system. Hydraulic Brake System Bleeding (Pressure) , or Hydraulic Brake System Bleeding (Manual)
