Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
Front Brake Caliper Bracket Bolt(1) - Remove[2x]
- CAUTION:
Support the brake caliper with heavy mechanic wire, or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.
NOTE:Do NOT disconnect the hydraulic brake flexible hose from the caliper.
- Remove the brake caliper and support with heavy mechanics wire.(1)

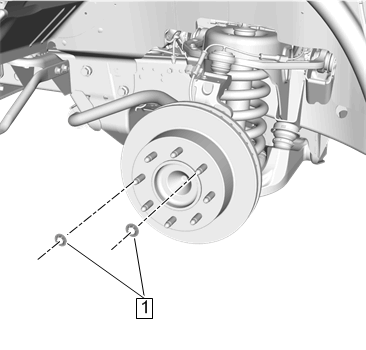

{ If equipped }Retainer(1) - Remove and DISCARD
- NOTE:
If installing the original brake rotor, mark the relationship of the rotor to the hub.
Front Brake Rotor(1) - Remove
