Assembly Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front Brake Caliper Bleeder Valve(2) - Install and hand tighten
Front Brake Caliper Bleeder Valve Cover (1) - Install
Apply a thin coat of brake fluid from a clean, sealed brake fluid container to the brake caliper bore. Adhesives, Fluids, Lubricants, and Sealers
Courtesy of GENERAL MOTORS COMPANY

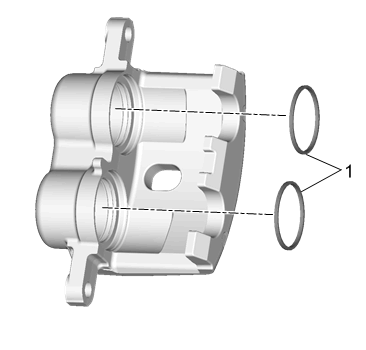

Front Brake Caliper Piston Seal(1)@Front Brake Caliper Bore - Install[2x]
Ensure that the seals are not twisted.
Courtesy of GENERAL MOTORS COMPANY

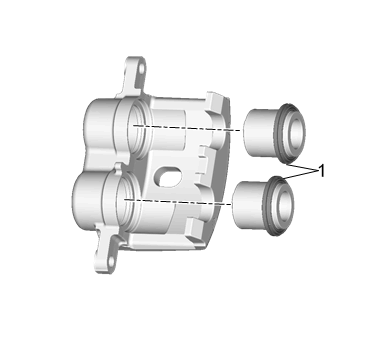

Apply a thin coat of brake fluid from a clean, sealed brake fluid container to the brake caliper piston boot.(1)[2x] Adhesives, Fluids, Lubricants, and Sealers
Brake Caliper Piston Boot(1)@Brake Caliper Piston - Install[2x]
Courtesy of GENERAL MOTORS COMPANY

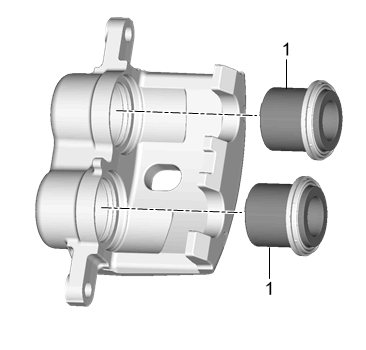

Install the caliper piston and boot (1)to the caliper bore.

[2x]
1. Seat the boot into the brake caliper bore groove. Slide the piston into the brake caliper bore.
2. Push down the piston to the bottom of the brake caliper bore.
3. Ensure the boot seats properly into the piston groove and into the groove in the brake caliper bore.
4. Repeat steps 8.1 through 8.3 for the remaining piston.
Install the brake caliper to the vehicle. Front Brake Caliper Replacement (JH6) , or Front Brake Caliper Replacement (JH9) .
Bleed the brake system. Hydraulic Brake System Bleeding (Pressure) , or Hydraulic Brake System Bleeding (Manual)
