Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Separate the right side steering linkage inner tie rod (1) from the steering linkage relay rod. Steering Linkage Inner Tie Rod Replacement
Separate the steering linkage idler arm (2) from the steering linkage relay rod. Steering Linkage Idler Arm Replacement
Courtesy of GENERAL MOTORS COMPANY

Separate the left side steering linkage inner tie rod (1) from the steering linkage relay rod. Steering Linkage Inner Tie Rod Replacement

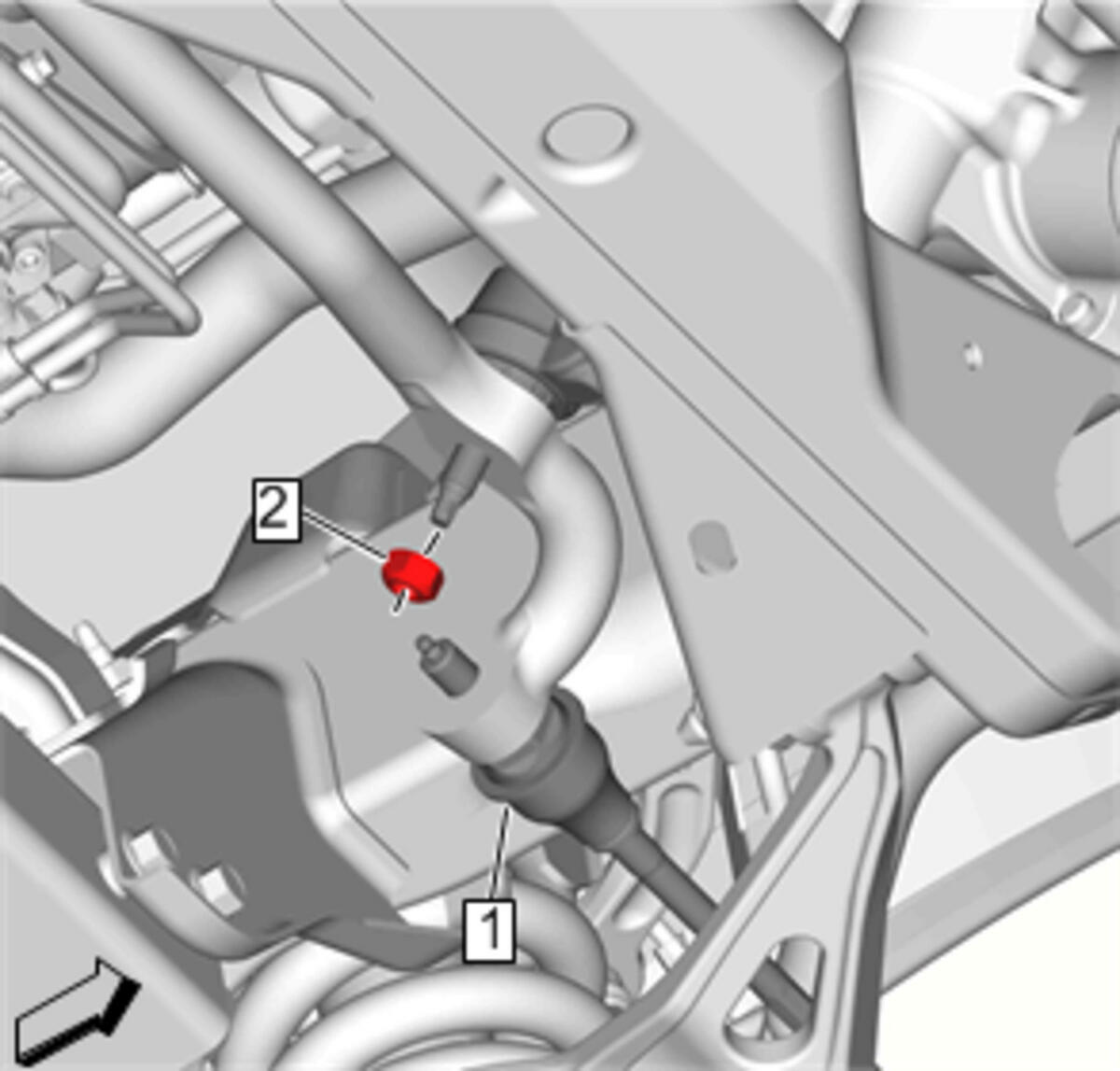

Remove the steering linkage pitman arm nut (2).
DISCARD the nut.
Courtesy of GENERAL MOTORS COMPANY

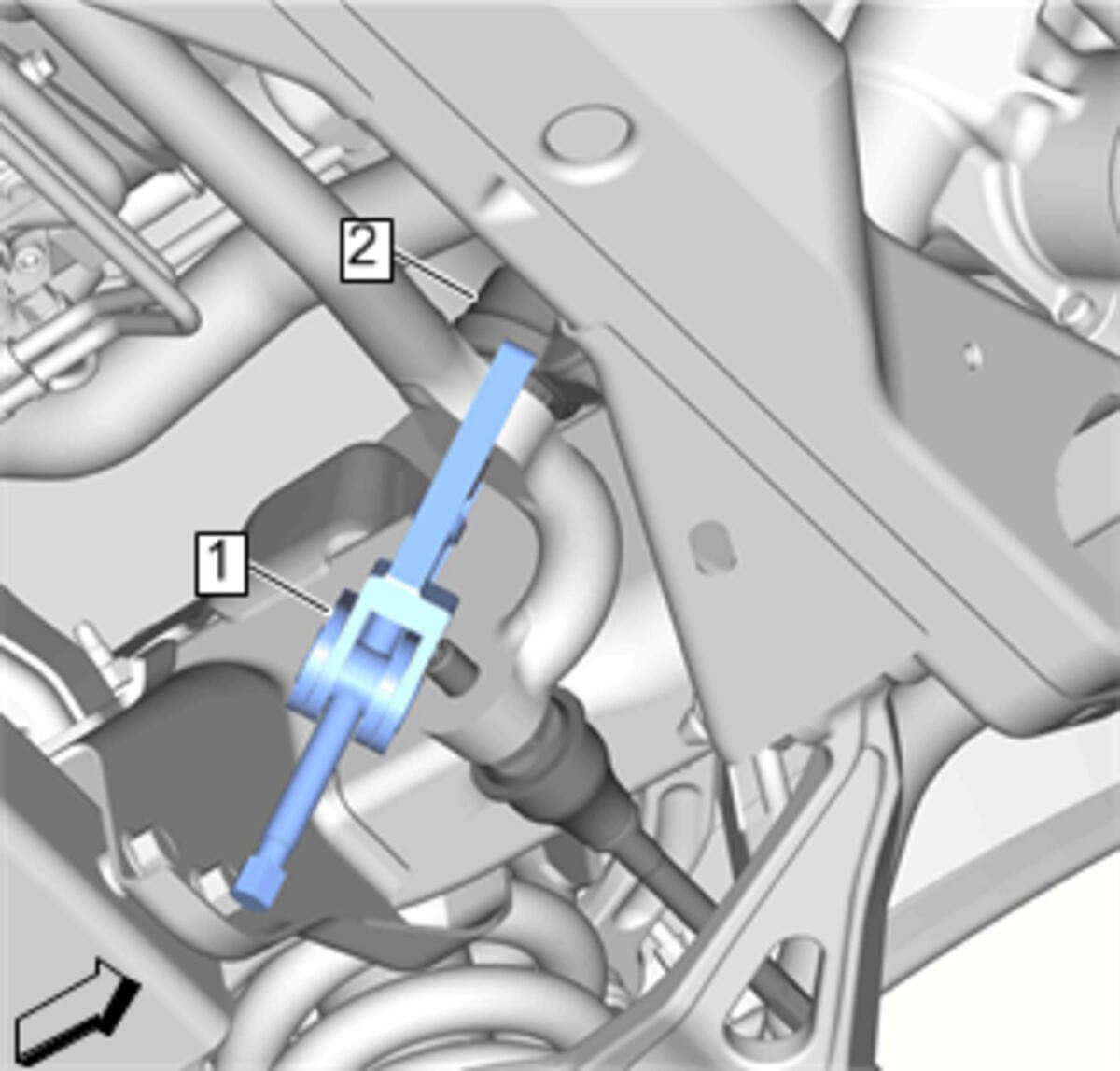

Use the CH-24319 - B puller (1) to separate the pitman arm (2) from the steering linkage relay rod.
Courtesy of GENERAL MOTORS COMPANY

Remove the steering linkage relay rod (1) from the vehicle.
