Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

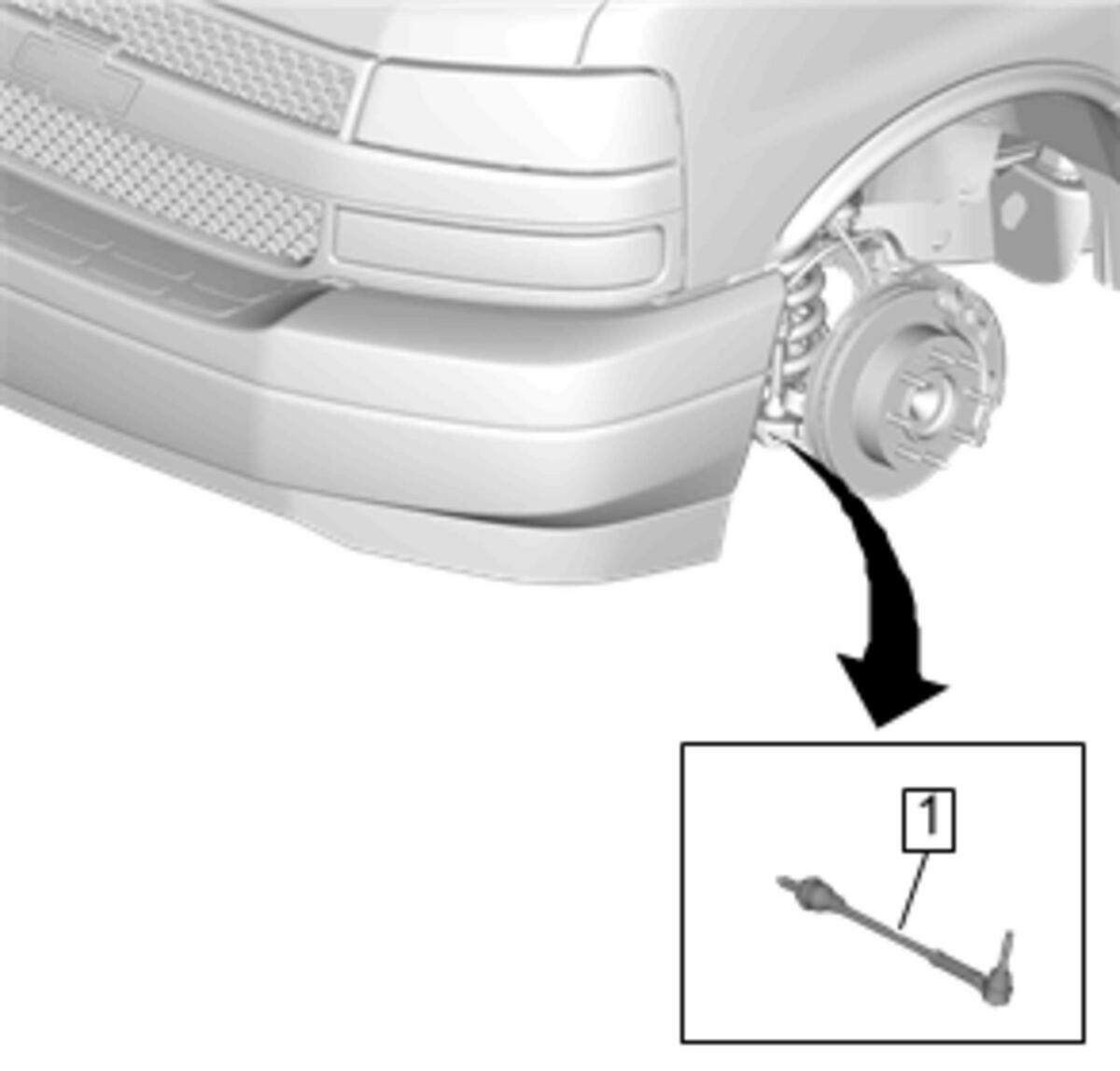

Position the steering linkage inner tie rod (1) on the vehicle.
- CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

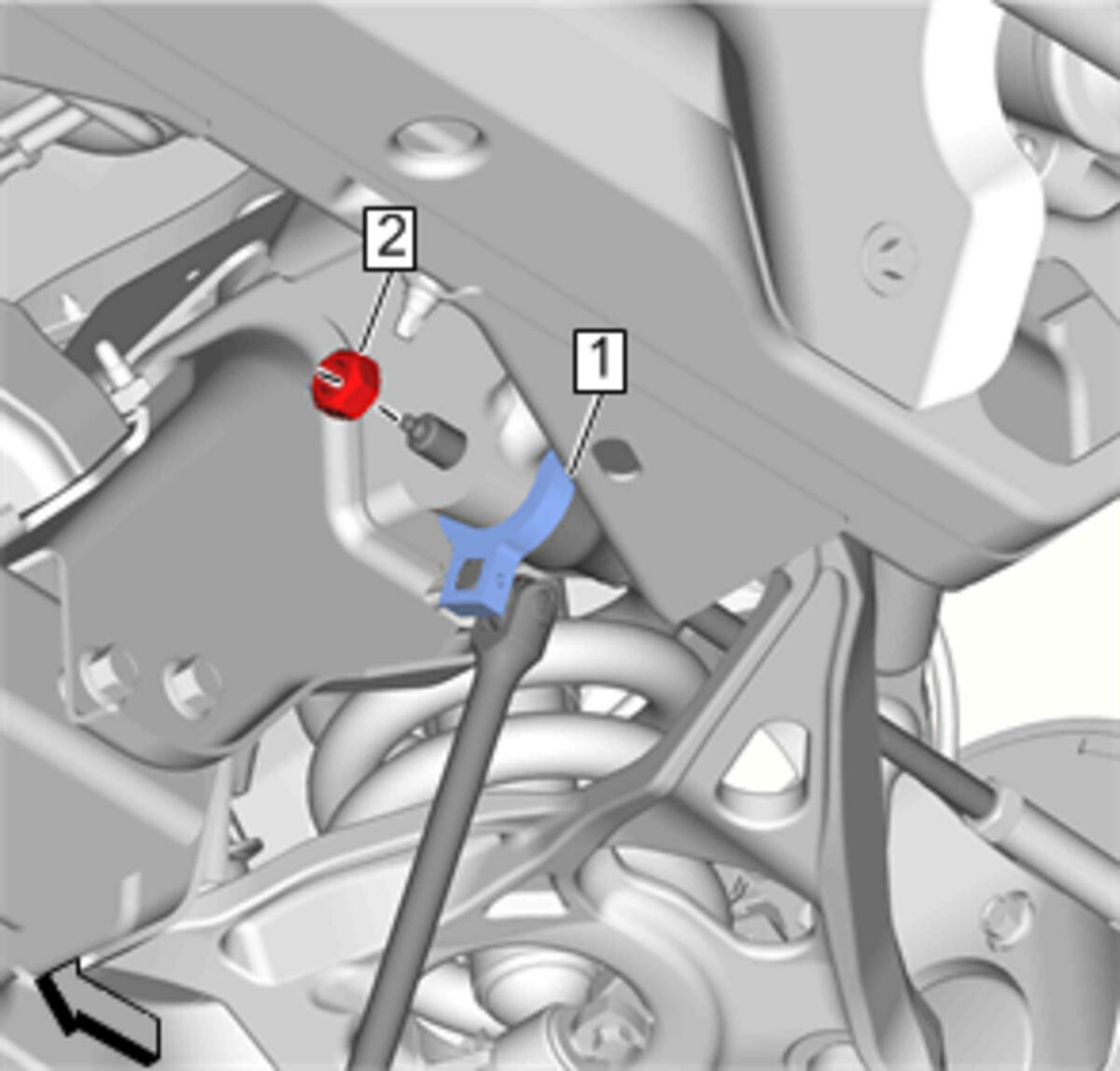

Use the J-34028 wrench (1) to hold the steering linkage inner tie rod and install the steering linkage inner tie rod retaining nut (2).
Install a NEW nut.
- Tighten the steering linkage inner tie rod retaining nut (2) to 112 N.m (83 lb ft).
- If necessary, add the appropriate amount of grease through the grease fitting.

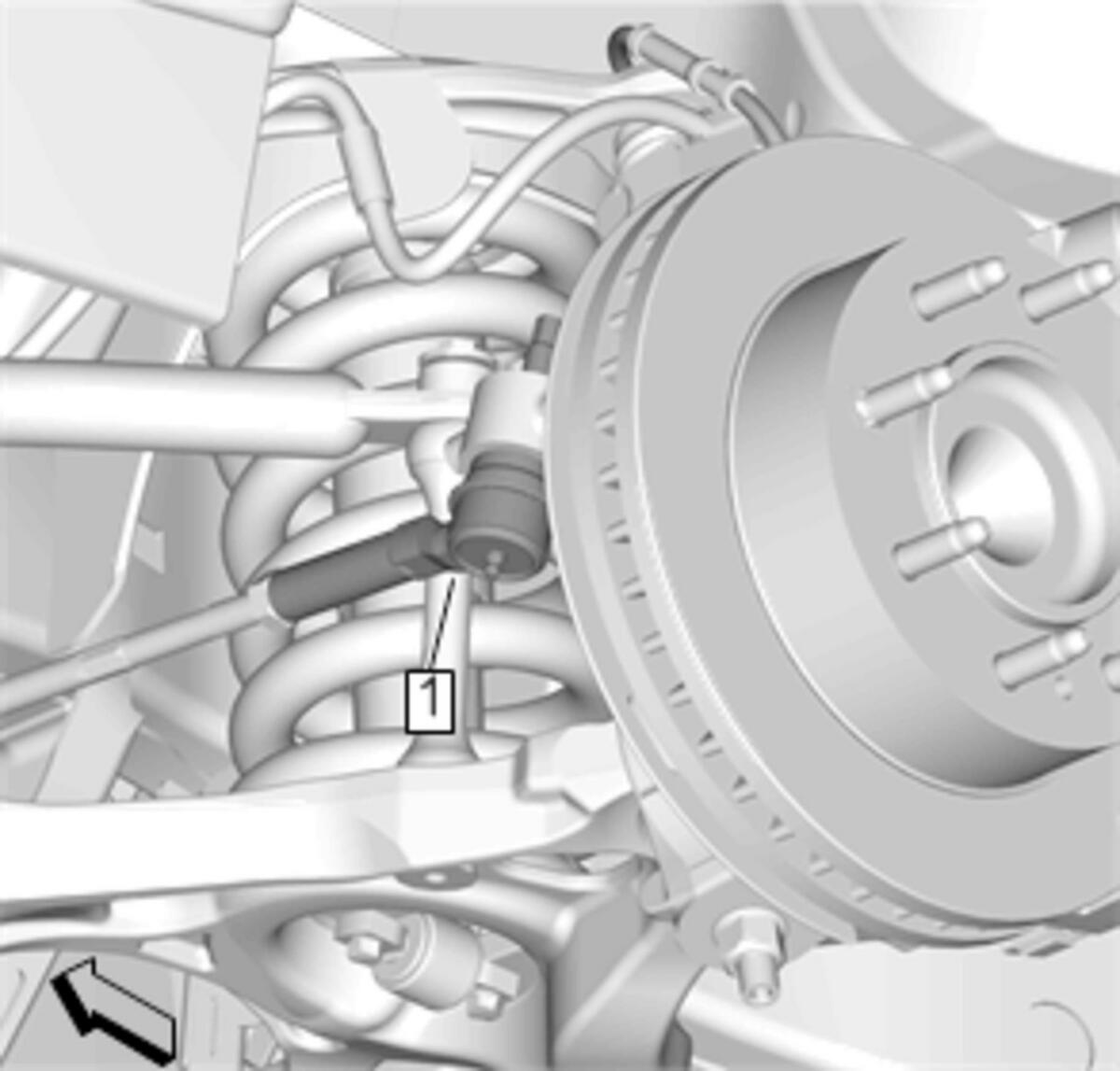

Steering Linkage Outer Tie Rod(1)@Steering Knuckle - Install - Steering Linkage Outer Tie Rod Replacement
- Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
CAUTION:
Refer to Fastener Caution .
