Idler Arm Inspection
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
- J 42640 Steering Column Anti-Rotation Pin
- J-7872 Magnetic Base Dial Indicator
- Equivalent regional tools:Special Tools
- Raise and support the vehicle. Lifting and Jacking the Vehicle .
Position the wheels in a straight-ahead position and install the J 42640 steering column anti-rotation pin.(1).

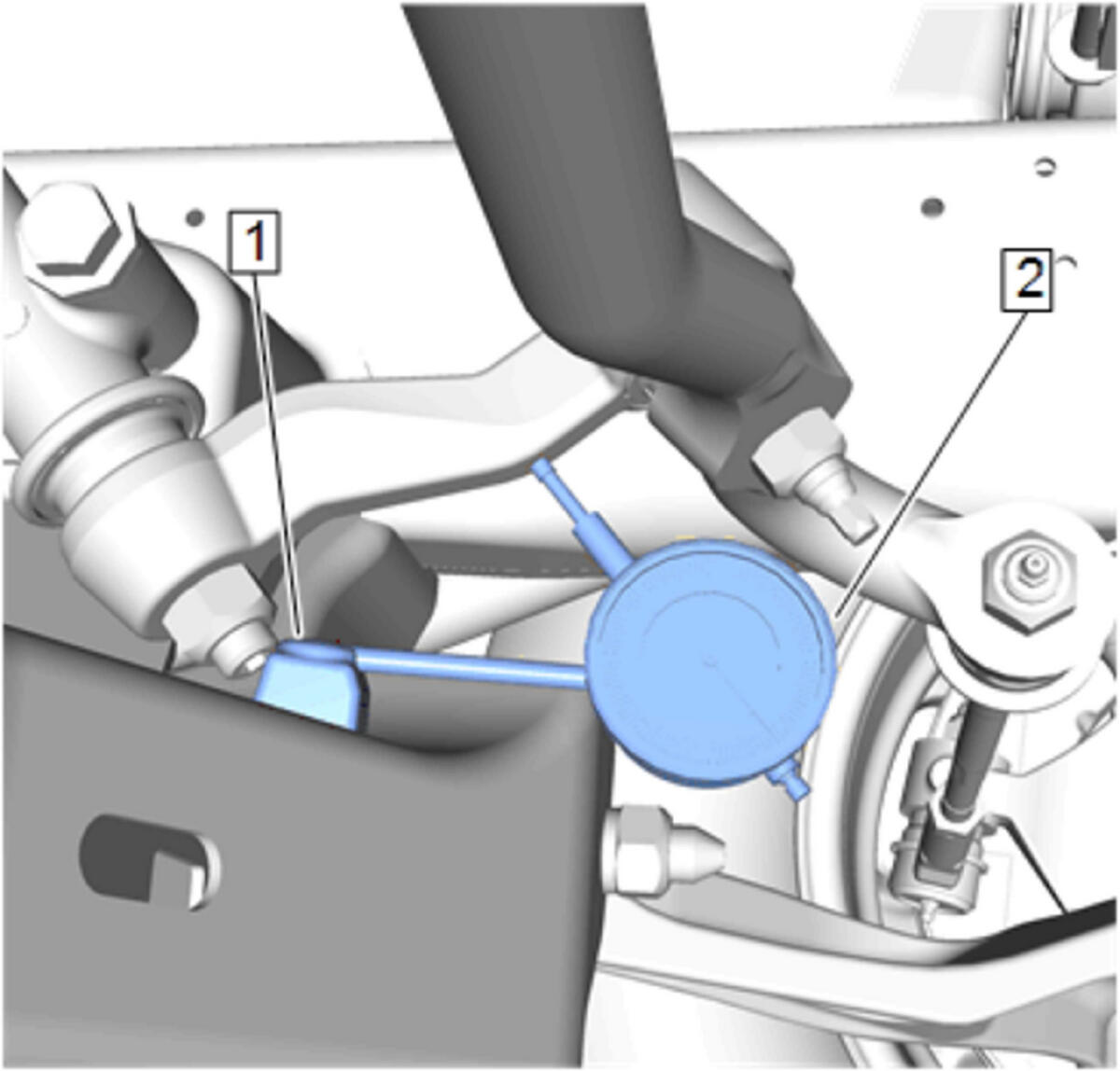

Install the base of the J-7872 Magnetic Base Dial Indicator(1), or equivalent, to the vehicle frame at the location shown above.
- Install the dial indicator J-7872 Magnetic Base Dial Indicator(2), or equivalent, to the idler arm with the contact point at the location shown above.
- Ensure the dial indicator is set at zero before taking a measurement.
- Using a pry bar, induce an upward and downward motion on the idler arm.
- If movement exceeds 2 mm (0.078 in) replace the idler arm. Steering Linkage Idler Arm Replacement
- Remove the dial indicator J-7872 Magnetic Base Dial Indicator, or equivalent, from the vehicle frame and the idler arm.
- Lower the vehicle.
Remove the J 42640 steering column anti-rotation pin (1).
