Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

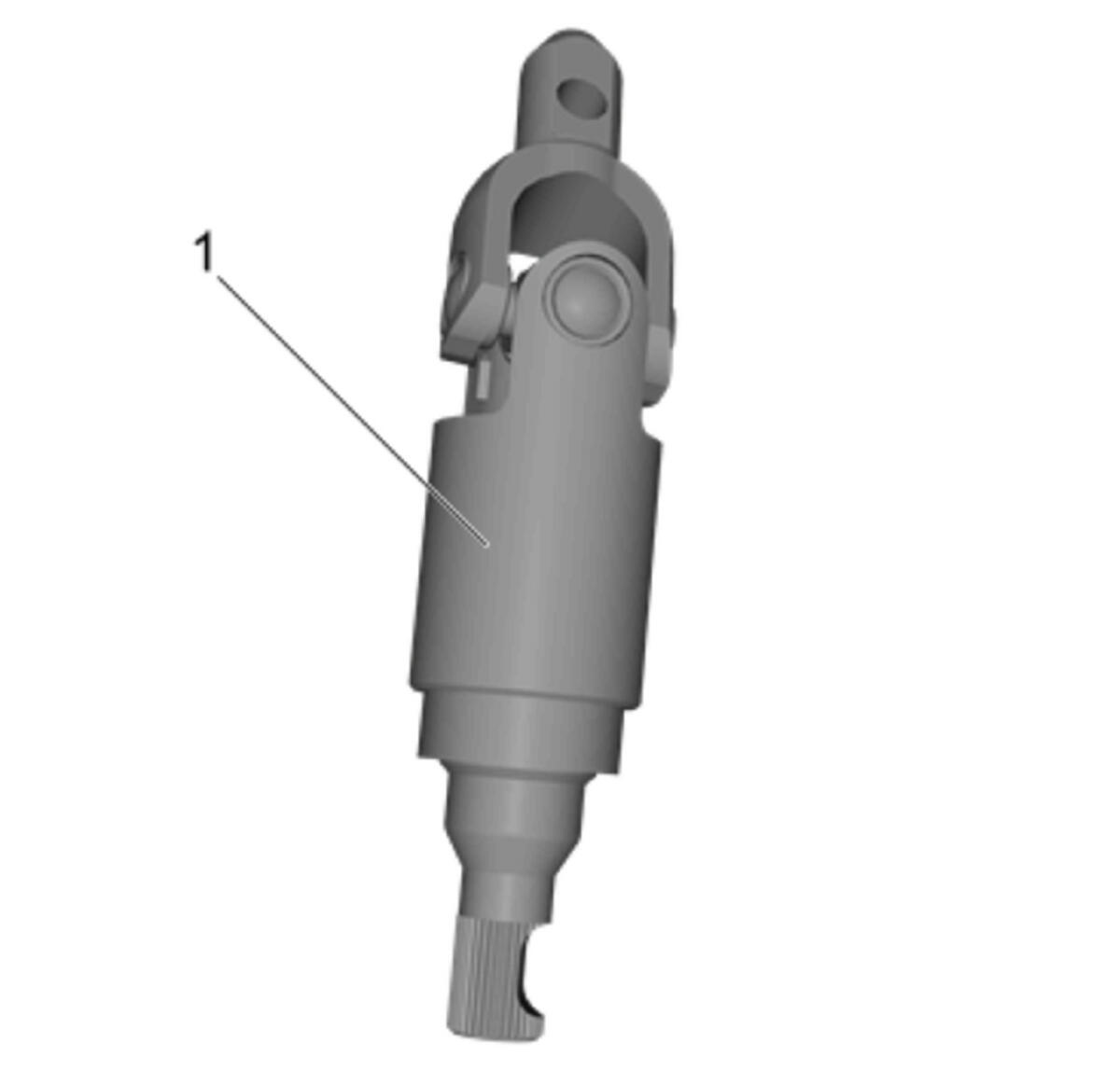

Upper Intermediate Steering Shaft (1) - Move into position
Courtesy of GENERAL MOTORS COMPANY

Upper Intermediate Steering Shaft (2) @ Steering Column (3) - Install

CAUTION:

Refer to Fastener Caution .

Intermediate Steering Shaft Upper Bolt (1) - Install and tighten 45 N.m (33 lb ft).
Courtesy of GENERAL MOTORS COMPANY

Intermediate Steering Shaft Bearing (1) - Install - Intermediate Steering Shaft Bearing Replacement
Courtesy of GENERAL MOTORS COMPANY

Remove the CH-42640 anti-rotation pin (1) from the steering column lower access hole.
