Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Steering Wheel Airbag Coil - Remove - Steering Wheel Airbag Coil Replacement

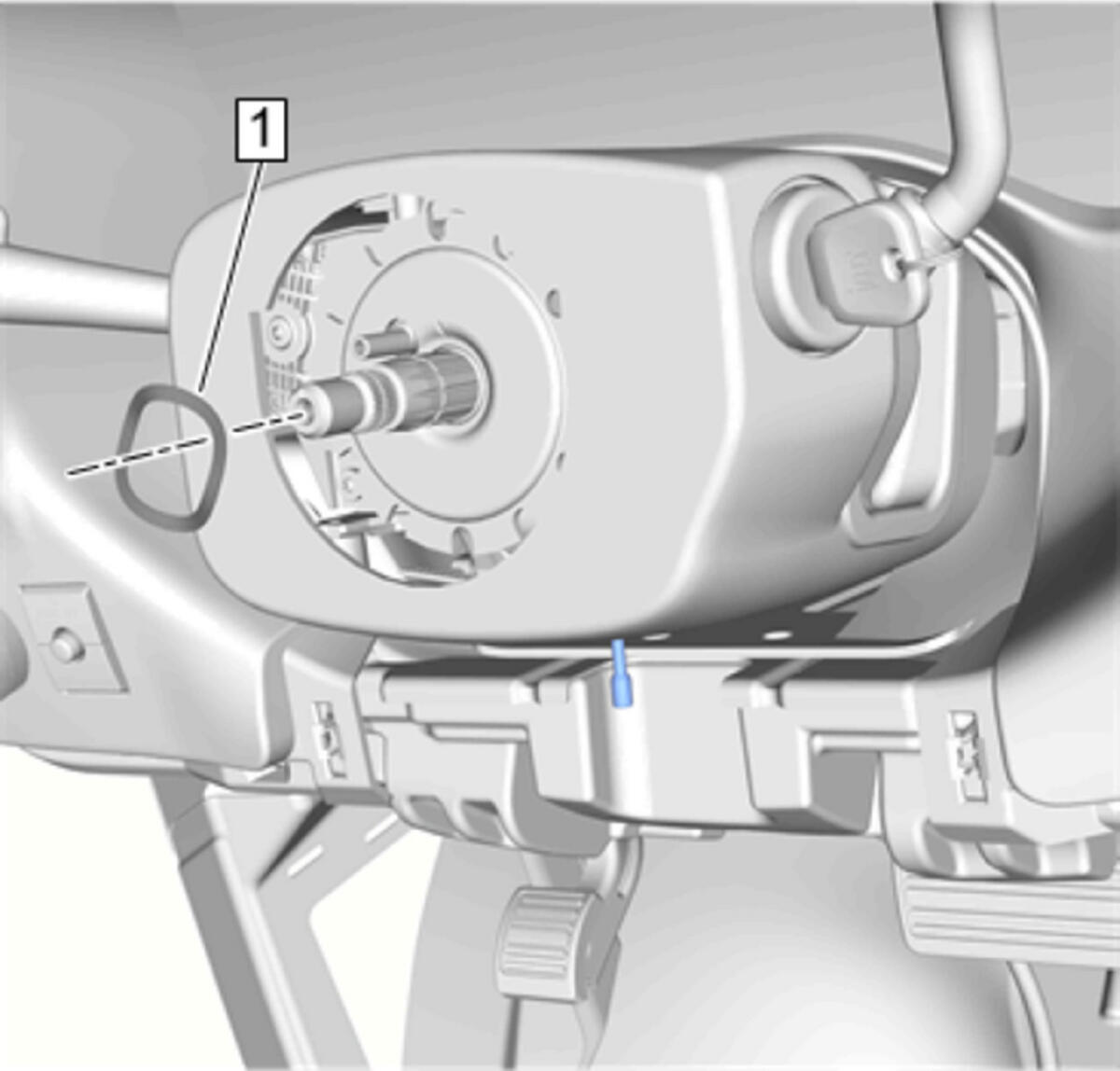

Steering Wheel Airbag Coil Washer - Remove (1)

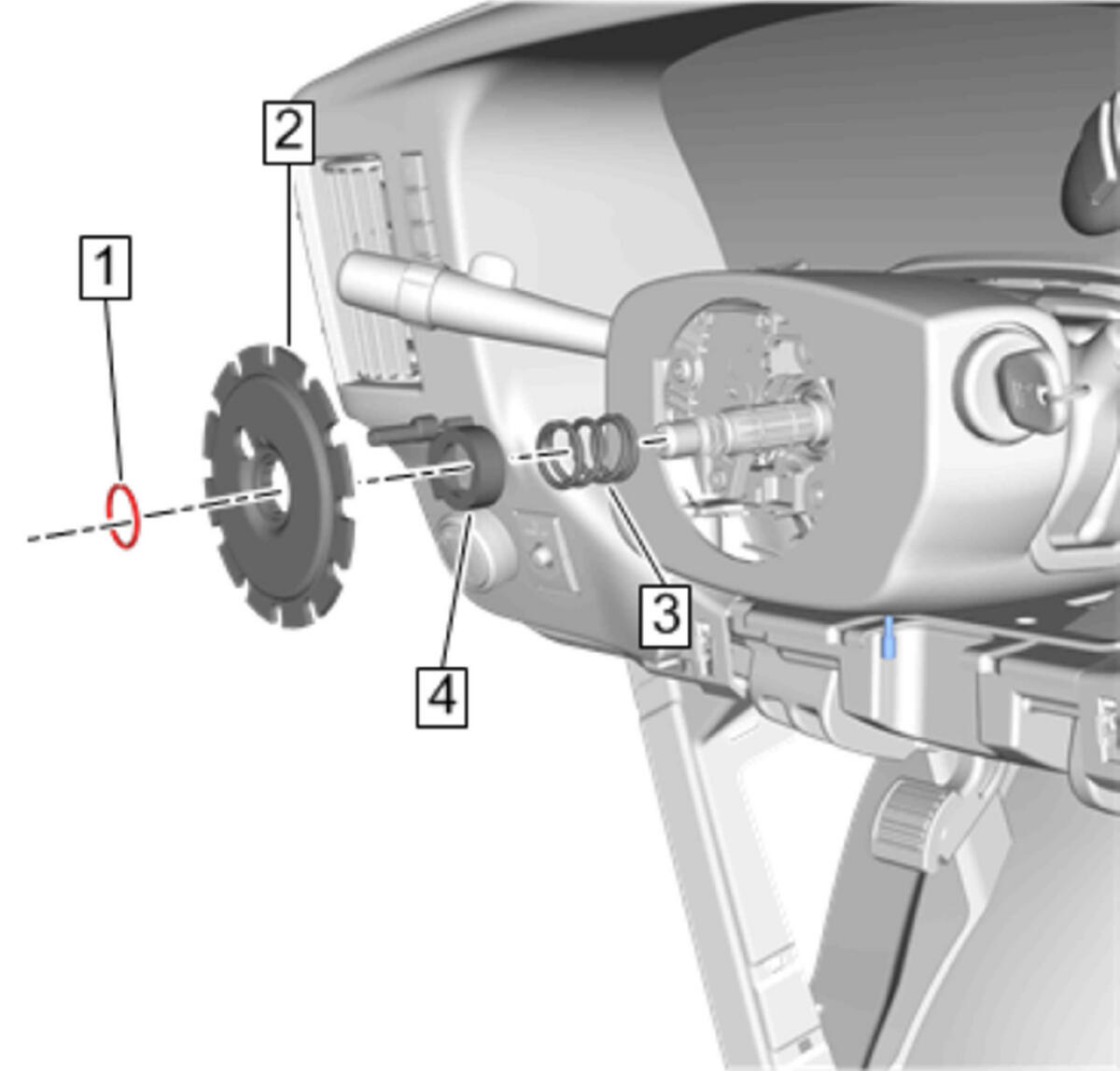

Use the CH-23653 - SIR Steering Column Lock Plate Compressor to remove the steering shaft lock plate retaining ring and Discard. (1)
- Steering Column Lock Plate (2) - Remove
- Turn Signal Cancel Cam (4) - Remove
- Steering Shaft Upper Bearing Spring (3) - Remove
