Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Airbag Steering Wheel Module - Remove - Airbag Steering Wheel Module Replacement

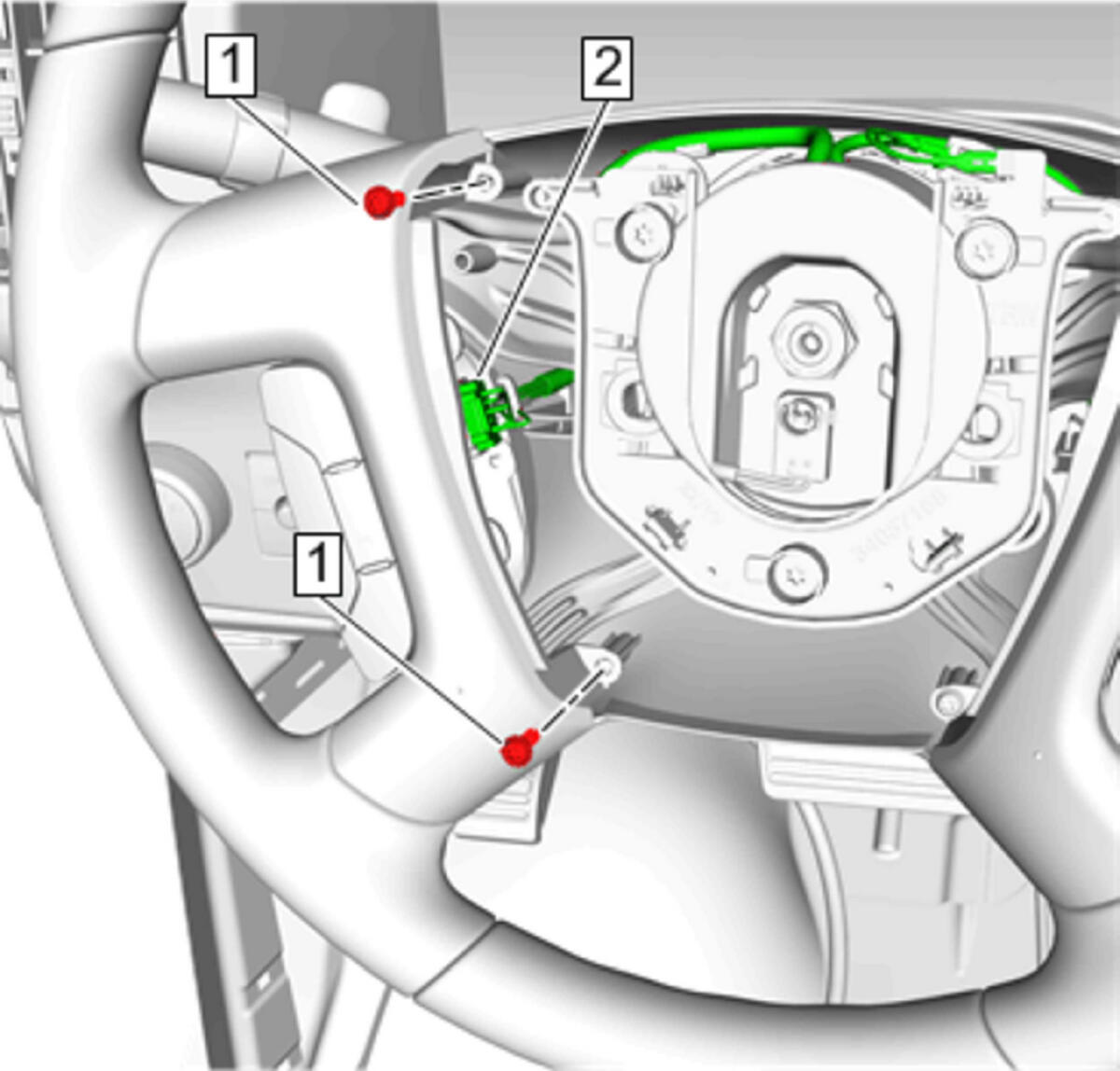

  2. GM4896192Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connectors and detach the wiring harness as necessary. (2)

  3. Steering Wheel Spoke Cover Fastener (1) - Remove [2x]
  4. GM4896198Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Spoke Lower Cover- Left Side (1) - Remove

  5. Transfer components as necessary.
