Steering Wheel Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

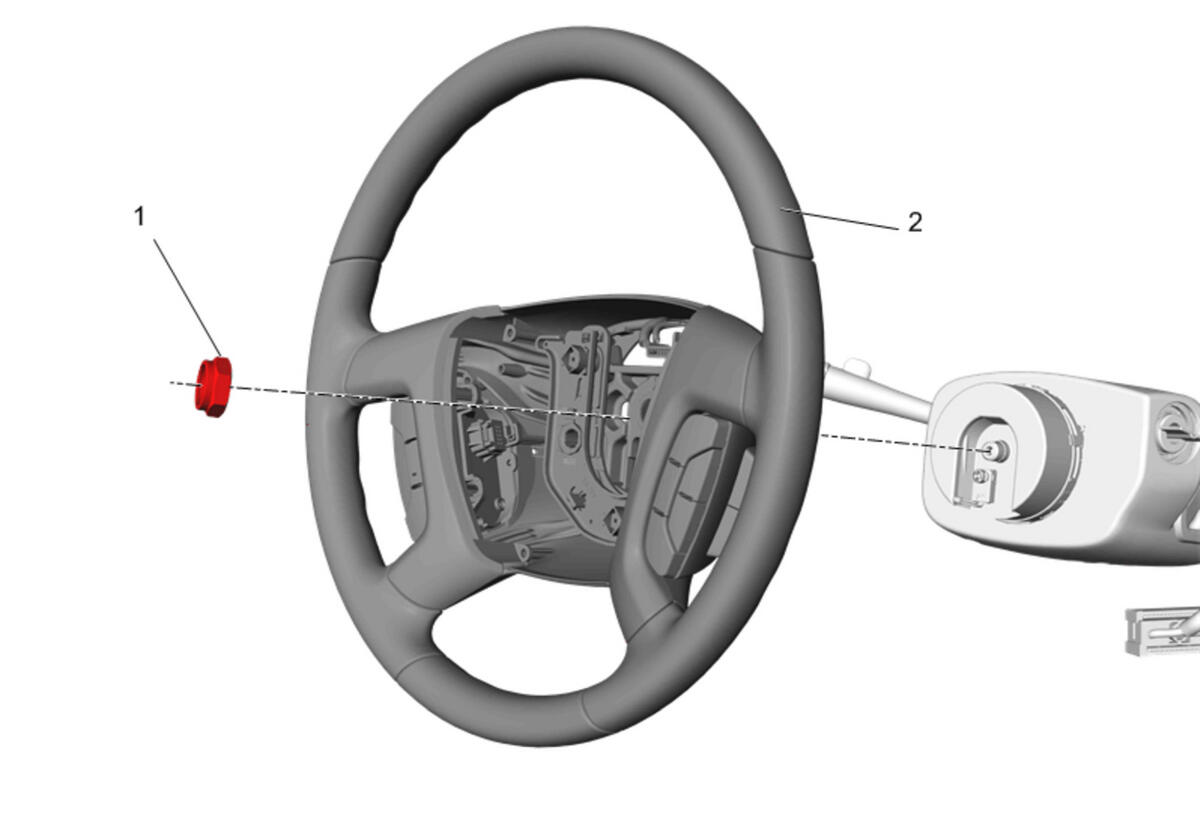

GM4840984Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

SIR Warning .

WARNING:

SIR Inflator Module Handling and Storage Warning .

Preliminary Procedure Airbag Steering Wheel Module Replacement
1 Steering Wheel Nut
CAUTION:

Fastener Caution .


Tighten
37 N.m (27 lb ft)
2 Steering Wheel

Procedure

  1. Disconnect the electrical connectors.
  2. Install the steering wheel nut until 2 to 3 threads are engaged.
  3. Wiggle the steering wheel until the wheel disengages completely.
  4. Steering Wheel Nut - Remove
  5. Steering Wheel - Remove
  6. Transfer components as necessary.
