Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Steering Shaft Lower Bearing (1) - Install
Courtesy of GENERAL MOTORS COMPANY

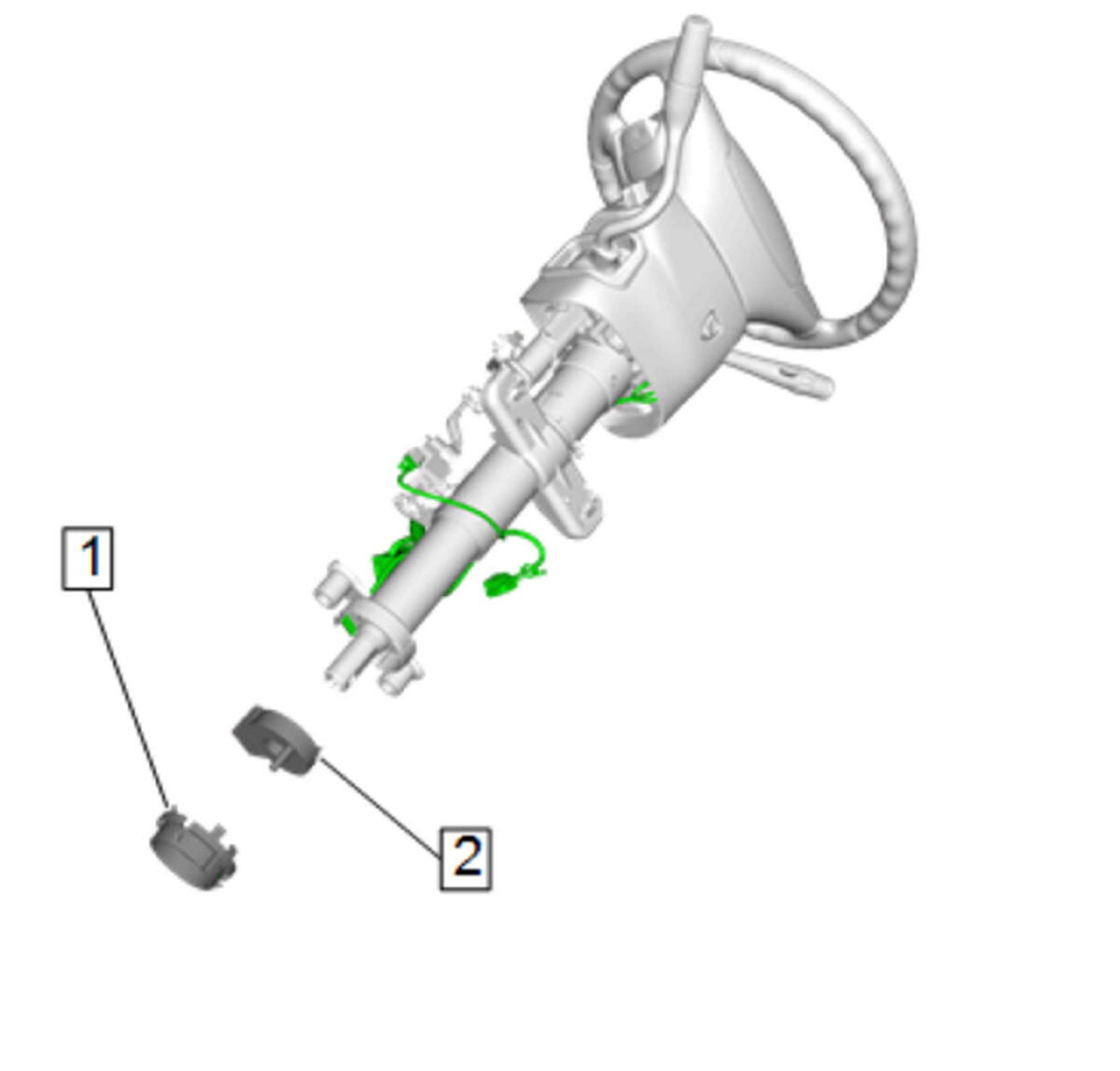

Steering Wheel Position Sensor (2) - Install
Install the Steering Wheel Position Sensor Retainer (1).
Courtesy of GENERAL MOTORS COMPANY

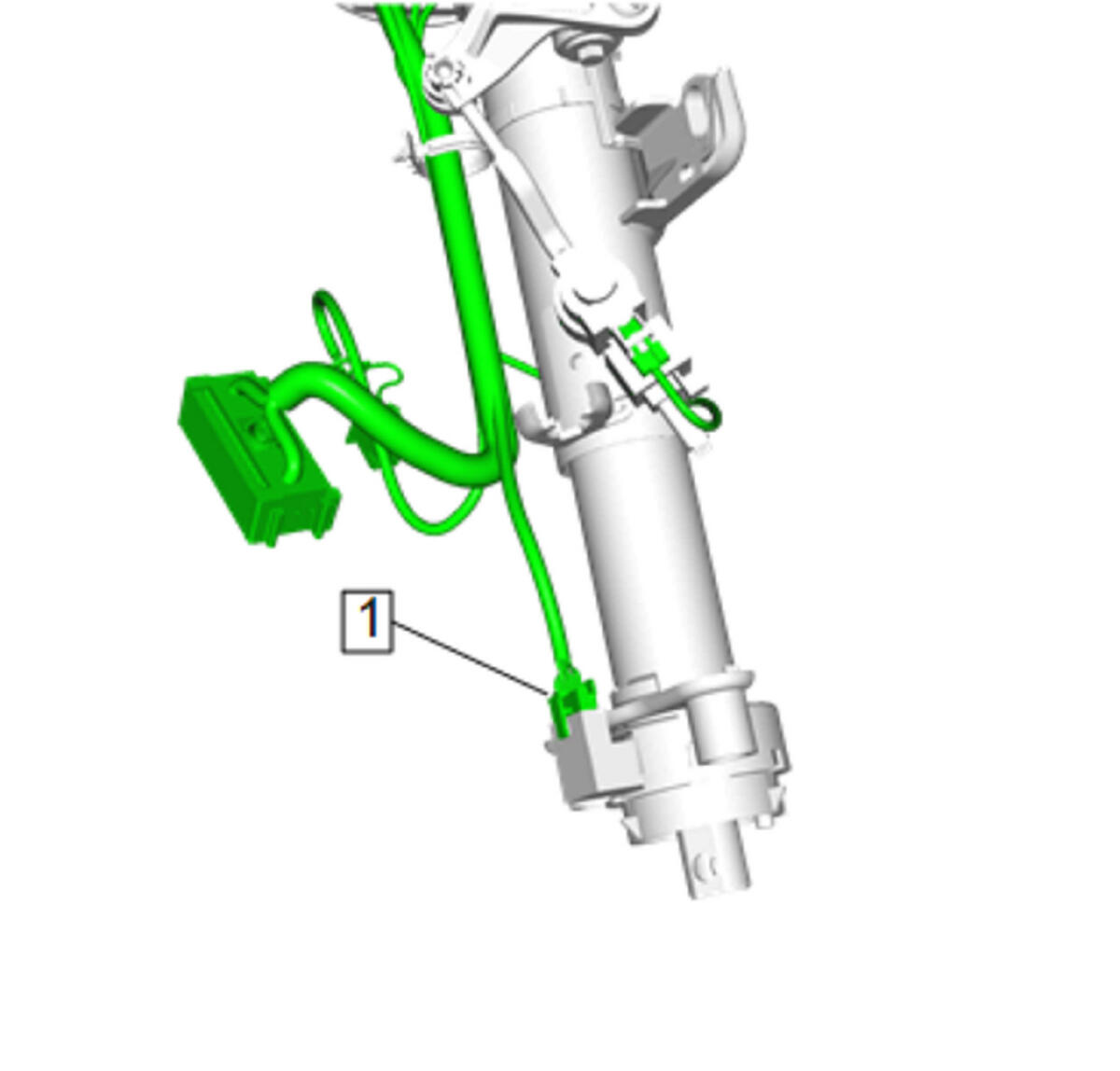

Electrical Connector (1) @ Steering Wheel Position Sensor - Connect
Courtesy of GENERAL MOTORS COMPANY

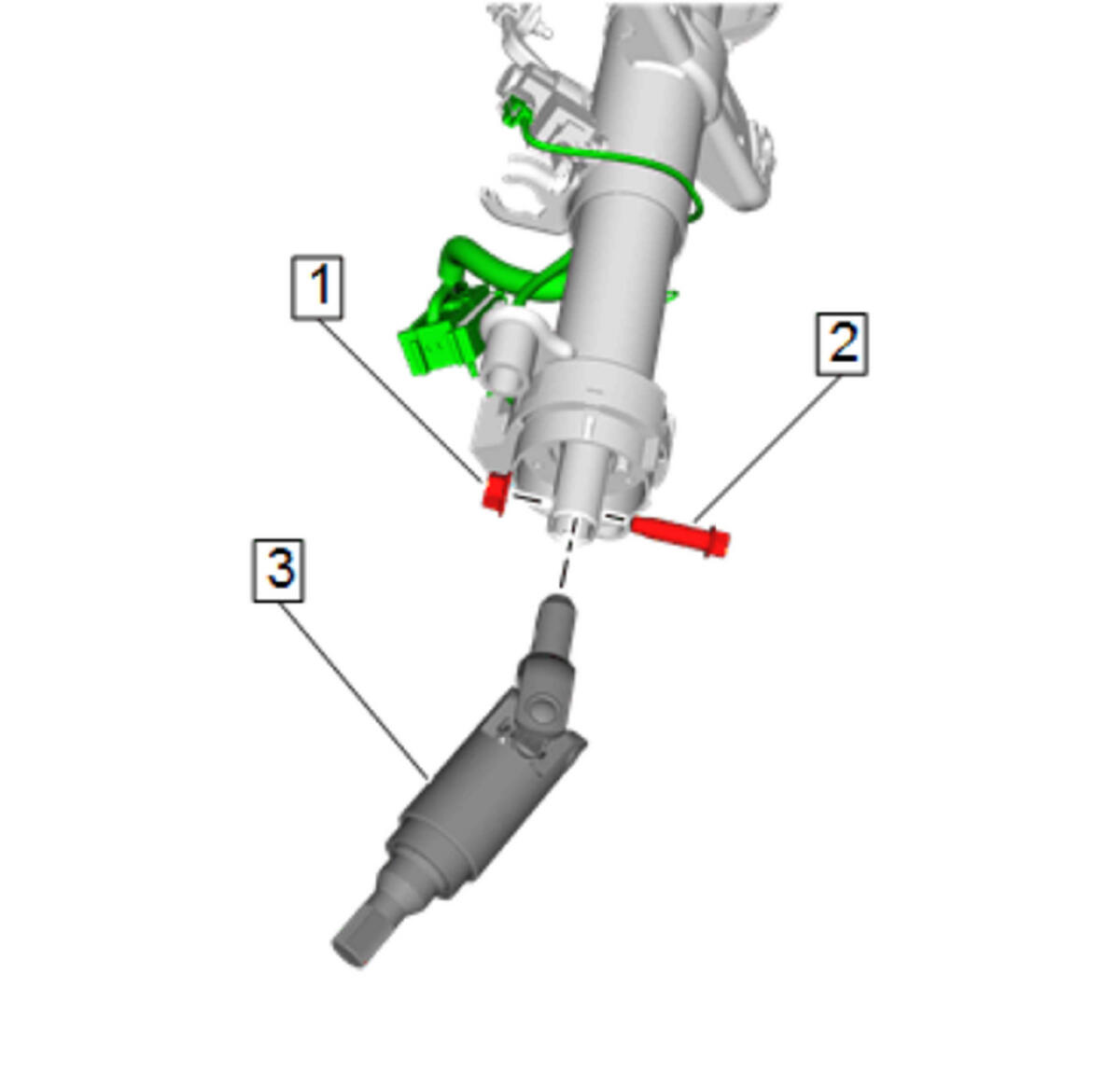

Upper Intermediate Steering Shaft (3) @ Steering Column - Install - Upper Intermediate Steering Shaft Replacement
Courtesy of GENERAL MOTORS COMPANY

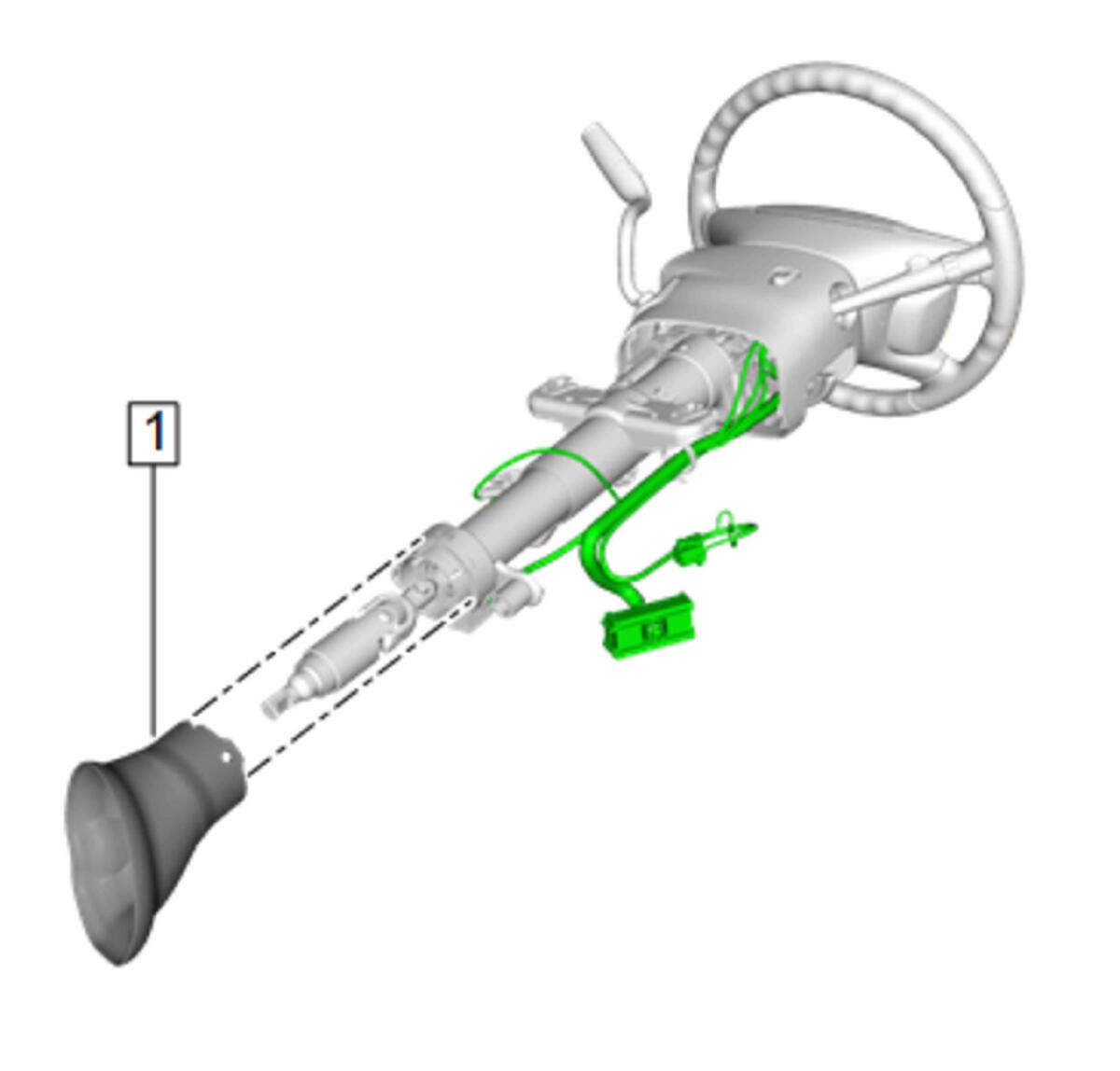

Install the Intermediate Steering Shaft Upper Seal (1)
Steering Column - Install - Steering Column Replacement
