Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

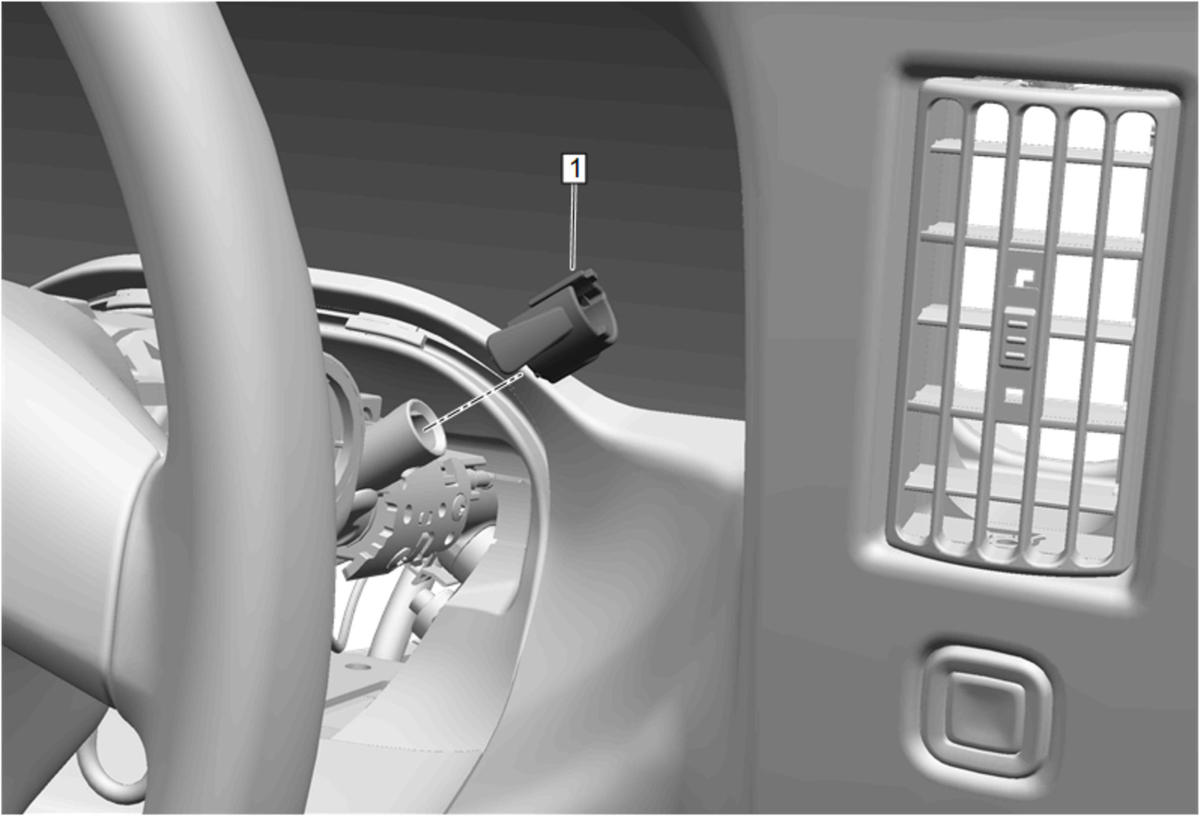

  1. GM5333234Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    If an automatic transmission control lever handle retainer (1) was not found during removal install a new retainer.

    Install the automatic transmission control lever handle retainer (1).

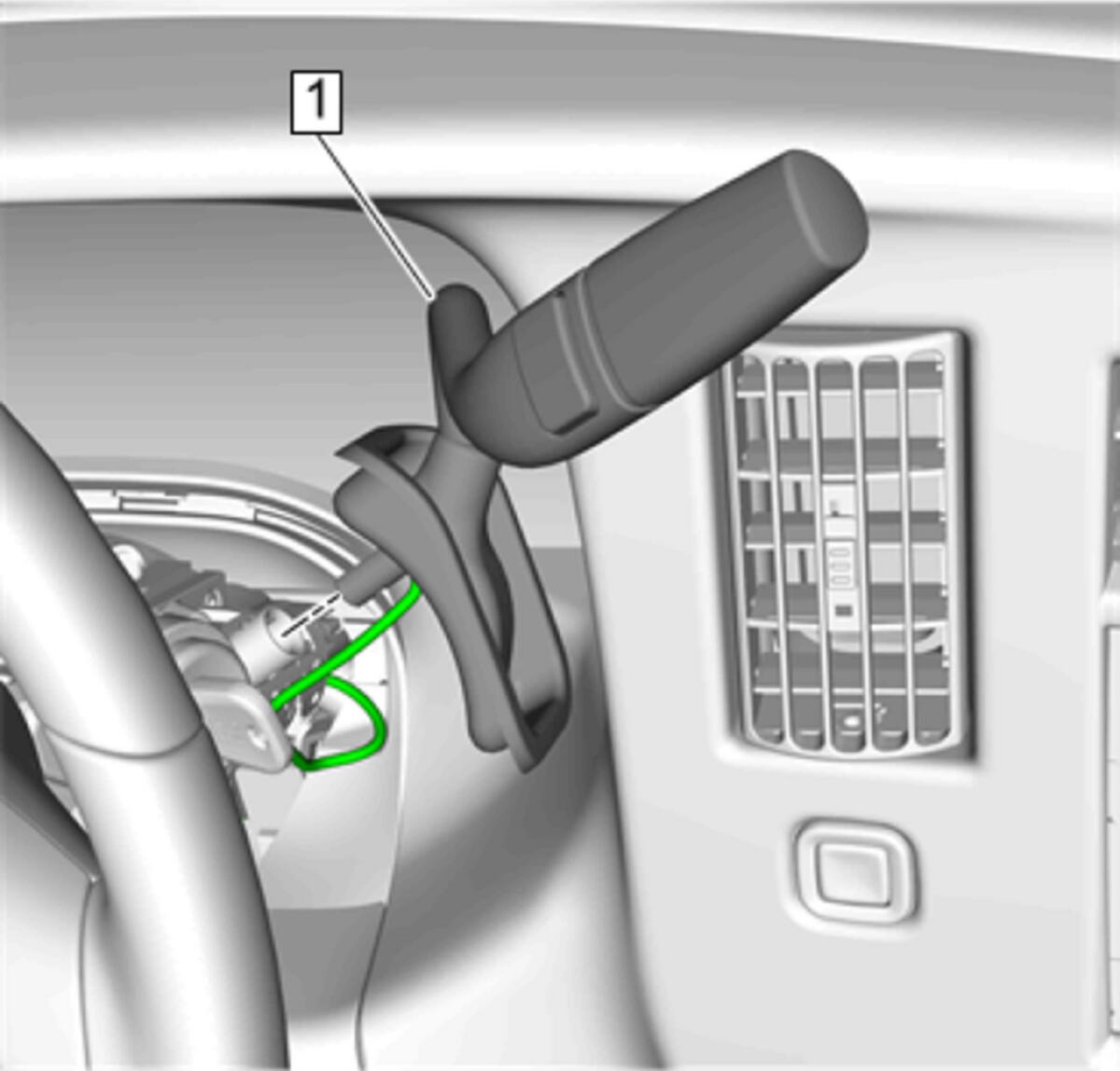

  2. GM4901908Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Control Lever (1) - Install

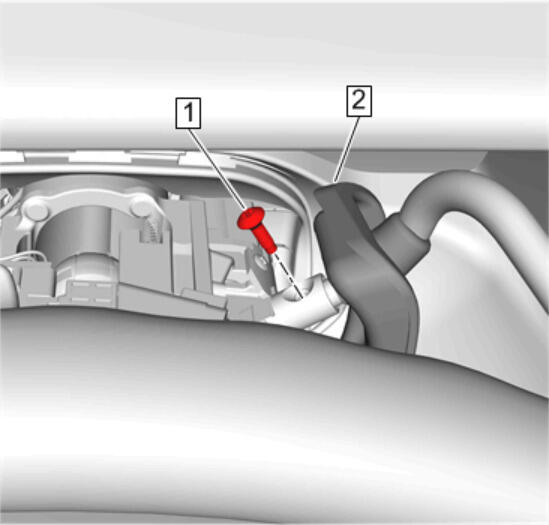

  3. GM4901903Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Automatic Transmission Control Lever Bolt (1) - Install and tighten 20 N.m (15 lb ft)

  4. Automatic Transmission Control Lever Seal (2) - Install
  5. Steering Column Trim Cover - Install - Steering Column Trim Cover Replacement
