Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

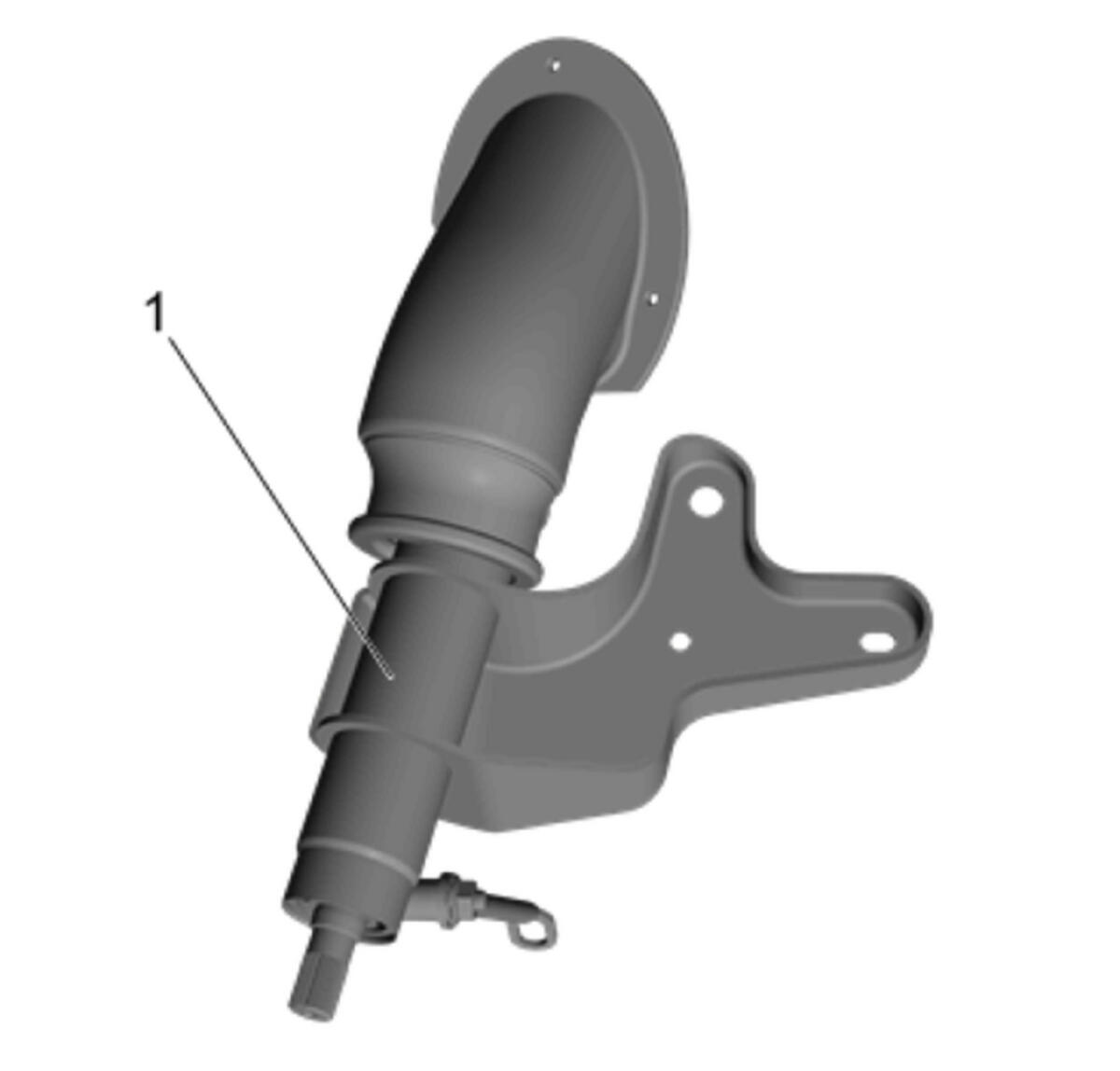

Intermediate Steering Shaft Bearing (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

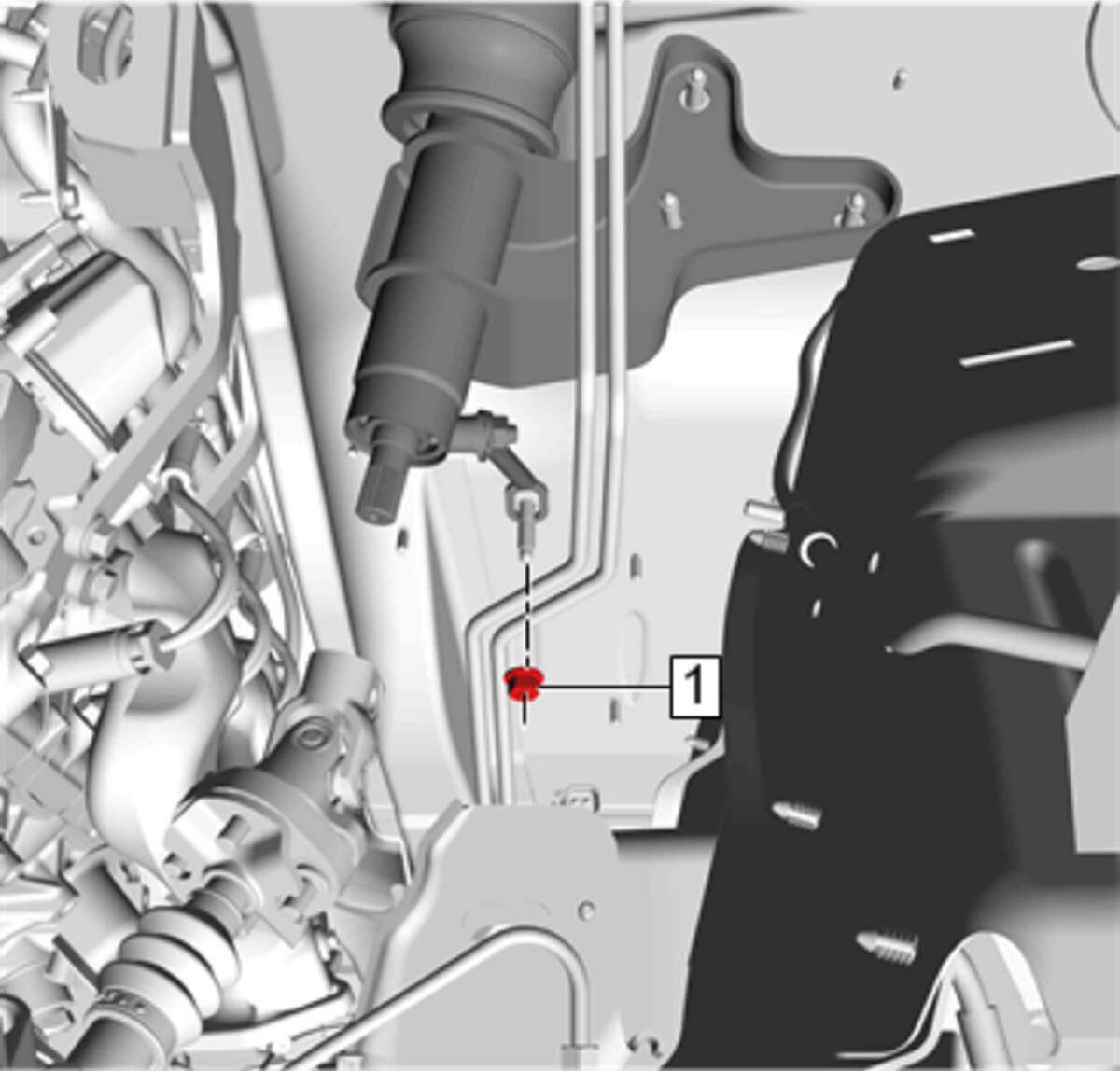

Intermediate Steering Shaft Bearing Brace Nut (1) - Install and tighten 30 N.m (22 lb ft).
Courtesy of GENERAL MOTORS COMPANY

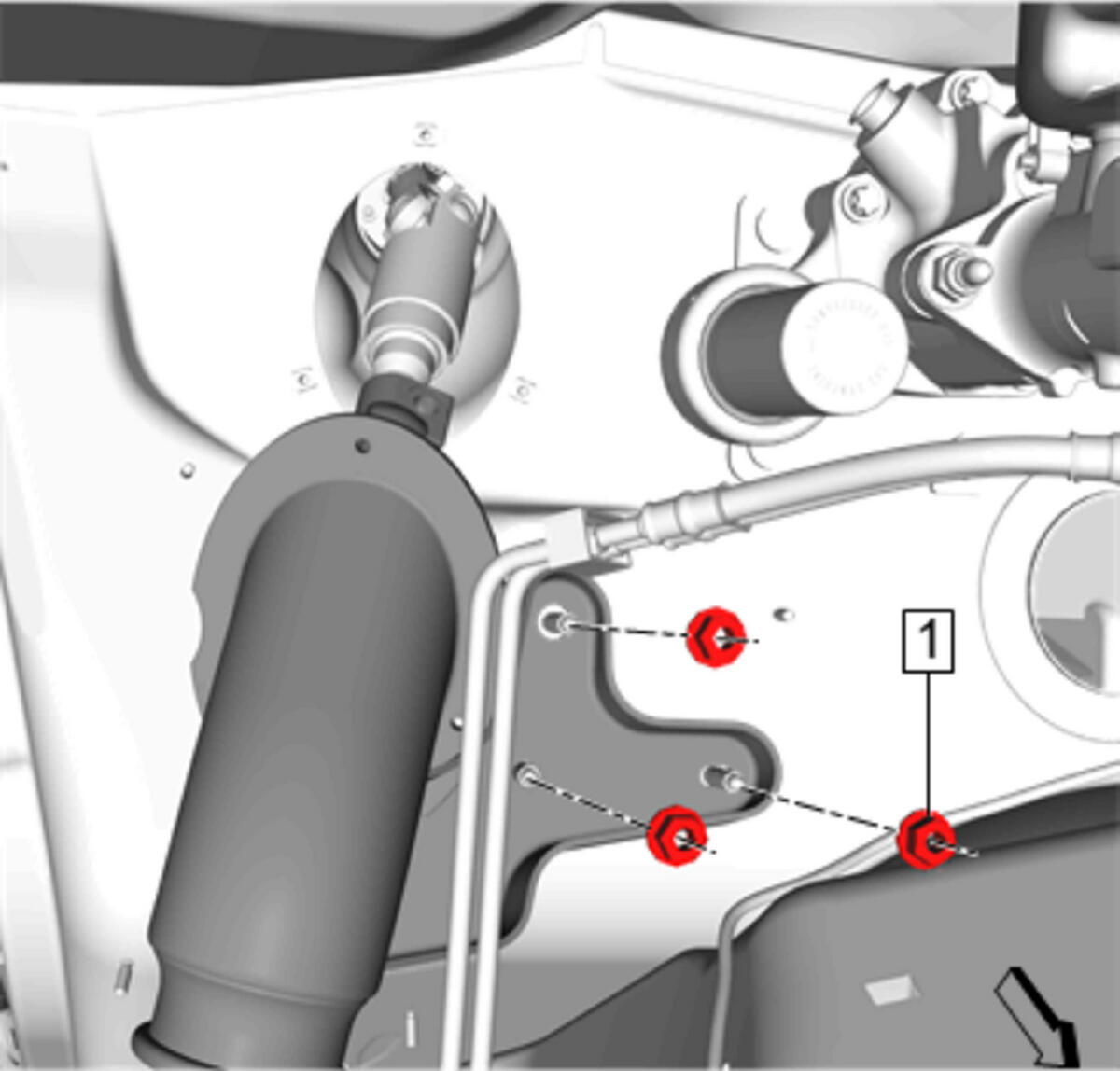

Intermediate Steering Shaft Bearing Nut (1) - Install and tighten 30 N.m (22 lb ft) [3x]
Courtesy of GENERAL MOTORS COMPANY

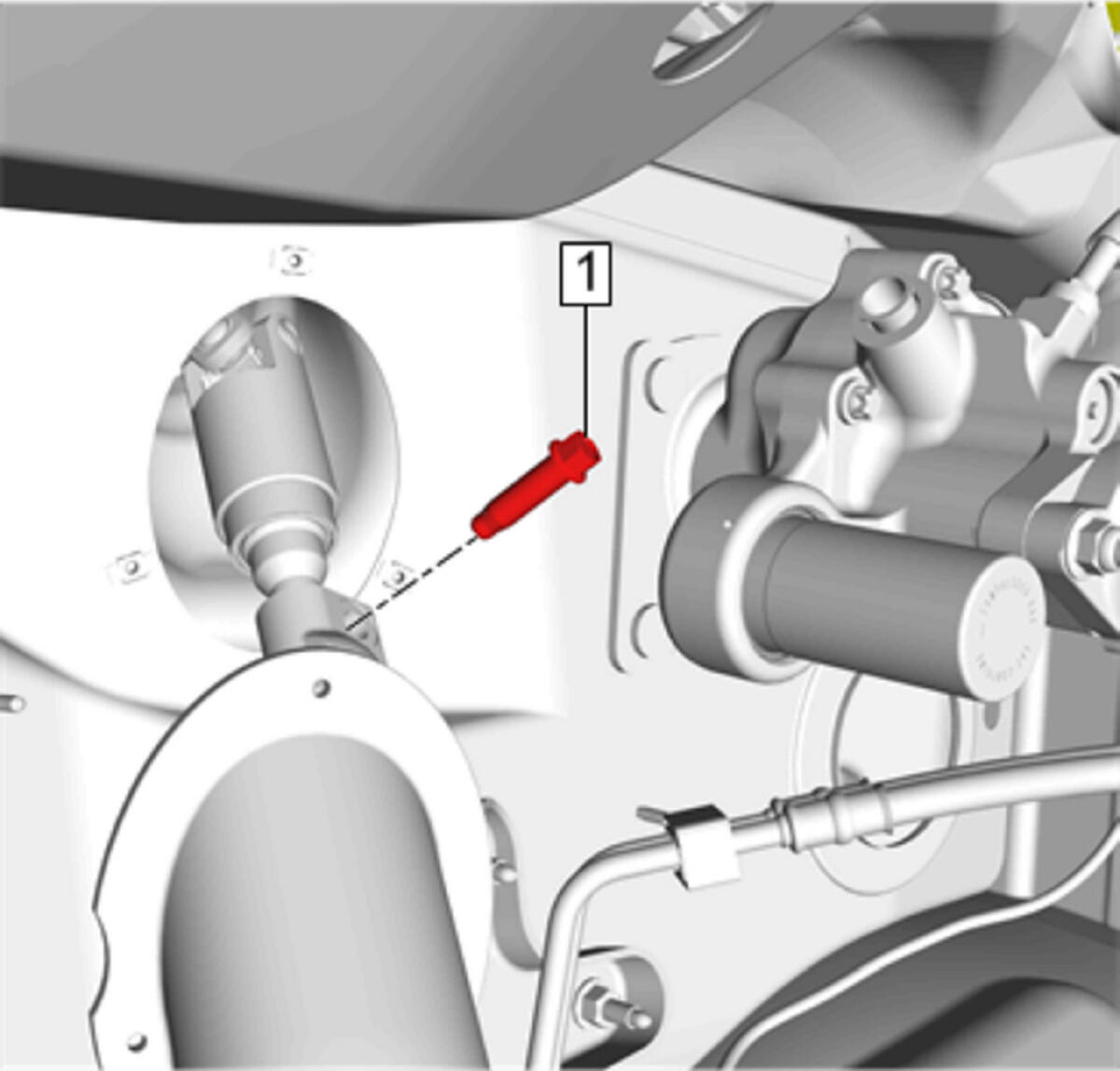

Intermediate Steering Shaft Upper Bolt (1) - Install and tighten 45 N.m (33 lb ft).
Courtesy of GENERAL MOTORS COMPANY

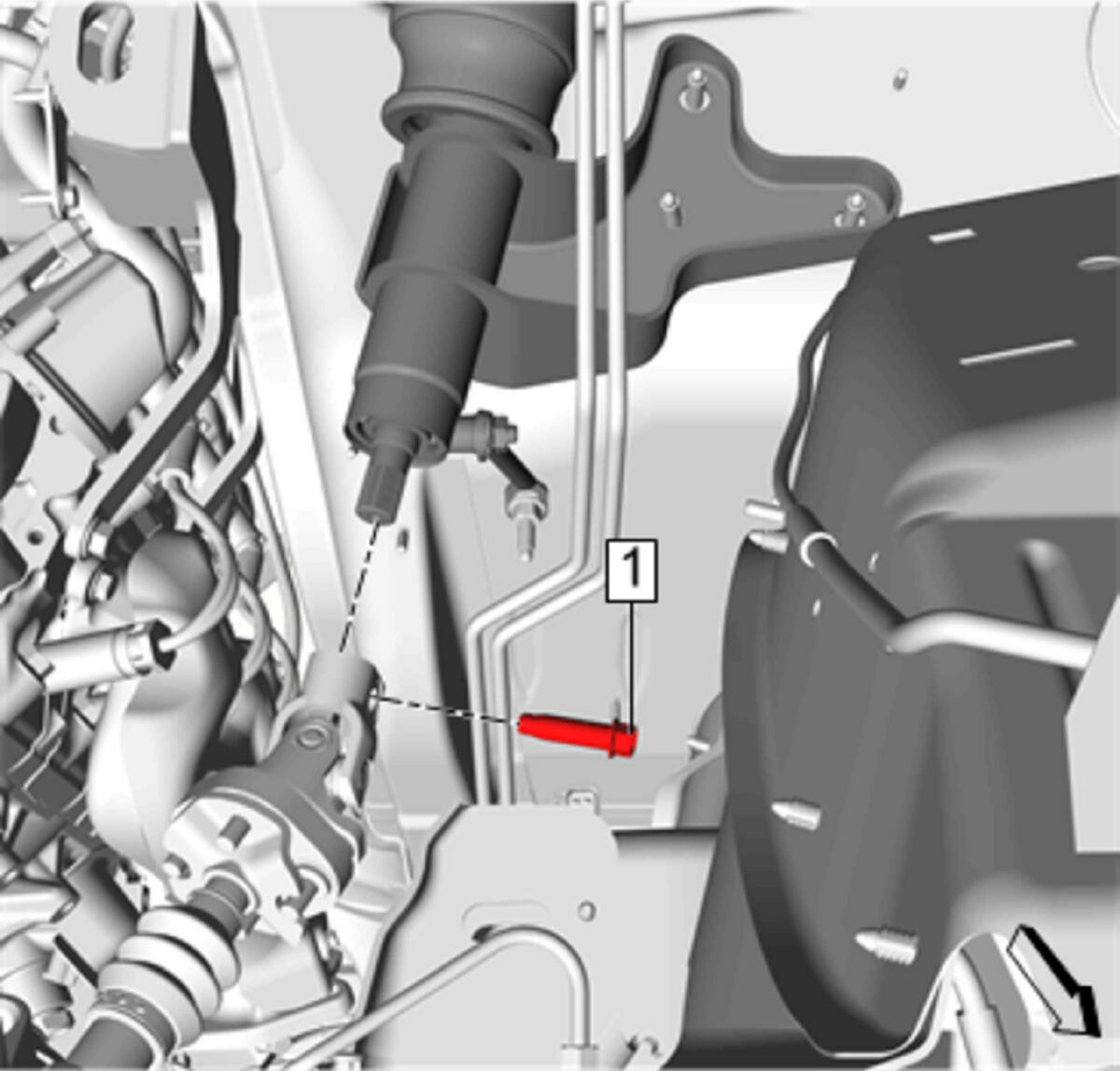

Install the lower intermediate steering shaft and bolt (1) to the intermediate steering shaft bearing. Lower Intermediate Steering Shaft Replacement
Courtesy of GENERAL MOTORS COMPANY

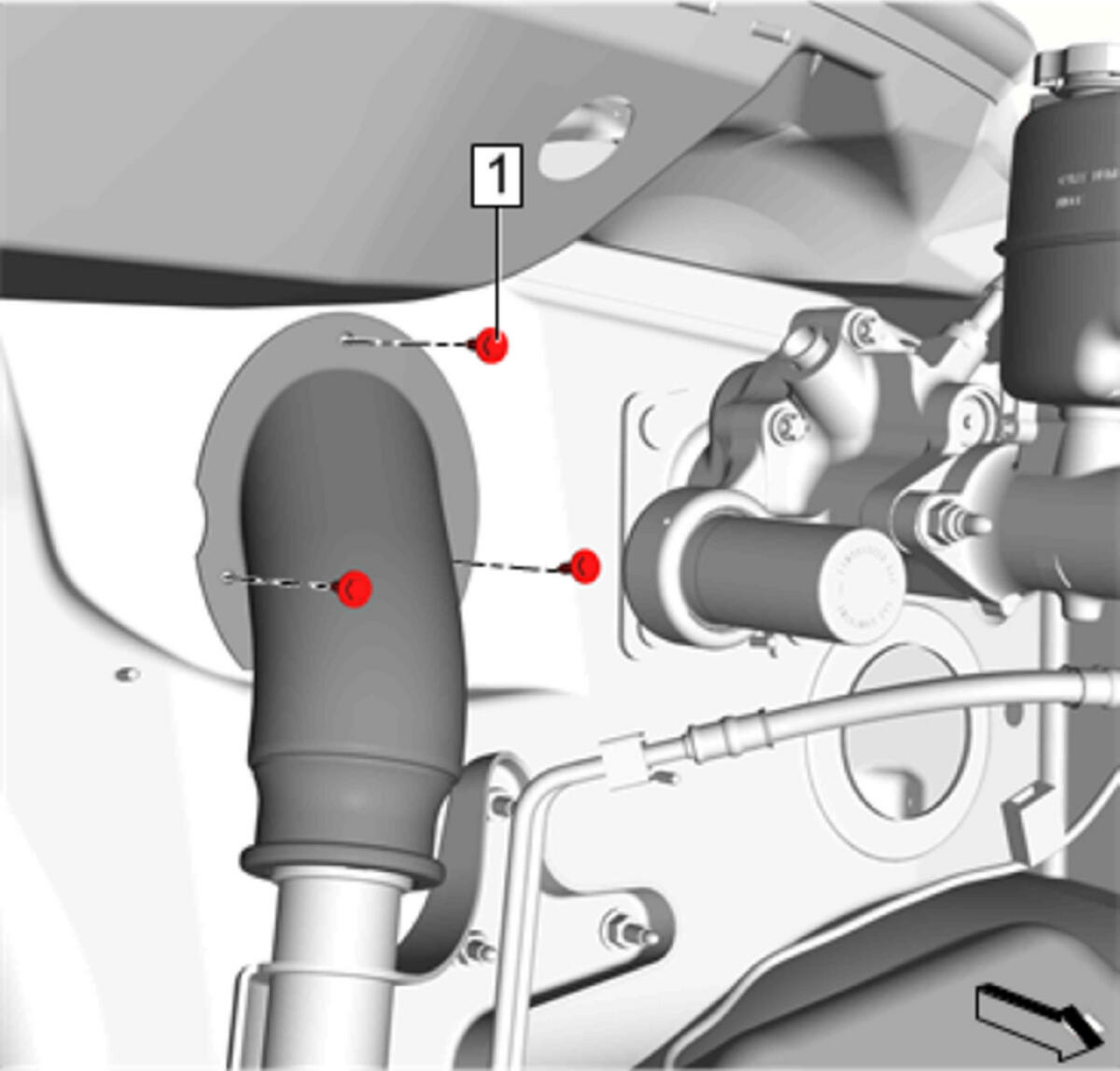

Steering Column Dash Cover Bolt (1) - Install and tighten 2 N.m (18 lb in) [3x]
Courtesy of GENERAL MOTORS COMPANY

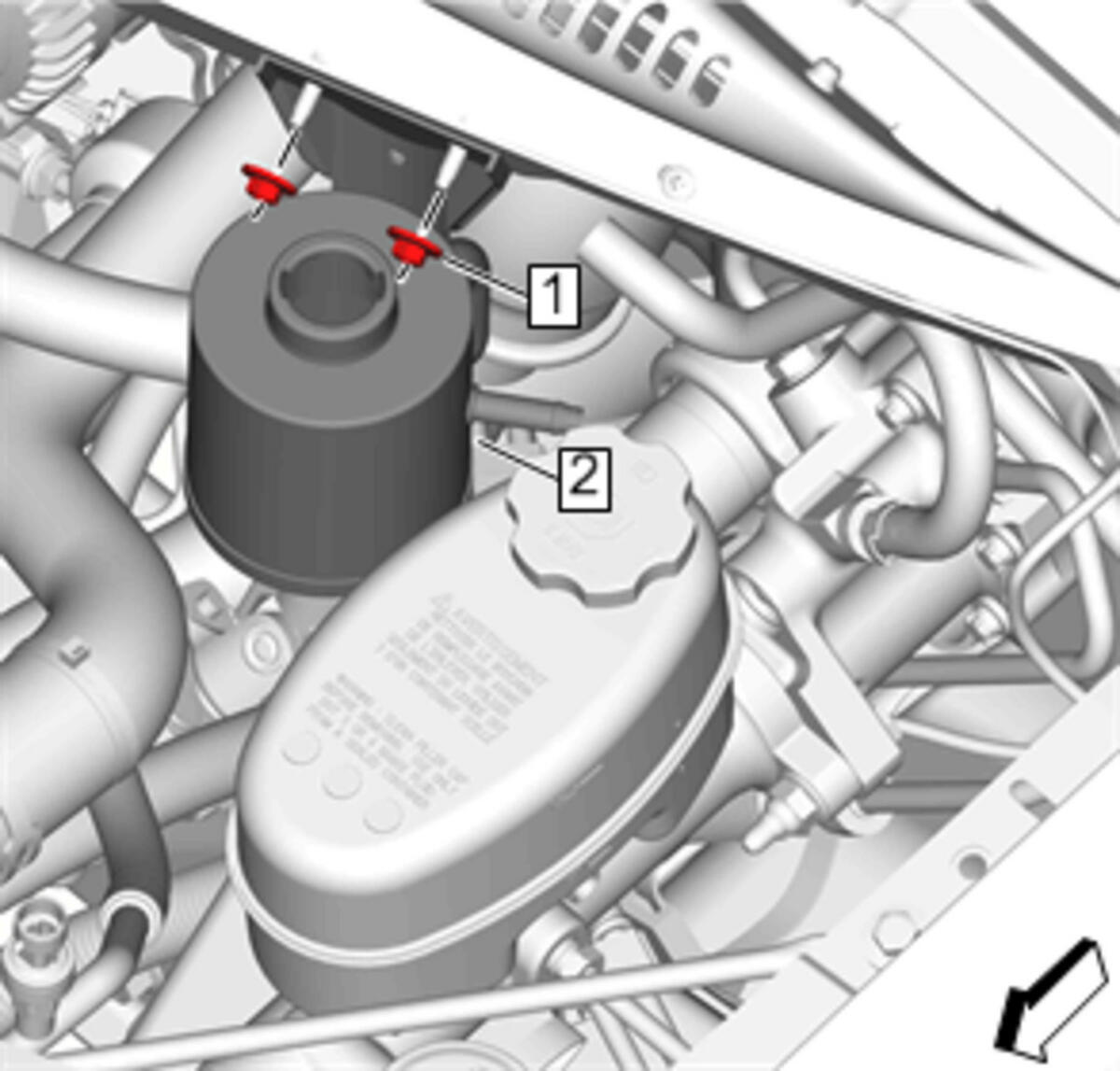

Power Steering Fluid Reservoir Nut (1) - Install [2x] - Power Steering Fluid Reservoir Replacement (With LWN) , or Power Steering Fluid Reservoir Replacement (Without LWN)
Courtesy of GENERAL MOTORS COMPANY

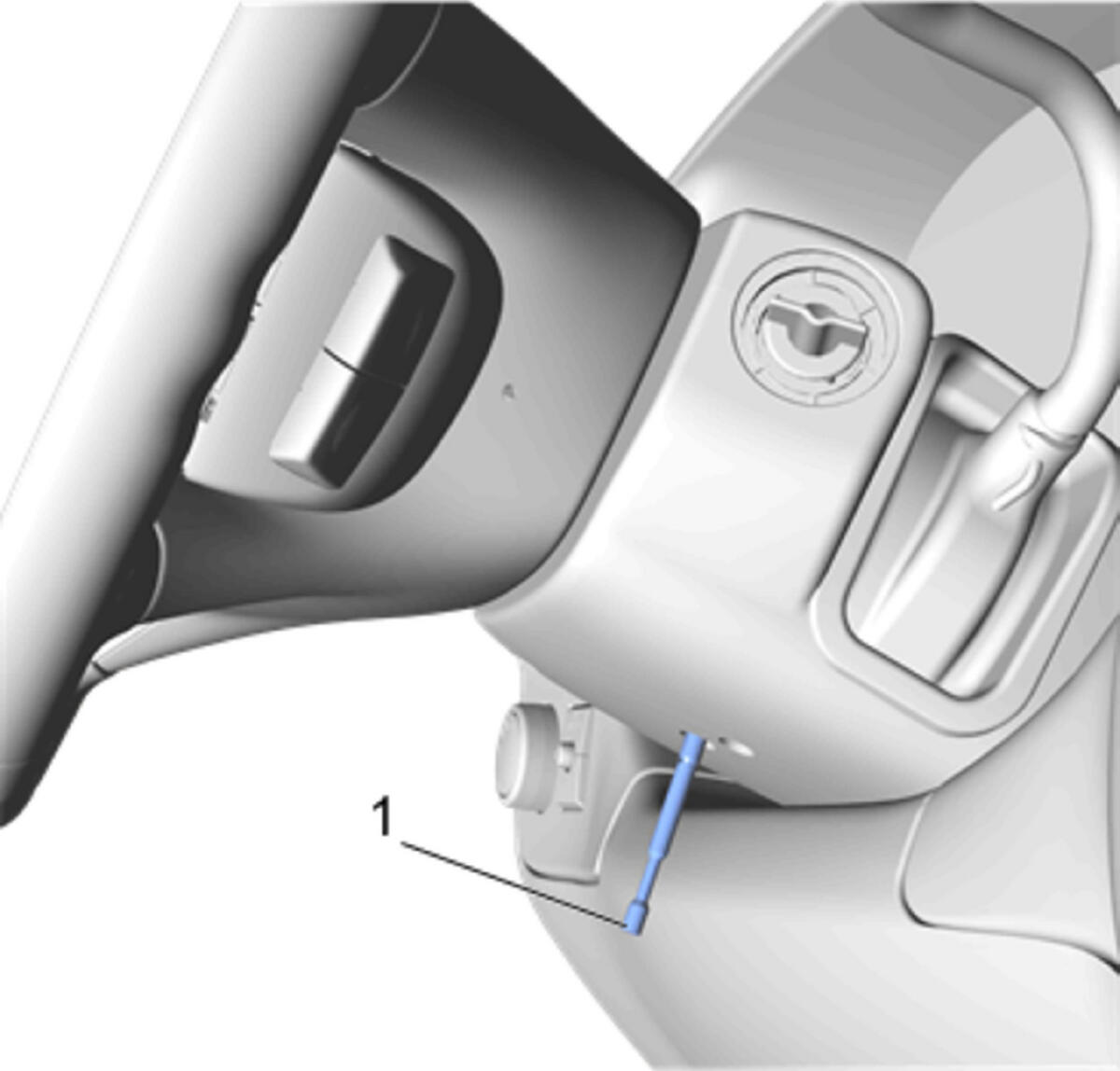

Remove the CH-42640 anti-rotation pin (1) from the steering column lower access hole.
