Tilt Column
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

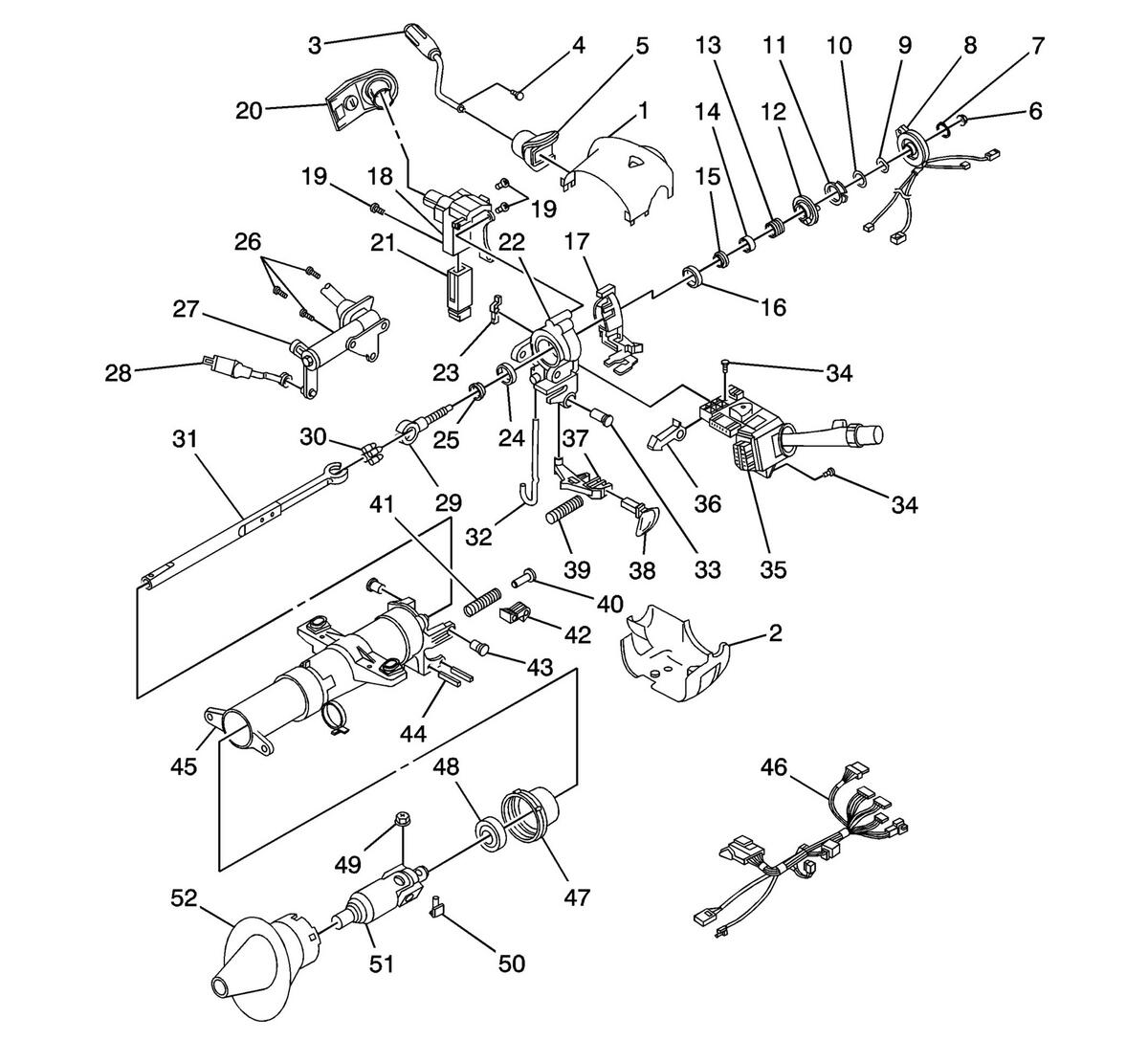

| Callout | Component Name |
|---|---|
| 1 | Upper Trim Cover |
| 2 | Lower Trim Cover |
| 3 | Shift Lever |
| 4 | Shift Lever Screw |
| 5 | Shift Lever Seal |
| 6 | Flange Prevailing Torque Nut |
| 7 | Retaining Ring |
| 8 | Inflatable Restraint Steering Wheel Module Coil |
| 9 | Wave Washer |
| 10 | Bearing Retainer |
| 11 | Cam Orientation Plate |
| 12 | Turn Signal Cancel Cam Assembly |
| 13 | Upper Bearing Spring |
| 14 | Upper Bearing Inner Race Seat |
| 15 | Inner Race |
| 16 | Bearing Assembly |
| 17 | Switch Mounting Bracket |
| 18 | Ignition Lock Cylinder Case |
| 19 | TORX Head Screws |
| 20 | Coded Key Controller |
| 21 | Ignition Switch Assembly |
| 22 | Steering Column Tilt Head Assembly |
| 23 | Tilt Bumper |
| 24 | Bearing Assembly |
| 25 | Inner Race |
| 26 | TORX Head Screw |
| 27 | Linear Shift Assembly |
| 28 | Electrical Actuator |
| 29 | Race and Upper Shaft Assembly |
| 30 | Centering Sphere |
| 31 | Lower Steering Shaft Assembly |
| 32 | Anti-rotation Pin |
| 33 | Shoe Pivot Pin |
| 34 | Pan Head Tapping Screw |
| 35 | Turn Signal and Multifunction Switch Assembly |
| 36 | Steering Wheel Lock Shoe |
| 37 | Shoe Release Lever Assembly |
| 38 | Tilt Knob |
| 39 | Compression Spring |
| 40 | Spring Guide |
| 41 | Tilt Spring |
| 42 | Steering Wheel Lock Support Shoe |
| 43 | Pivot Pin |
| 44 | Spring Pin |
| 45 | Steering Column Jacket Assembly |
| 46 | Wire Harness Assembly |
| 47 | Adapter and Bearing Assembly |
| 48 | Bearing Assembly |
| 49 | Hex Head Nut |
| 50 | Pinch Bolt |
| 51 | Intermediate Shaft |
