Standard Column
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

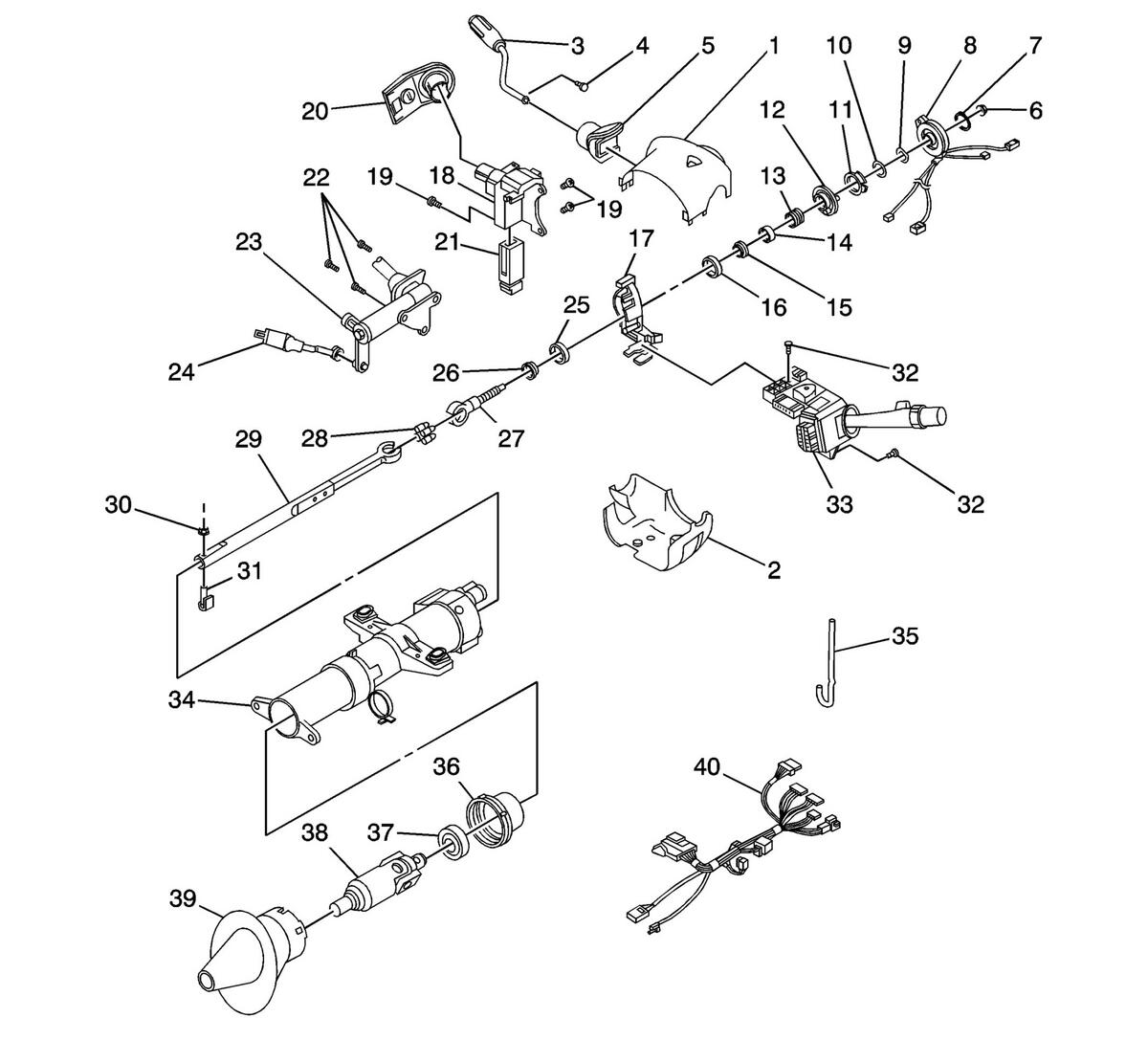

| Callout | Component Name |
|---|---|
| 1 | Upper Trim Cover |
| 2 | Lower Trim Cover |
| 3 | Shift Lever |
| 4 | Shift Lever Screw |
| 5 | Shift Lever Seal |
| 6 | Flange Prevailing Torque Nut |
| 7 | Retaining Ring |
| 8 | Inflatable Restraint Steering Wheel Module Coil |
| 9 | Wave Washer |
| 10 | Bearing Retainer |
| 11 | Cam Orientation Plate |
| 12 | Turn Signal Cancel Cam Assembly |
| 13 | Upper Bearing Spring |
| 14 | Upper Bearing Inner Race Seat |
| 15 | Inner Race |
| 16 | Bearing Assembly |
| 17 | Switch Mounting Bracket |
| 18 | Ignition Lock Cylinder Case |
| 19 | TORX Head Screws |
| 20 | Coded Key Controller |
| 21 | Ignition Switch Assembly |
| 22 | TORX Head Screw |
| 23 | Linear Shift Assembly |
| 24 | Electrical Actuator |
| 25 | Bearing Assembly |
| 26 | Inner Race |
| 27 | Race and Upper Shaft Assembly |
| 28 | Centering Sphere |
| 29 | Lower Steering Shaft Assembly |
| 30 | Hex Head Nut |
| 31 | Pinch Bolt |
| 32 | Pan Head Tapping Screw |
| 33 | Turn Signal and Multifunction Switch Assembly |
| 34 | Steering Column Jacket Assembly |
| 35 | Anti-rotation Pin |
| 36 | Adapter and Bearing Assembly |
| 37 | Bearing Assembly |
| 38 | Intermediate Shaft |
| 39 | Inner Boot Seal |
| 40 | Wire Harness Assembly |
